ADP196

Data Sheet

Rev. 0 | Page 8 of 12

CH1 20mA

Ω

CH2 1V

M1ms

A CH2

1.18V

T 10.6%

CH3 1V BW

VOUT

INPUT CURRENT

ENABLE

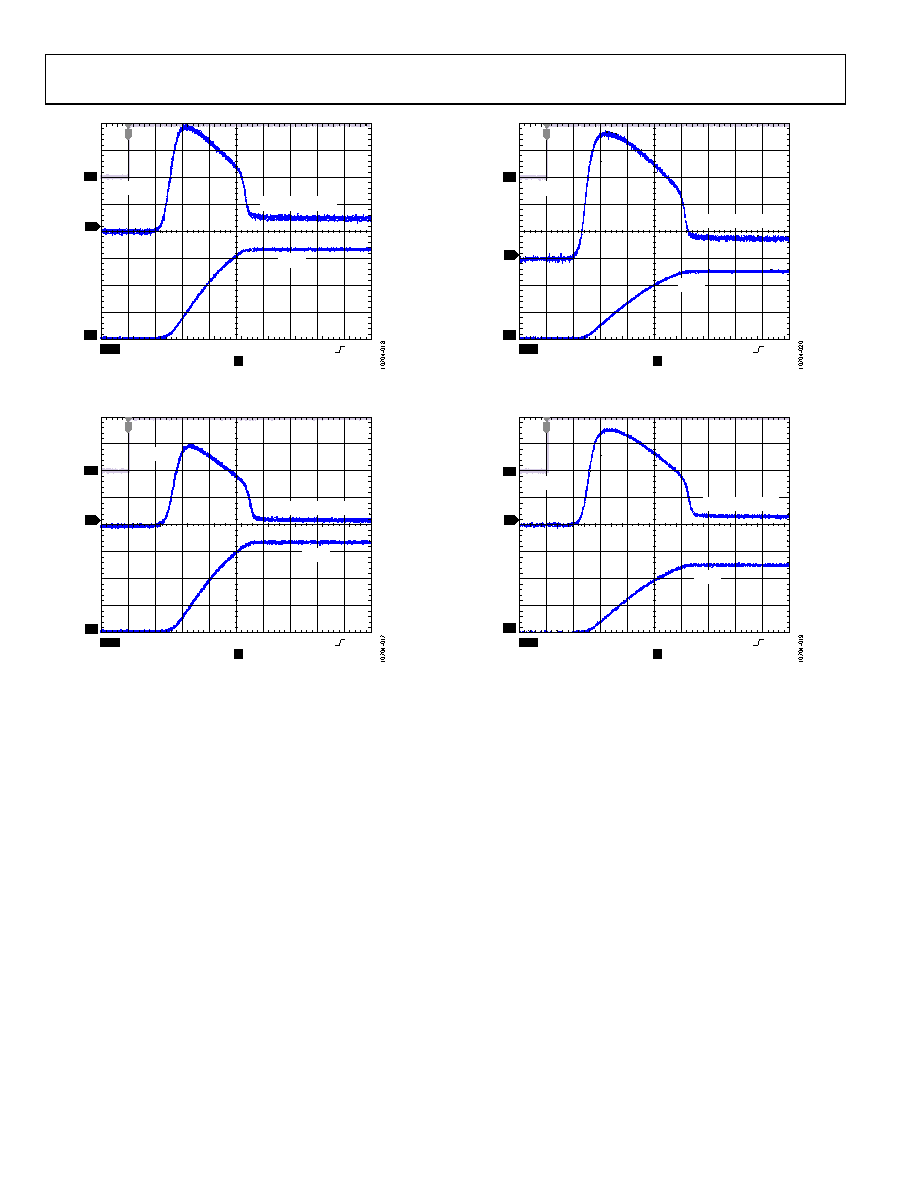

Figure 17. Typical Turn-On Time and Inrush Current, VIN = 3.3 V,

COUT = 47 μF, 330 Ω Load

CH1 50mA

Ω

CH2 1V

M1ms

A CH2

1.18V

T 10.6%

CH3 1V BW

VOUT

INPUT CURRENT

ENABLE

Figure 18. Typical Turn-On Time and Inrush Current, VIN = 3.3 V,

COUT = 100 μF, 330 Ω Load

CH1 20mA

Ω

CH2 1V

M1ms

A CH2

1.18V

T 10.6%

CH3 2V BW

VOUT

INPUT CURRENT

ENABLE

Figure 19. Typical Turn-On Time and Inrush Current, VIN = 5 V,

COUT = 47 μF, 330 Ω Load

CH1 50mA

Ω

CH2 1V

M1ms

A CH2

1.18V

T 10.6%

CH3 2V BW

VOUT

INPUT CURRENT

ENABLE

Figure 20. Typical Turn-On Time and Inrush Current, VIN = 5 V,

COUT = 100 μF, 330 Ω Load
