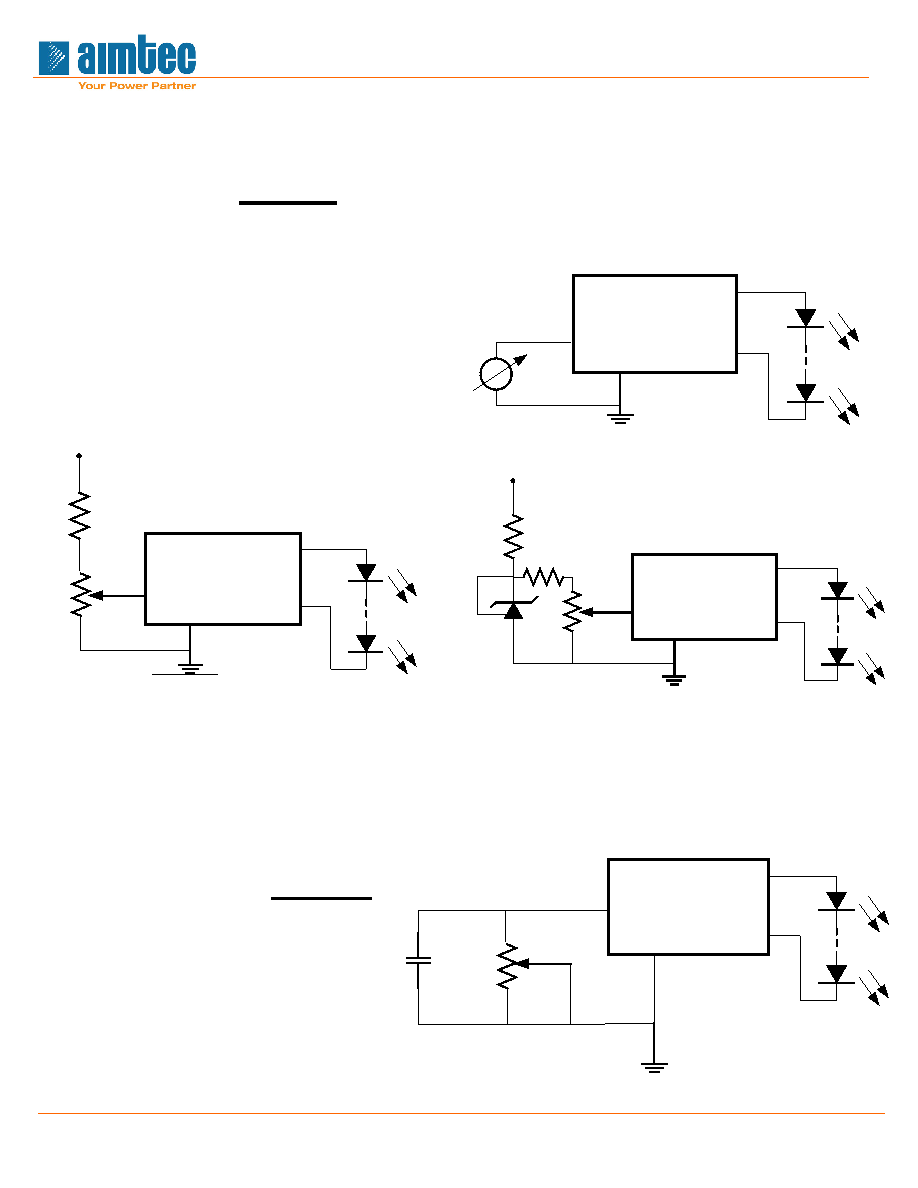

Output Current Adjustment by External DC Control Voltage:

Resistive Dimming Control

A simplified dimming control can be achieved using a variable resistor connected between VADJ and GND. Capacitor CADJ

is optional, it is installed to limit AC mains interference and high frequency noise. The recommended value of CADJ is

0.22µF.

Ioutnom= Iout x Radj

Radj + 200K

The nominal output current is given by:

NOTE: Typical error is ±10% with resistive dimming control

AMLDL-RZ

-Vin

VADJ

Last LED

+Vout

1

1

-Vout

0.3 -1.25V

GND

AMLDL-RZ

-Vin

VADJ

+Vout

1

1

-Vout

+Vin

1

TL431

10K

10K

10K

VADJ =

R2

AMLDL-RZ

-Vin

VADJ

+Vout

1

1

-Vout

+5v

10K

30K

R2

R1

Vctrl

AMLDL-RZ

-Vin

VADJ

+Vout

1

1

-Vout

RADJ

CADJ

The nominal output current is given by:

Vadj

1.25

Iout

Ioutnom =
