DRA127-R47-R 데이터시트(PDF) 4 Page - Cooper Bussmann, Inc.

부품명 DRA127-R47-R
상세설명  High Power Density, High Efficiency, Shielded Inductors
PDF  8 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  COOPER [Cooper Bussmann, Inc.]
홈페이지  http://www.cooperbussmann.com
Logo COOPER - Cooper Bussmann, Inc.

DRA127-R47-R 데이터시트(HTML) 4 Page - Cooper Bussmann, Inc.

  DRA127-R47-R Datasheet HTML 1Page - Cooper Bussmann, Inc. DRA127-R47-R Datasheet HTML 2Page - Cooper Bussmann, Inc. DRA127-R47-R Datasheet HTML 3Page - Cooper Bussmann, Inc. DRA127-R47-R Datasheet HTML 4Page - Cooper Bussmann, Inc. DRA127-R47-R Datasheet HTML 5Page - Cooper Bussmann, Inc. DRA127-R47-R Datasheet HTML 6Page - Cooper Bussmann, Inc. DRA127-R47-R Datasheet HTML 7Page - Cooper Bussmann, Inc. DRA127-R47-R Datasheet HTML 8Page - Cooper Bussmann, Inc.
Zoom Inzoom in Zoom Outzoom out
 4 / 8 page
background image
TOP VIEW
BOTTOM VIEW
FRONT VIEW
13.8
SCHEMA TIC
2
1
RECOMMENDED PCB LAYOUT
3.85
5.5
DRA127
###
wwllyy R
8.0
Max
12.50
Max
12.50
Max
2.50
5.00
2
1
TOP VIEW
BOTTOM VIEW
FRONTVI EW
13.8
SCHEMATIC
2
1
RECOMMENDED PCBLAYOUT
3.85
5.5
DRA125
###
wwllyy R
6.0
Max
12.50
Max
12.50
Max
2.50
5.00
1
2
TOP VIEW
BOTTOM VIEW
FRONT VIEW
2
1
RECOMMENDED PCBLAYOUT
DRA124
###
wwllyy R
4.5
Max
12.50
Max
12.50
Max
2.50
5.00
5.5
3.85
13.8
1
2

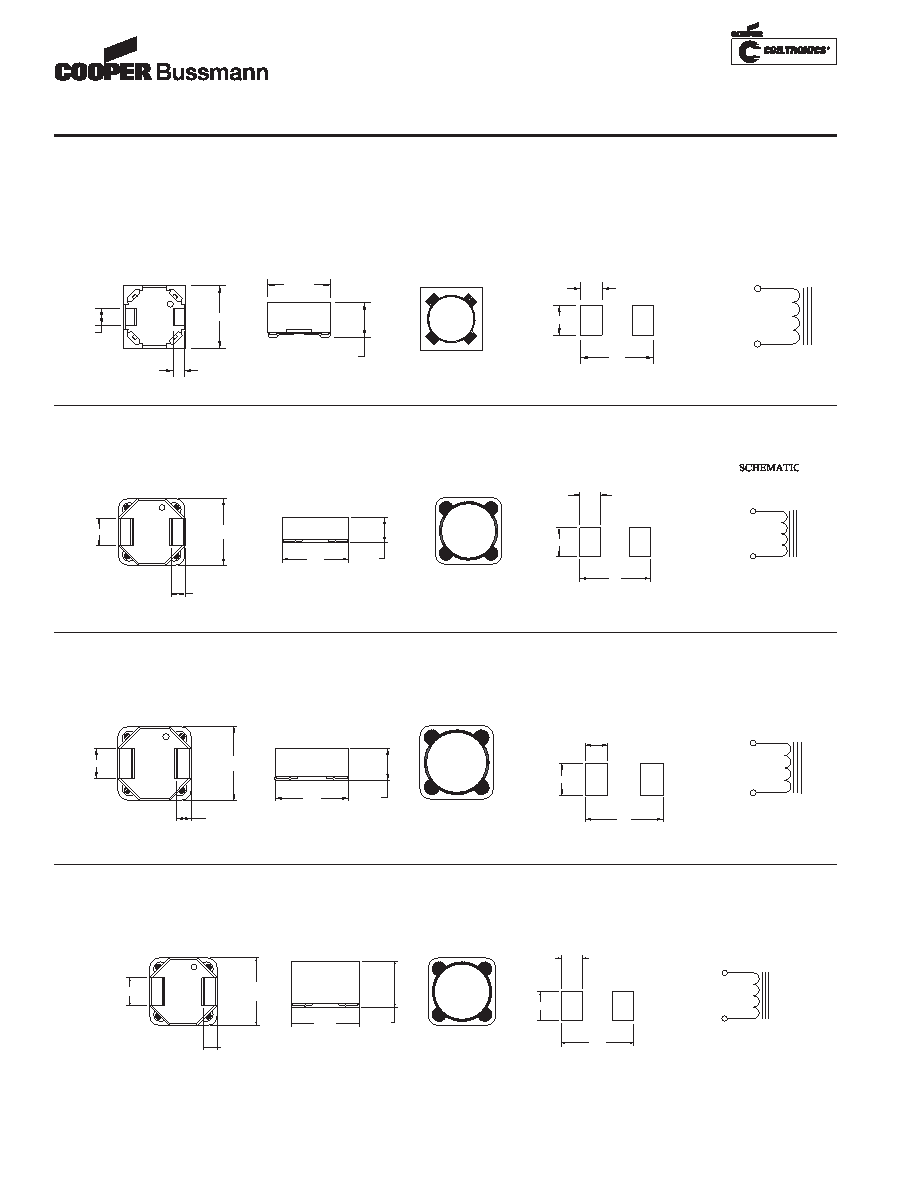

Mechanical Diagrams
DRA74 Series
TOP VIEW
BOTTOM VIEW
7.6 Max
7.6 Max
FRONT VIEW
4.35
Max
###
wwllyy R
8.50
SCHEMATIC
2
1
RECOMMENDED PCB LA YOUT
2.50
2.00
3.25
1
2
1.5
DRA124 Series
DRA125 Series
DRA127 Series
Dimensions in Millimeters.
### = Inductance value in uH. R = decimal point.
If no R is present third character = # of zeros
wwllyy = (date code) R = revision level
DRA Series
High Power Density,
High Efficiency, Shielded Inductors
Magnetics Solutions
For Automotive Applications
