Data Sheet

ADA4500-2

Rev. A | Page 17 of 24

TA = 25°C, unless otherwise noted.

FREQUENCY (Hz)

100

10k

10M

100k

ADA4500-2

VSY = 2.7V

VCM = VSY/2

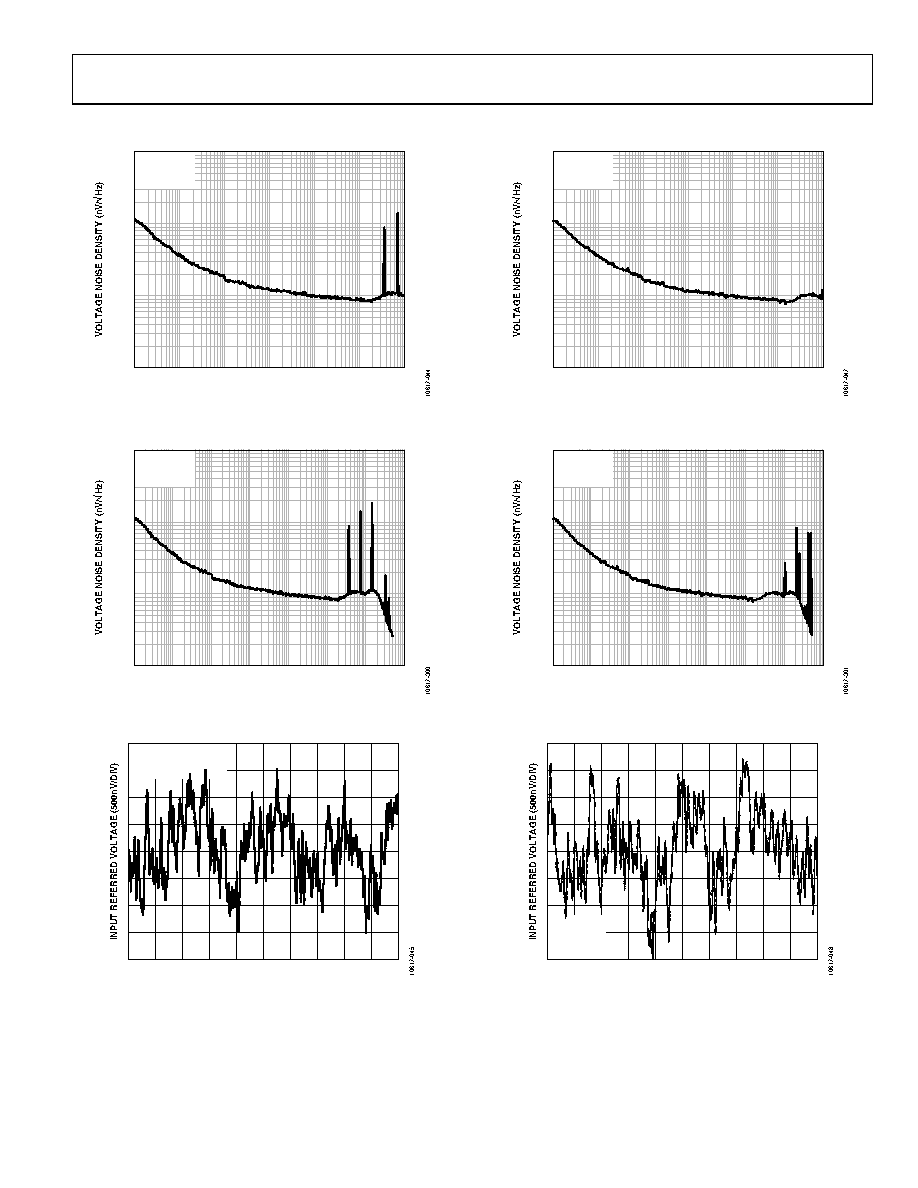

Figure 49. Voltage Noise Density vs. Frequency, VSY = 2.7 V

(10 Hz to 10 MHz)

FREQUENCY (Hz)

100

10k

100M

10M

100k

ADA4500-2

VSY = 2.7V

VCM = VSY/2

Figure 50. Voltage Noise Density vs. Frequency, VSY = 2.7 V

(10 Hz to 100 MHz)

TIME (1s/DIV)

ADA4500-2

VSY = 2.7V, AV = +100

VCM = VSY/2

Figure 51. 0.1 to 10 Hz Noise, VSY = 2.7 V

FREQUENCY (Hz)

100

ADA4500-2

VSY = 5.0V

VCM = VSY/2

100

10k

10M

100k

Figure 52. Voltage Noise Density vs. Frequency, VSY = 5.0 V

(10 Hz to 10 MHz)

100

10k

100M

10M

100k

FREQUENCY (Hz)

100

ADA4500-2

VSY = 5.0V

VCM = VSY/2

Figure 53. Voltage Noise Density vs. Frequency, VSY = 5.0 V

(10 Hz to 100 MHz)

TIME (1s/DIV)

ADA4500-2

VSY = 5.0V

AV = +100

VCM = VSY/2

Figure 54. 0.1 to 10 Hz Noise, VSY = 5.0 V
