ADA4500-2

Data Sheet

Rev. A | Page 14 of 24

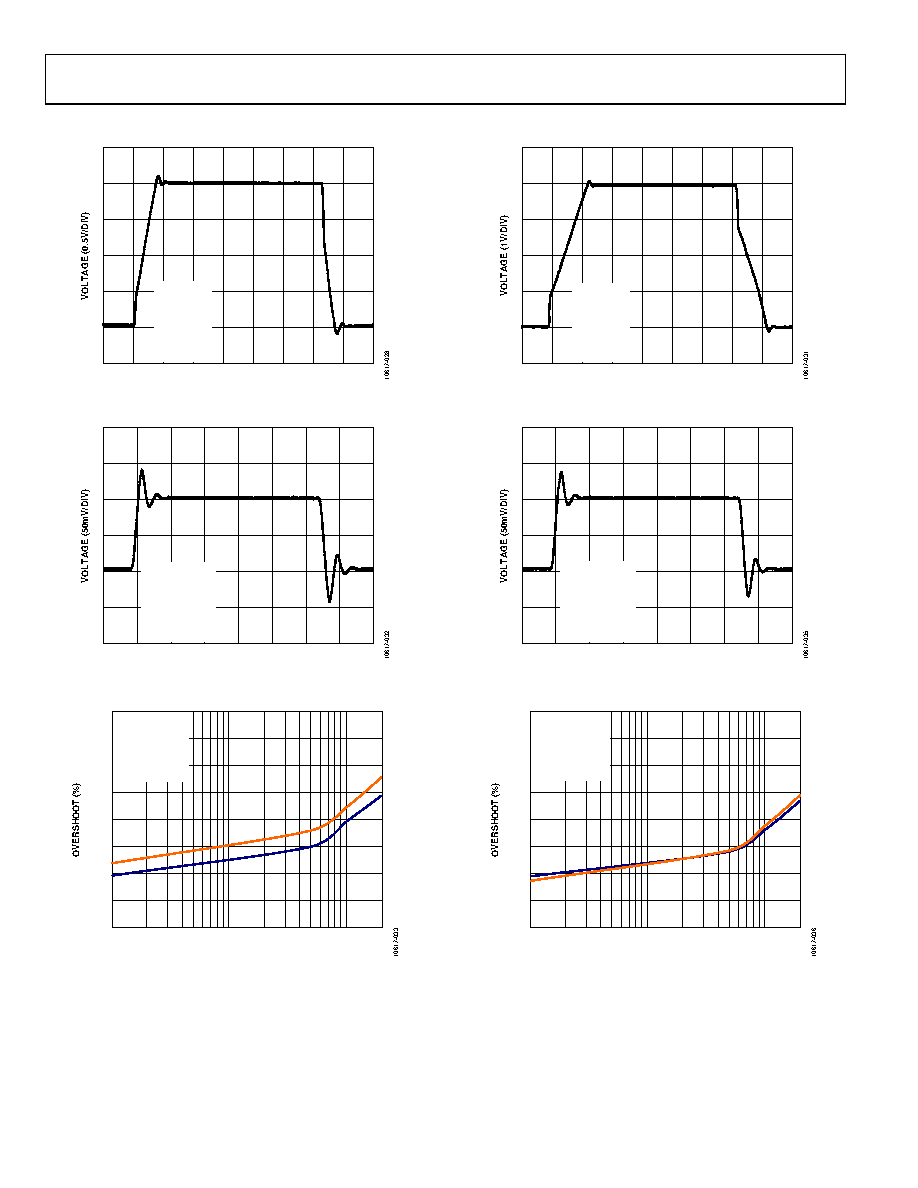

TA = 25°C, unless otherwise noted.

TIME (400ns/DIV)

ADA4500-2

VSY = 2.7V

VCM = VSY/2

VIN = 2V p-p

AV = +1

RL = 10kΩ

CL = 100pF

Figure 35. Large Signal Transient Response, VSY = 2.7 V

TIME (200ns/DIV)

ADA4500-2

VSY = 2.7V

VCM = VSY/2

VIN = 100mV p-p

AV = +1

RL = 10kΩ

CL = 100pF

Figure 36. Small Signal Transient Response, VSY = 2.7 V

LOAD CAPACITANCE (pF)

100

OS+

OS–

ADA4500-2

VSY = 2.7V

VCM = VSY/2

VIN = 100mV p-p

AV = +1

RL = 10kΩ

Figure 37. Small Signal Overshoot vs. Load Capacitance, VSY = 2.7 V

TIME (200ns/DIV)

ADA4500-2

VSY = 5.0V

VCM = VSY/2

VIN = 4V p-p

AV = +1

RL = 10kΩ

CL = 100pF

Figure 38. Large Signal Transient Response, VSY = 5.0 V

TIME (200ns/DIV)

ADA4500-2

VSY = 5.0V

VCM = VSY/2

VIN = 100mV p-p

AV = +1

RL = 10kΩ

CL = 100pF

Figure 39. Small Signal Transient Response, VSY = 5.0 V

LOAD CAPACITANCE (pF)

100

OS+

OS–

ADA4500-2

VSY = 5.0V

VCM = VSY/2

VIN = 100mV p-p

AV = +1

RL = 10kΩ

Figure 40. Small Signal Overshoot vs. Load Capacitance, VSY = 5.0 V
