 2004-2013 Microchip Technology Inc.
DS21915C-page 9
MCP73853/55

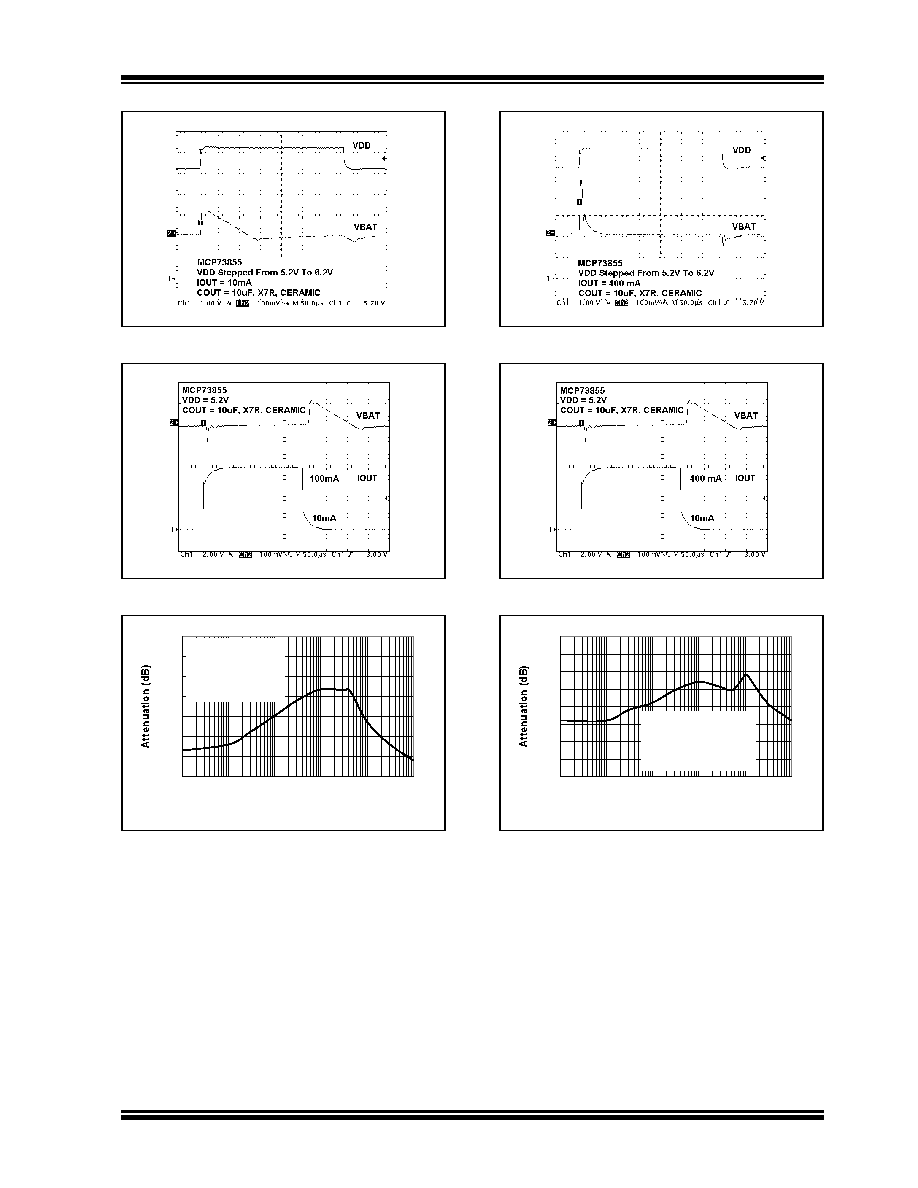

FIGURE 2-13:
Line Transient Response.
FIGURE 2-14:
Load Transient Response.
FIGURE 2-15:
Power Supply Ripple
Rejection.
FIGURE 2-16:
Line Transient Response.
FIGURE 2-17:
Load Transient Response.
FIGURE 2-18:
Power Supply Ripple
Rejection.
NOTE: Unless otherwise indicated, VDD = [VREG(Typ) + 1V], IOUT = 10 mA, and TA= +25°C.
-70
-60
-50
-40
-30
-20
-10
0
0.01
0.1
1
10
100
1000
Frequency (kHz)
MCP73853
VDD = 5.2 V
VAC = 100 mVp-p
IOUT = 10 mA
COUT = 10 F, Ceramic
-80
-70
-60
-50
-40
-30
-20
-10
0
0.01
0.1
1
10
100
1000
Frequency (kHz)
MCP73853
VDD = 5.2 V
VAC = 100 mVp-p
IOUT = 100 mA
COUT = 10 F, X7R, Ceramic
