ABSOLUTE MAXIMUM RATINGS

Table 2.

Parameter

Ratings

18 V

Internal Power Dissipation

500 mW

Input Voltages (X1, X2, Y1, Y2)

Operating Temperature Ranges

Commercial, AD834J Only

0°C to 70°C

Industrial, AD834A Only

−40°C to +85°C

Military AD834S/883B Only

−55°C to +125°C

Storage Temperature Range (Q)

−65°C to +150°C

Storage Temperature Range (R, N)

−65°C to +125°C

Lead Temperature (Soldering, 60 sec)

300°C

ESD Rating

500 V

Stresses above those listed under Absolute Maximum Ratings

may cause permanent damage to the device. This is a stress

rating only; functional operation of the device at these or any

other conditions above those indicated in the operational

section of this specification is not implied. Exposure to absolute

maximum rating conditions for extended periods may affect

device reliability.

THERMAL CHARACTERISTICS

Table 3.

Package

Unit

8-Lead CERDIP (Q)

110

110

°C/W

8-Lead SOIC (R)

165

165

°C/W

8-Lead PDIP (N)

99

99

°C/W

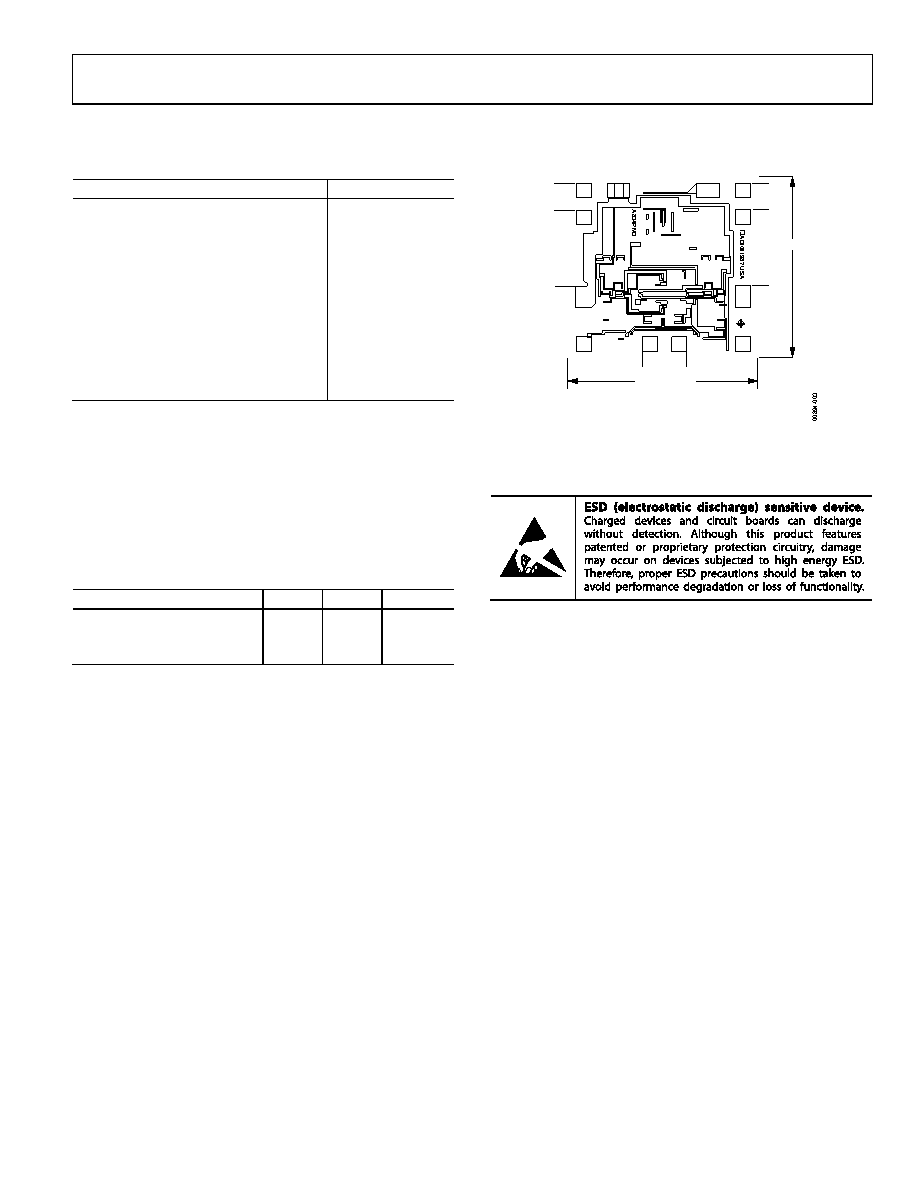

CHIP DIMENSIONS AND BONDING DIAGRAM

Y1

Y2

W2

NOTES

1. DIMENSIONS SHOWN IN INCHES AND (mm). CONTACT

FACTORY FOR LATEST DIMENSIONS.

W1

X1

X2

8

7

6

5

4

3

2

1

0.054 (1.37)

0.054 (1.37)

Figure 2. Metallization Photograph
