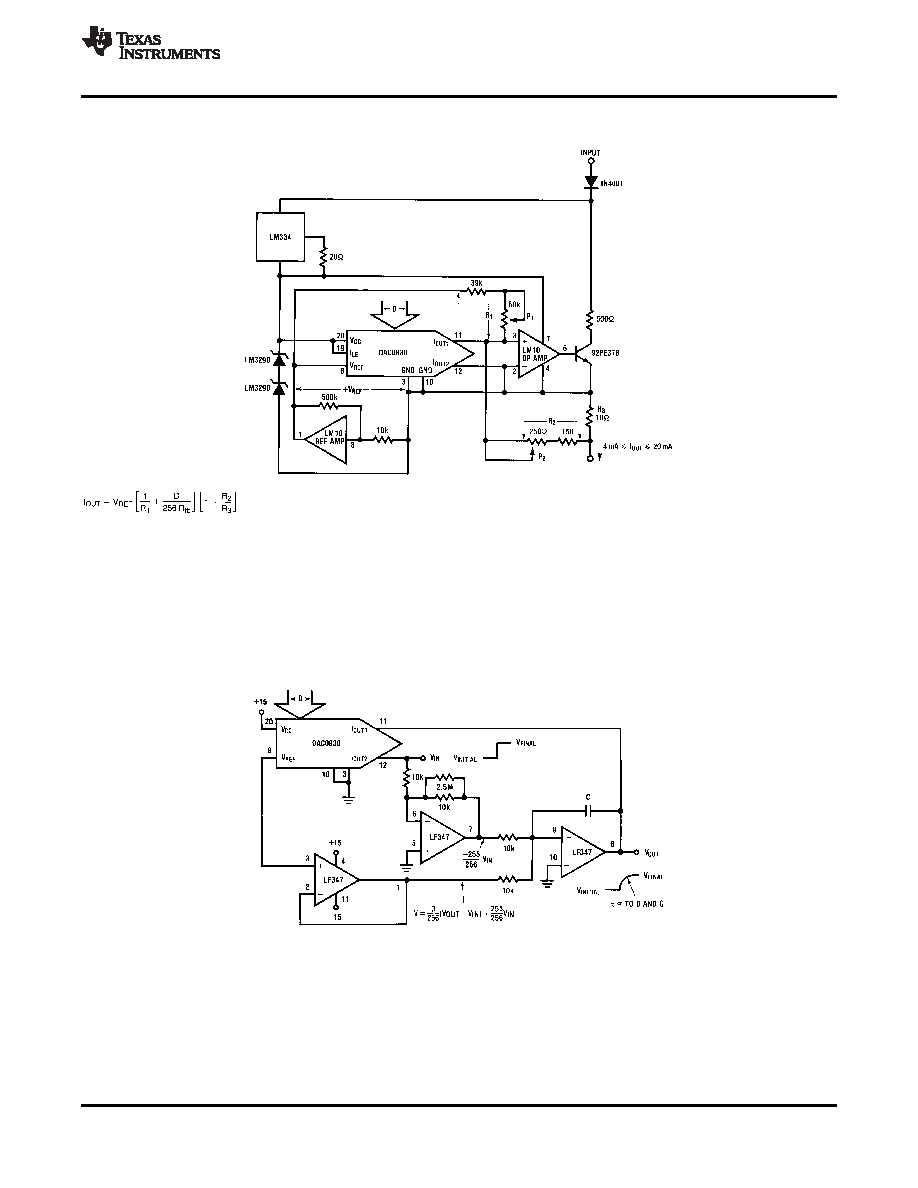

Figure 34. Two Terminal Floating 4 to 20 mA Current Loop Controller

•

DAC0830 linearly controls the current flow from the input terminal to the output terminal to be 4 mA (for D=0)

to 19.94 mA (for D=255).

•

Circuit operates with a terminal voltage differential of 16V to 55V.

•

•

Digital inputs can be supplied from a processor using opto isolators on each input or the DAC latches can

flow-through (connect control lines to pins 3 and 10 of the DAC) and the input data can be set by SPST

toggle switches to ground (pins 3 and 10).

Figure 35. DAC Controlled Exponential Time Response

•

•

Output time constant is directly proportional to the DAC input code and capacitor C

•

Input voltage must be positive (See Using the DAC0830 in a Voltage Switching Configuration
