Option Code

Product Number Suffix

Description

-V

Axial leads - copper tinned wire with nickel plated brass overcaps (place before amp rating; e.g., GMC-V-2)

-R

RoHS compliant version (drop “mA” or “A” from product number when ordering)

Packaging Code

Product Number Prefix

Description

BK-

100 fuses packed into a cardboard carton

BK1-

1000 fuses packed into a poly bag

TR2-

1500 Axial lead fuses packed into tape on a reel (19.05mm lead wire length)

© 2011 Cooper Bussmann

www.cooperbussmann.com

0711

BU-SB11757

Page 2 of 2

Data Sheet 4395

The only controlled copy of this Data Sheet is the electronic read-only version located on the Cooper Bussmann Network Drive. All other copies of this document are by definition uncontrolled. This bulletin is

intended to clearly present comprehensive product data and provide technical information that will help the end user with design applications. Cooper Bussmann reserves the right, without notice, to change

design or construction of any products and to discontinue or limit distribution of any products. Cooper Bussmann also reserves the right to change or update, without notice, any technical information con-

tained in this bulletin. Once a product has been selected, it should be tested by the user in all possible applications.

Life Support Policy: Cooper Bussmann does not authorize the use of any of its products for use in life support devices or systems without the express written approval of an officer of the Company. Life sup-

port systems are devices which support or sustain life, and whose failure to perform, when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result

in significant injury to the user.

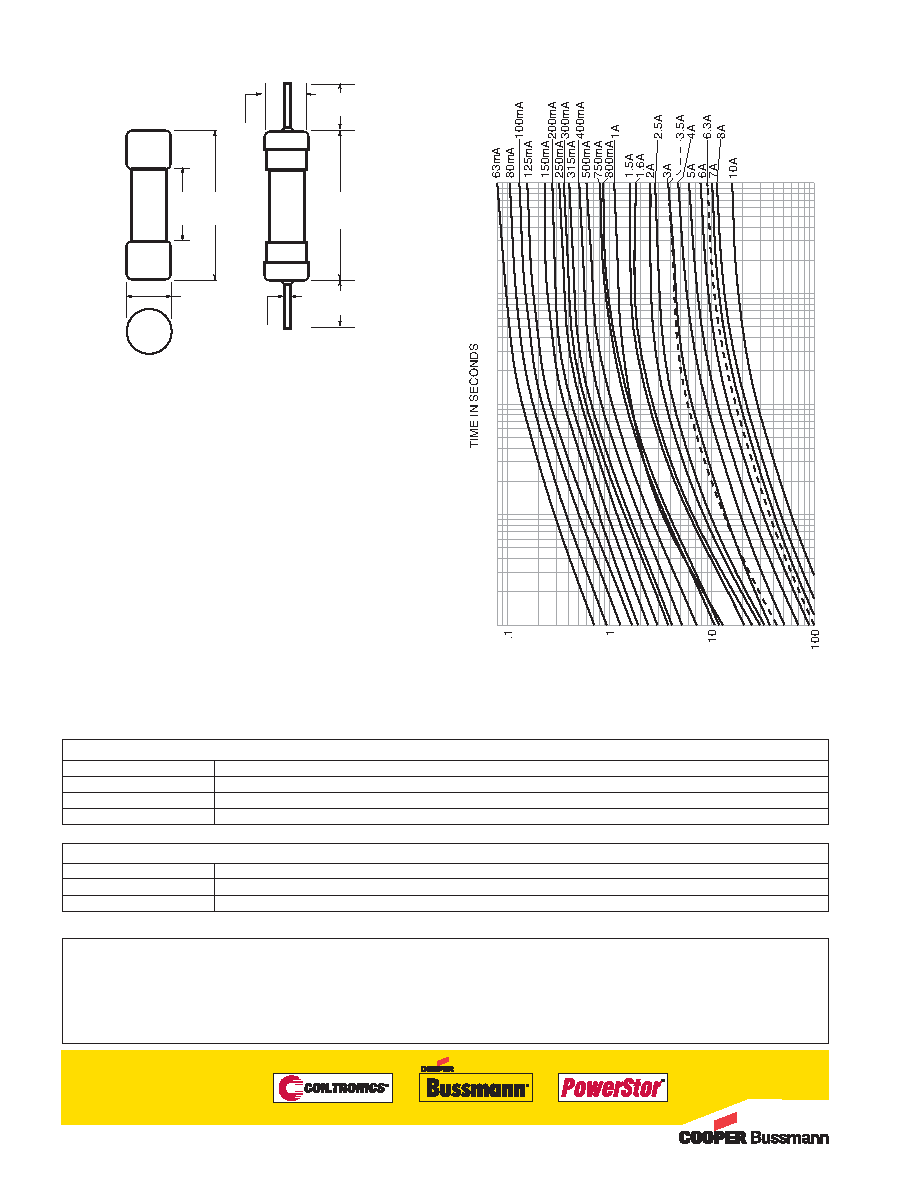

Time-Current Curves

CURRENT IN AMPS

100

10

1

.1

.01

AMP

RATING

Dimensions - mm

Drawing Not to Scale

20mm

(0.5)

5.2mm

(+0.1/-0.2)

38.10mm

(.38)

5.54mm

(.20)

21.10mm

(.81)

0.65mm

(REF)

10mm

(2.0)

38.10mm

(.38)

• Ratings above 6.3A have a 0.8mm diameter lead

• With TR2 packaging code, lead wire length is 19.05mm
