MMA-283136-R5
28-31GHz 4W MMIC Power Amplifier
Data Sheet
October, 2012
MicroWave Technology, Inc. an IXYS Company, 4268 Solar Way, Fremont, CA 94538
510-651-6700
FAX
510-651-2208 WEB www.mwtinc.com
MMA283136 Rev 1.4 data sheet is subject to change without notice. All rights reserved © 2012
Please visit MwT website www.mwtinc.com for information on other MwT MMIC products.
Page 12 of 13

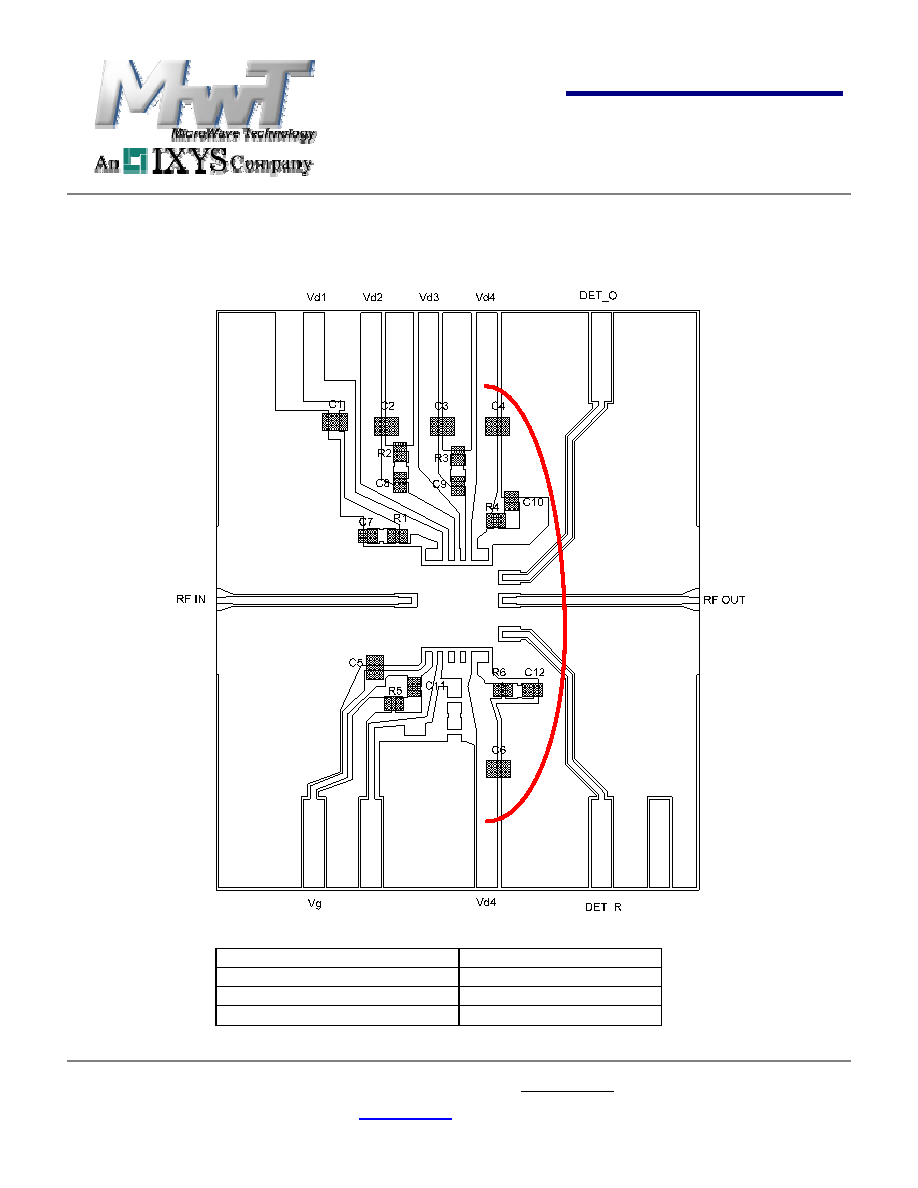

Recommended Application Board Design:
Board Material is 10mil (Dielectric) thickness Rogers 4350B with 0.5oz cupper clads.
Board is soldered on a gold plated solid cupper block and adequate heat-sinking is required for 16.8W total
power dissipation.
Part
Description
C1, C2, C3, C4, C5, C6
1uF capacitor (0603)
C7, C8, C9, C10, C11, C12
0.01uF Capacitor (0402)
R1, R2, R3, R4, R5, R6
10Ω Resistor (0402)
