DSALPHA-3
Jul 09
©
2009 RF Solutions Ltd.
Page 3
ALPHA RF MODULES
ALPHA-TX
ALPHA-RX

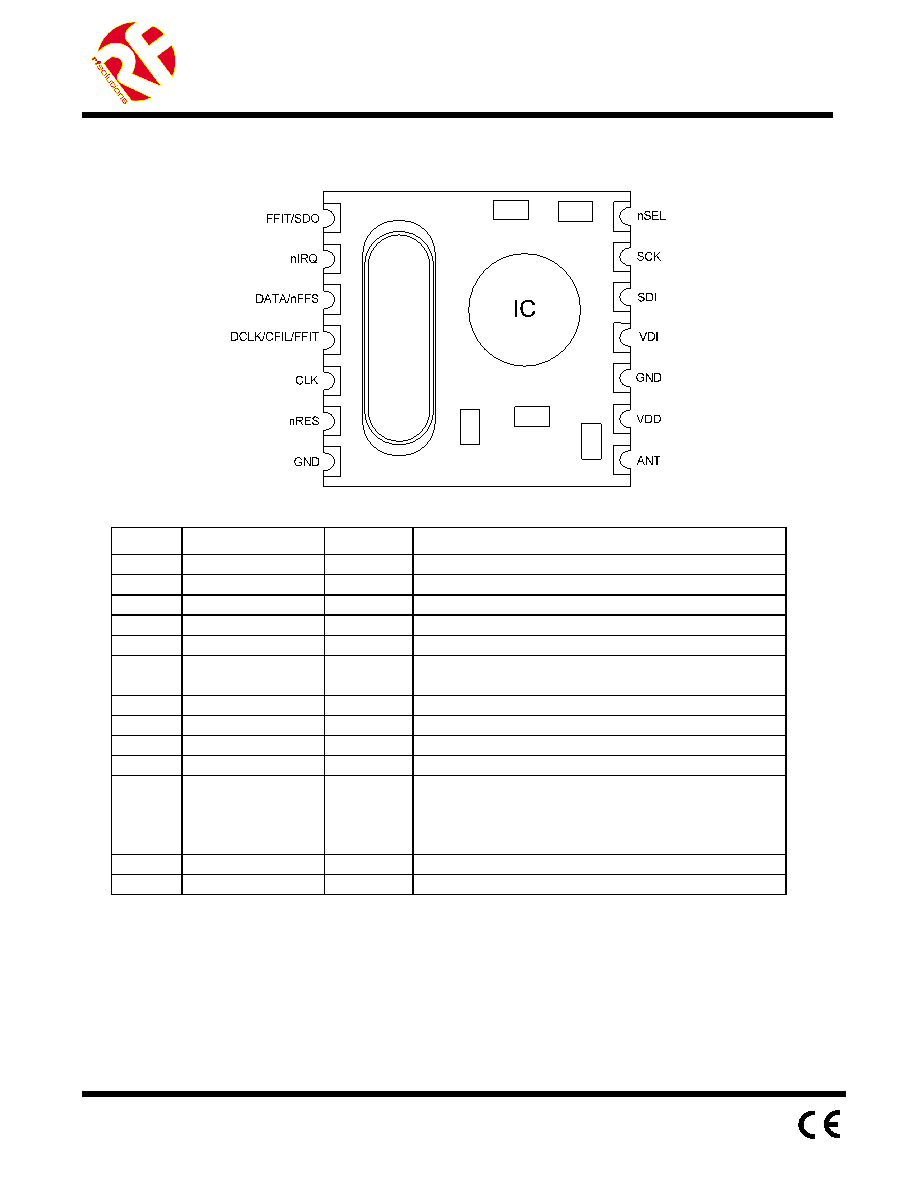

Receiver Pin Description
Pin
Definition
Direction
Description
11
VDI
OUT
FSK Data Input
9
VDD
IN
Positive Power Supply
12
SDI
IN
SPI Data Input
13
SCK
IN
SPI Clock Input
14
nSEL
IN
Chip select (Active Low)
1
FFIT/SDO
OUT
FIFO fill interrupt (Active Low) / status read
data output
6
nRES
OUT
Clock out for MCU (1-10MHz)
7,10
GND
IN
Ground Connection
2
nIRQ
OUT
Interrupt Request Output (Active Low)
3
DATA/nFFS
IN
Data Input (non FIFO Mode) / FIFO Select
4
DATA/CFIL/FFIT
IN/OUT
Clock Output (noFIFO) / External filter
Capacitor(analog mode) / FIFO interrupt (active
High) when FIFO level set to 1, FIFO Empty
interruption can be achieved.
5
CLK
OUT
Clock Output for external microcontroller
8
ANT
IN
Antenna input
