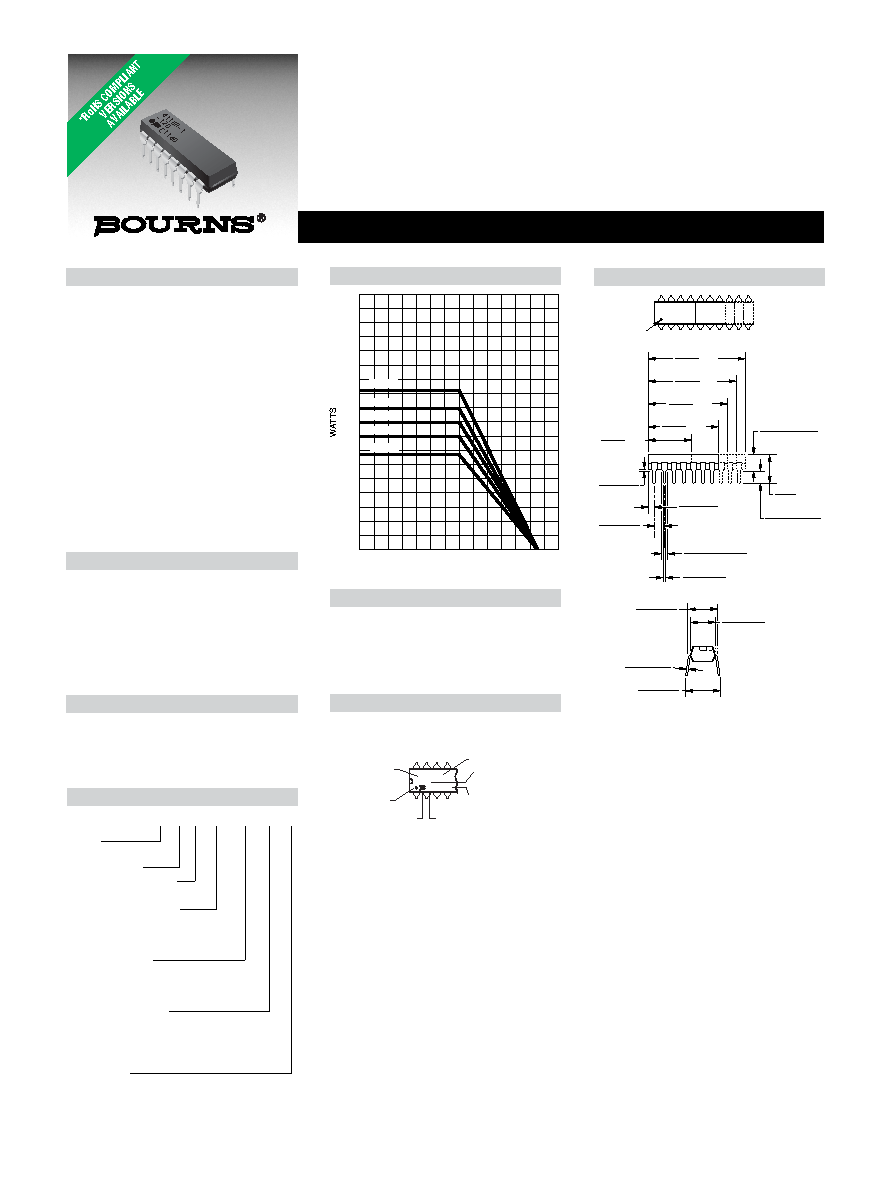

4100R Series - Thick Film Molded DIPs

*RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011.

Specifications are subject to change without notice.

Customers should verify actual device performance in their specific applications.

Product Characteristics

Resistance Range

.................... 10 ohms to 10 megohms

Maximum Operating Voltage .........100 V

Temperature Coefficient of Resistance

50

Ω to 2.2 MΩ...............±100 ppm/°C

below 50

Ω.....................±250 ppm/°C

above 2.2 M

Ω.................±250 ppm/°C

TCR Tracking.........................50 ppm/°C

maximum; equal values

Resistor Tolerance............... See circuits

Operating Temperature

................................-55 °C to +125 °C

Insulation Resistance

................ 10,000 megohms minimum

Dielectric Withstanding Voltage

...........................................200 VRMS

Lead Solderability ..... Meet requirements

of MIL-STD-202 Method 208

Environmental Characteristics

TESTS PER MIL-STD-202 ...... ∆R MAX.

Short Time Overload..................±0.25 %

Load Life....................................±1.00 %

Moisture Resistance ..................±0.50 %

Resistance to Soldering Heat

...............................................±0.25 %

Terminal Strength ......................±0.25 %

Thermal Shock ..........................±0.25 %

Physical Characteristics

Flammability ........ Conforms to UL94V-0

Lead Frame Material

.........................Copper, solder coated

Body Material.................. Novolac epoxy

Package Power Temp. Derating Curve

How To Order

41 14 R - 1 - 152 __ __

Model

(41 = Molded DIP)

Number of Pins

Physical Configuration

(R = Thick Film Low Profile)

Electrical Configuration

• 1 = Isolated

• 2 = Bussed

• 3 = Dual Terminator

Resistance Code

• First 2 digits are significant

• Third digit represents the

number of zeros to follow.

Resistance Tolerance

• Blank = ±2 % (see “Resistance Tolerance”

on next page for resistance range)

• F = ±1 % (100 ohms - 1 megohm)

• D = ±0.5 % (100 ohms - 1 megohm)

Terminations

• LF = Tin-plated (RoHS compliant version)

• Blank = Tin/Lead-plated

Consult factory for other available options.

Product Dimensions

AMBIENT TEMPERATURE ( C )

°

0

70

125

4.00

3.50

3.00

2.50

2.00

1.50

1.00

.50

25

4108R

4114R

4116R

4118R

4120R

Package Power Rating at 70 °C

4108R .....................................1.69 watts

4114R .....................................2.00 watts

4116R .....................................2.25 watts

4118R .....................................2.50 watts

4120R .....................................2.80 watts

Typical Part Marking

Represents total content. Layout may

vary.

PART

NUMBER

4116R-1-

120

CYYWW

CIRCUIT

RESISTANCE

CODE

PIN ONE

INDICATOR

MANUFACTURER'S

TRADEMARK

COUNTRY OF MANUFACTURE

(C = COSTA RICA)

DATE CODE

For Standard Values Used in

Capacitors, Inductors, and Resistors,

click here.

PIN #1 REF.

4.57 + .12/ - .28

(.180 + .005/ - .007)

3.43 + .38/ - .25.

(135 + .015/ - .010)

MAX.

2.03

.12

(.080

.005)

2.54

.25

(.100

.010*)

.438

.050

(.019

.002)

1.65 + .12/ - .07

(.065 + .005/ - .003)

7.87

.25

(.310

.010)

TO OUTSIDE

WHEN PINS

ARE PARALLEL

6.71

.10

(.260 + .005)

8.64

.50

(.340

.020)

.254

.050

(.010

.002)

Governing dimensions are in metric. Dimensions in parentheses

are inches and are approximate.

*Terminal centerline to centerline measurements made at point of

emergence of the lead from the body.

27.05

(1.065)

MAX.

24.51

(.965)

MAX.

21.97

(.865)

MAX.

19.43

(.765)

MAX.

11.81

(.465)

MAX.

8.40

(.331)

TYP.

.89

.25

(.035

.010)

TYP.

NON-ACCUM.

TYP.

For information on specific applications,

download Bourns’ application notes:

■ DRAM Applications

■ Dual Terminator Resistor Networks

■ R/2R Ladder Networks

■ SCSI Applications
