Data Sheet

AD8232

Rev. A | Page 27 of 28

PACKAGING AND ORDERING INFORMATION

OUTLINE DIMENSIONS

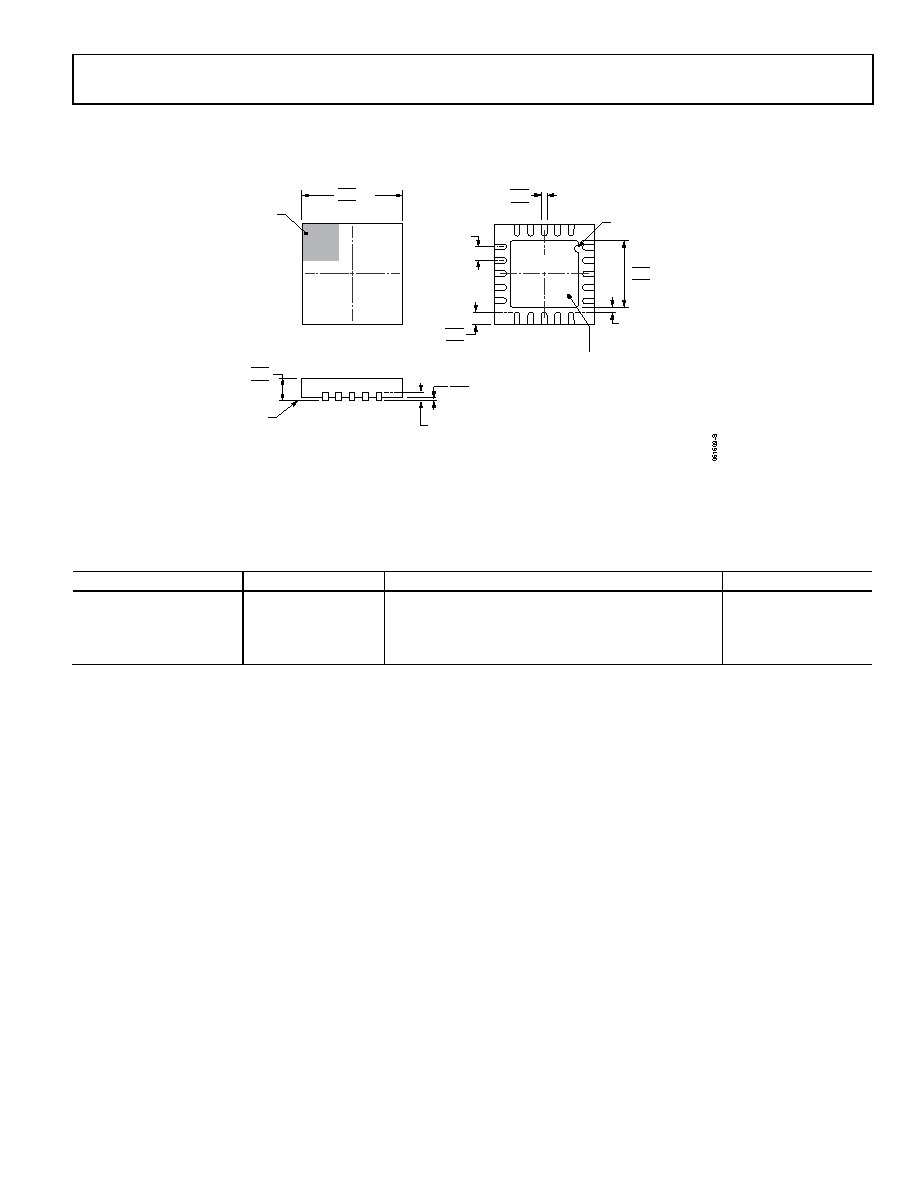

Figure 69. 20-Lead Lead Frame Chip Scale Package [LFCSP_WQ]

4 mm × 4 mm Body, Very Very Thin Quad

(CP-20-10)

Dimensions shown in millimeters

ORDERING GUIDE

Model1

Temperature Range

Package Description

Package Option

AD8232ACPZ-R7

−40°C to +85°C

20-Lead Lead Frame Chip Scale Package [LFCSP_WQ]

CP-20-10

AD8232ACPZ-RL

−40°C to +85°C

20-Lead Lead Frame Chip Scale Package [LFCSP_WQ]

CP-20-10

AD8232ACPZ-WP

−40°C to +85°C

20-Lead Lead Frame Chip Scale Package [LFCSP_WQ]

CP-20-10

AD8232-EVALZ

Evaluation Board

Z = RoHS Compliant Part.

0.50

BSC

0.50

0.40

0.30

0.25

0.20

COMPLIANT

TO JEDEC STANDARDS MO-220-WGGD.

BOTTOM VIEW

TOP VIEW

EXPOSED

PAD

PIN 1

INDICATOR

4.10

4.00 SQ

3.90

SEATING

PLANE

0.80

0.75

0.70

0.05 MAX

0.02 NOM

0.20 REF

0.25 MIN

COPLANARITY

0.08

PIN 1

INDICATOR

2.65

2.50 SQ

2.35

FOR PROPER CONNECTION OF

THE EXPOSED PAD, REFER TO

THE PIN CONFIGURATION AND

FUNCTION DESCRIPTIONS

SECTION OF THIS DATA SHEET.
