AD5544/AD5554
Data Sheet
Rev. G | Page 6 of 24

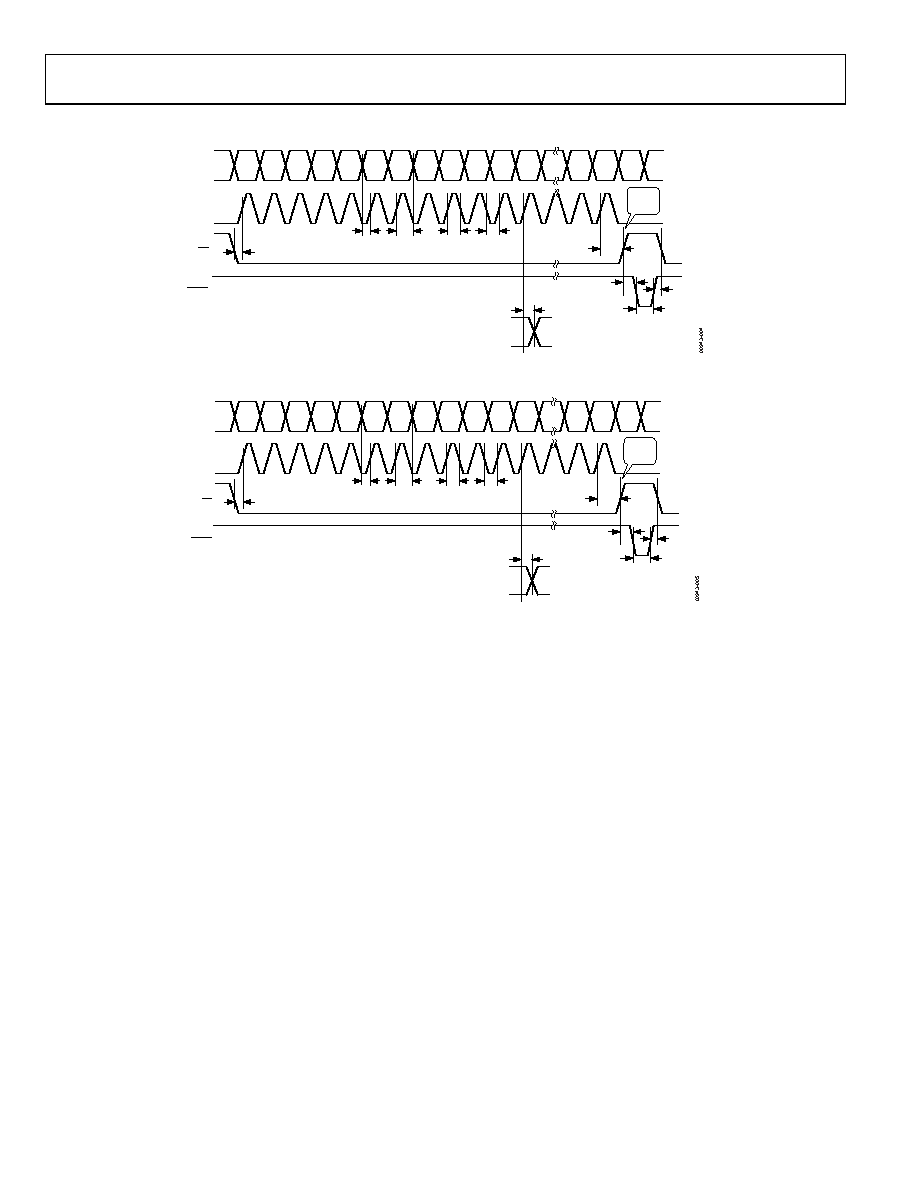

TIMING DIAGRAMS
tLDH
tLDS
tLDAC
tCSH
tPD
tCL
tCH
tDH
tDS
tCSS
SDI
CLK
CS
LDAC
SDO
INPUT
REG
LD
A1
A0
D15
D14
D13
D12
D11
D10
D1
D0
Figure 3. AD5544 Timing Diagram
tLDH
tLDS
tLDAC
tCSH
tPD
tCL
tCH
tDH
tDS
tCSS
SDI
CLK
SDO
INPUT
REG
LD
A1
A0
D13
D12
D11
D10
D09
D08
D1
D0
CS
LDAC
Figure 4. AD5554 Timing Diagram
