Standard Photoelectric Sensors

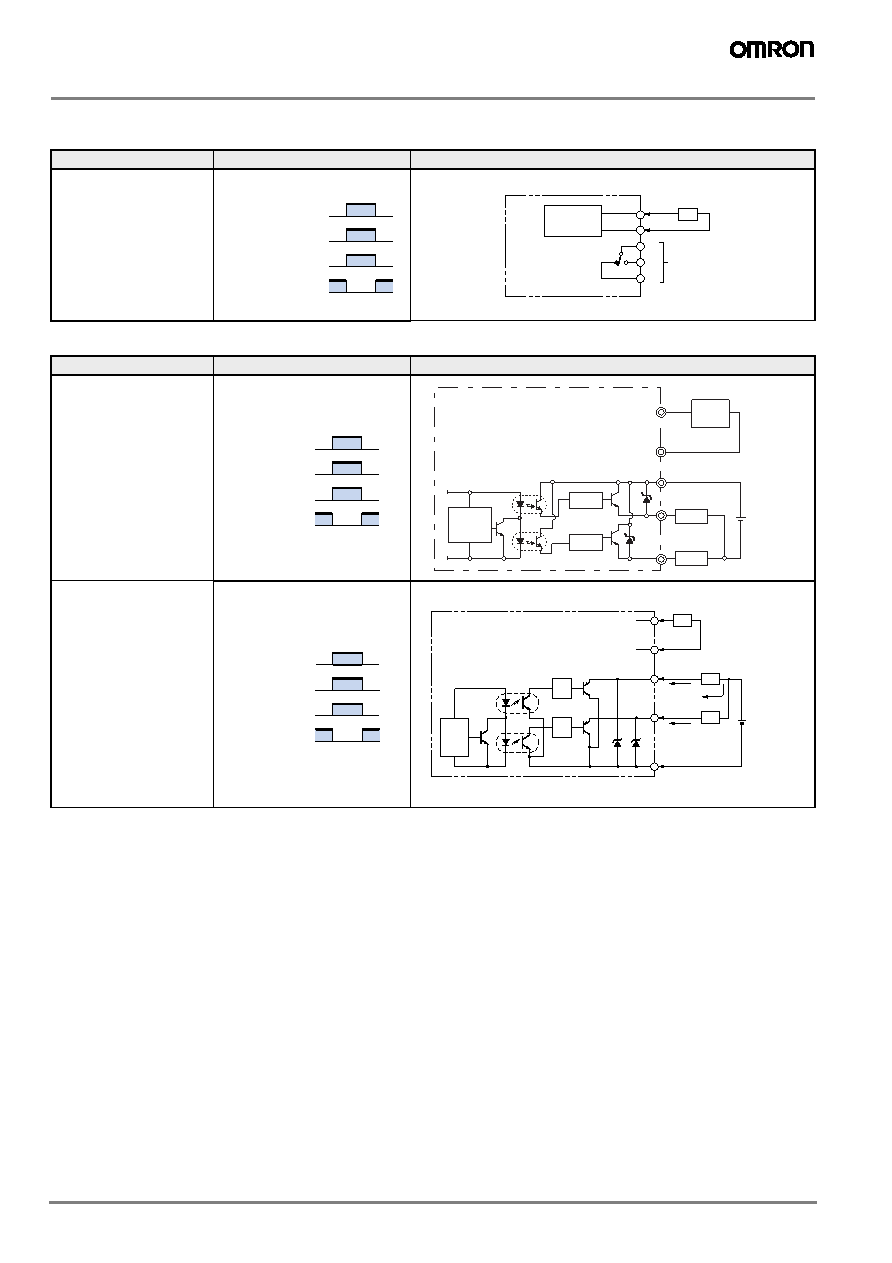

Output Circuit Diagram

E3JK

Relay output

DC transistor output

Note: Connect to brown and blue on the emitter side.

Model

Timing chart

Output circuit

E3JK-5M1

E3JK-5M2

E3JK-R2M1

E3JK-R2M2

E3JK-R4M1

E3JK-R4M2

E3JK-DS30M1

E3JK-DS30M2

Model

Timing chart

Output circuit

E3JK-R2S3

E3JK-R4S3

E3JK-DS30S3

E3JK-R2R3

Light indicator

(red)

L-ON(Ta)

(E3JK-##M1)

D-ON(Ta)

(E3JK-##M2)

Incident

Interrupted

ON

OFF

ON

OFF

ON

OFF

Power

source

Main circuit

(Polarity Optional)

24 to 240 VAC

12 to 240 VDC

White

Brown

Blue

Black

Contact output

Tc

Tb

Ta

Gray

Built-in relay: G6C

Light

indicator

(red)

L-ON mode

D-ON mode

Incident

Interrupted

ON

OFF

ON

OFF

ON

OFF

Main

circuit

Power

source

Load

Load

Brown

Blue

White

Gray (D-ON)

Black (L-ON)

Drive

circuit

Drive

circuit

24 to 240 VAC

12 to 240 VDC

Light

indicator

(red)

L-ON mode

D-ON mode

Incident

Interrupted

ON

OFF

ON

OFF

ON

OFF

Power

source

(Polarity

Optional)

24 to 240 VAC

12 to 240 VDC

Main

circuit

Drive

circuit

Drive

circuit

D/ON

L/ON

Gray

Black

48 VDC max.

White

Load

Load

I1 + I2 < 100 mA

Brown

Blue

Note: The output stage leakage currents are 0.1 mA max., respectively.
