Revision 11/17/2011

WWW.PHIHONG.COM

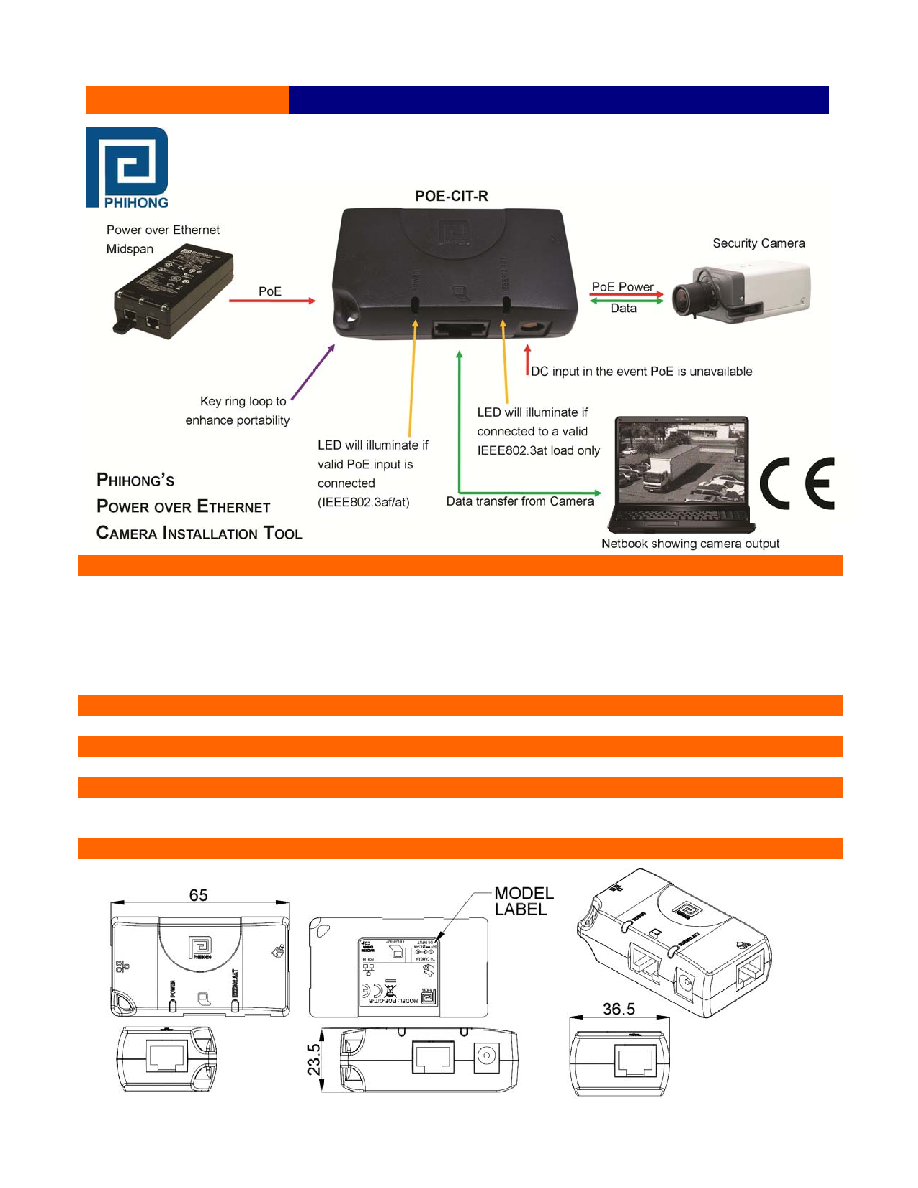

Power-over-Ethernet Camera Installation Tool

POE-CIT-R aids in Camera Installation and POE Detection

Features

 Optional 56V DC In Port

 Redirects Data from Camera to Ethernet

enabled display including Netbooks or tablets

 Network port detects PoE and PoE Type

 Key ring Loop

 Diagnostic LEDs

 Shirt Pocket Sized

 Camera port has no detection and may not be

connected to non-PoE ready devices

 Layer 1 Classification for IEEE802.3at

powered devices

Applications

 PoE Camera Installation

 PoE Detection (including Type)

Safety Approvals

 CE

Mechanical Characteristics

 Length: 64mm (2.5in)

 Height: 23.5mm (0.9in)

 Width: 36.5mm (1.4in)

 Weight: 30g (1oz)

Dimension Diagram Unit:mm
