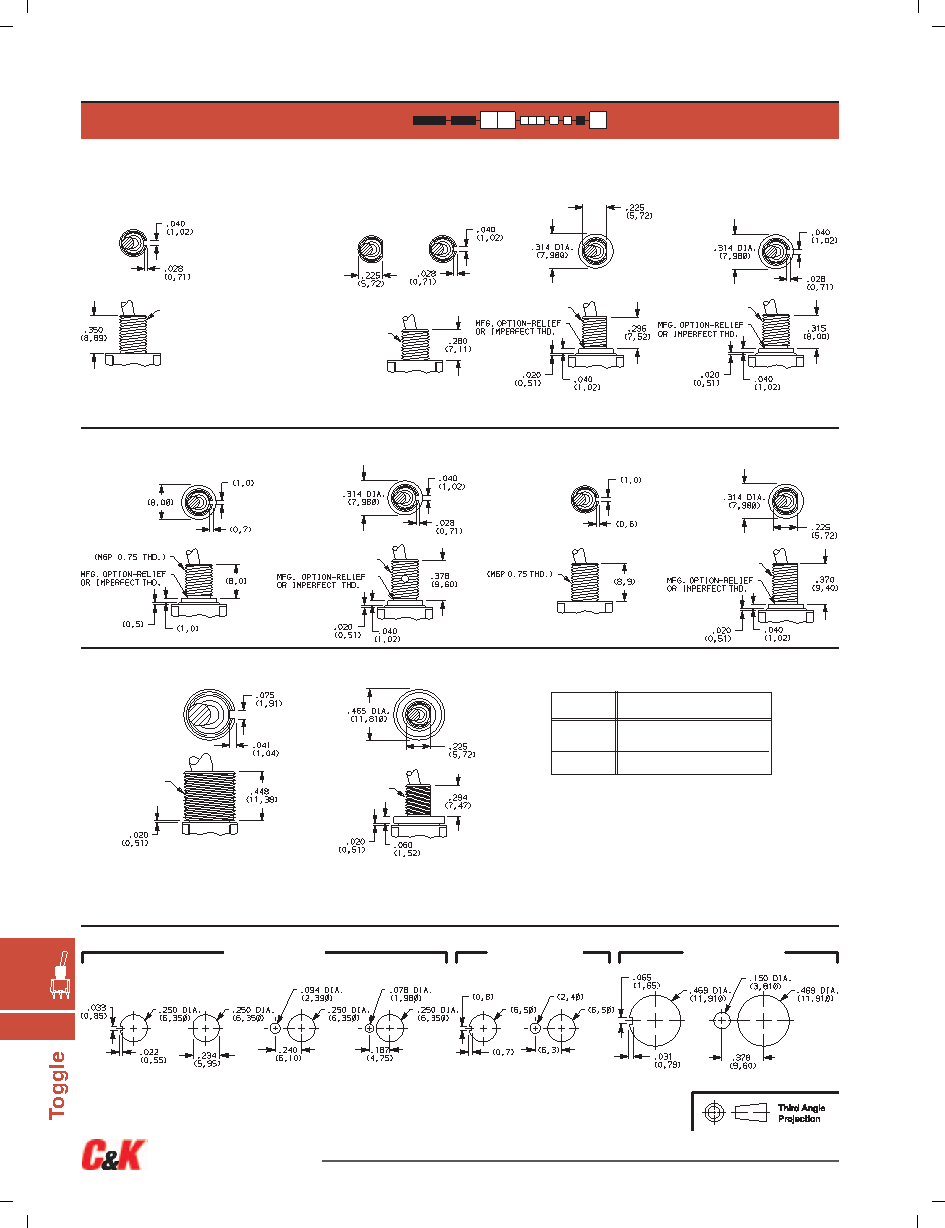

7000 Series

Miniature Toggle Switches

BUSHING

PANEL MOUNTING

1/4 INCH BUSHING

METRIC BUSHING

15/32 INCH BUSHING

Without locking ring.

With standard locking ring.

With small locking ring.

Without locking ring. With locking ring.

Without locking ring.

With standard locking ring.

15/32-32 UNS-2A

1/4-40 UNS-2A

For T & T1 actuators.

For actuators other than T & T1.

1/4-40 UNS-2A

D, D9

1/4-40 UNS-2A

.350" HIGH,

UNTHREADED,

KEYWAY

.350" HIGH,

THREADED, KEYWAY

NONE

NO BUSHING

.280" HIGH, UNTHREADED,

FLAT 3

.280" HIGH, UNTHREADED,

KEYWAY

.280" HIGH,

THREADED, KEYWAY

.296" HIGH, FLAT

THREADED, HIGH TORQUE 1,2

.315" HIGH, KEYWAY

THREADED, HIGH

TORQUE 1,2

8mm HIGH, KEYWAY, THREADED,

METRIC HIGH TORQUE 1,2,3

.378" HIGH, KEYWAY, THREADED,

HIGH TORQUE 1,2,4

8.9mm HIGH, KEYWAY,

THREADED, METRIC

.378" HIGH, FLAT, THREADED,

HIGH TORQUE 1,2,5

THREADED, SPLASHPROOF 1,2

Y bushing standard with C,

W-W5, Z or Z3 terminations.

Subtract .020 (0,51) from all actuator

lengths for H3 bushing.

No bushing choice required

with KXX, TXX actuators.

(exception: Specify CW if

splashproof bushing desired).

D9 bushing standard with all terminations

except C, W-W5, Z or Z3. Add .070 (1,78) to

all actuators lengths with D, D8 & D9 bushings.

IP67 Degree of protection, totally protected against

dust, full-scale voltage protection, temporary immersion.

Internal actuator seal standard.

External bushing seal available separately from APM

Hexseal, part # MFS-60064.

IP67 Degree of protection, totally protected

against dust, full-scale voltage protection,

temporary immersion. Internal actuator seal

and external bushing seal washer standard.

1 Will withstand 12 in.-lbs. of torque with no distortion.

2 CW. H, H3, H4, Y1 & Y4 bushings not available on single pole models

with A4 terminations.

3 D8 & H4 bushings available only with L, L1, L2, M & S actuators.

4 Y1 bushing available only with LXP, MP, PX & SP actuators.

5 Y4 bushing not available with L4X actuators.

NOTE: Two mounting nuts, locking ring and lockwasher supplied standard with

threaded bushings. Black hardware is supplied when either black bushings or

actuators are specified. Optional mounting nut and locking ring styles and finishes

available, see Section N.

NONE

NICKEL on all bushings

except ‘D8’ satin chrome.

BLACK

BUSHING FINISH

OPTION

CODE

BUSHING FINISH

BUSHING
