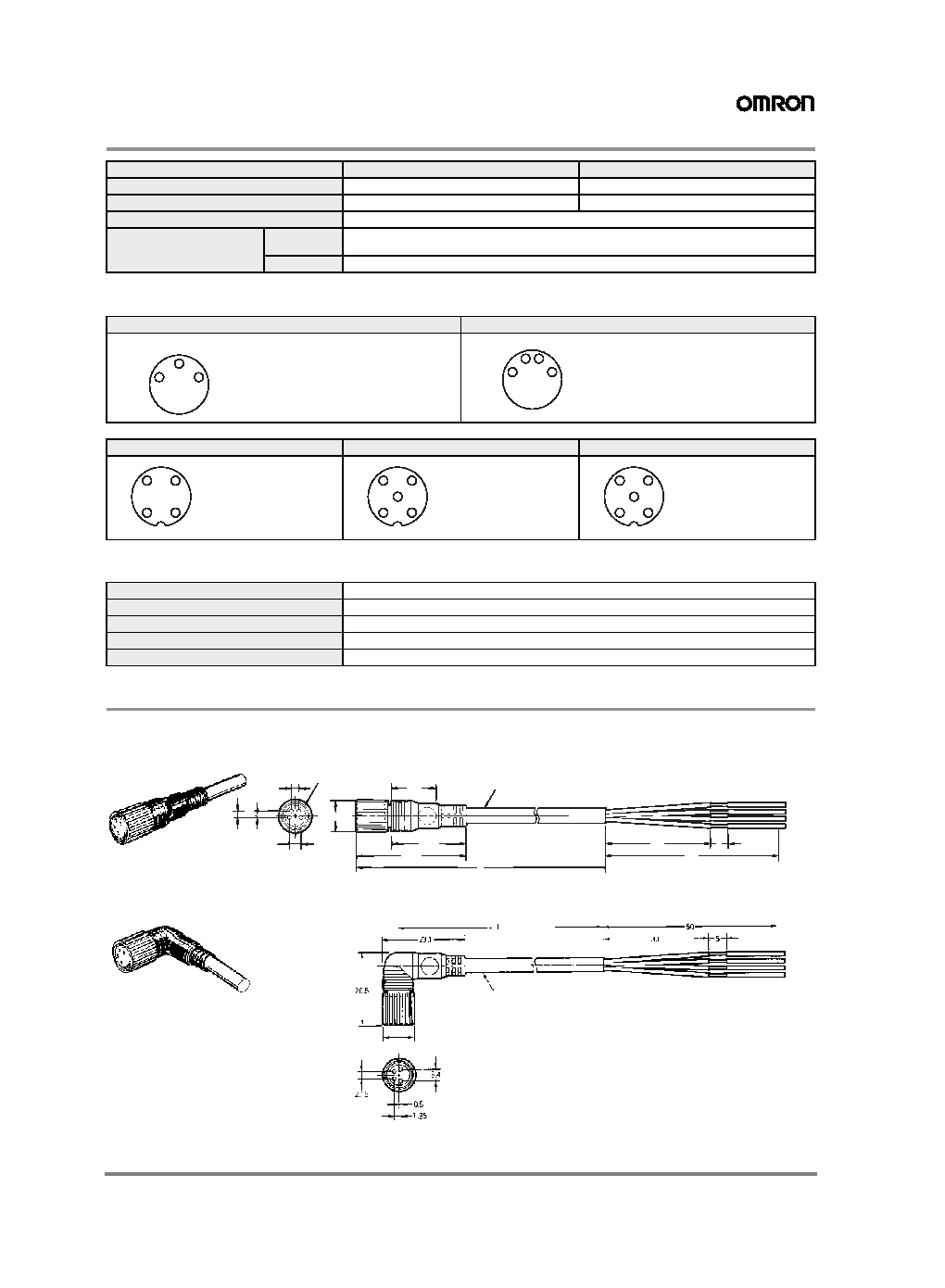

4 / 38 page

Specifications

Pin arrangement

Materials

Dimensions

XS3F

M8 Screw-on cable connectors

M12

Rated current

4 A

Rated voltage

125 VDC

125 VDC, 250 VAC

Degree of protection

IP67 (IEC 60529)

Ambient temperature

PUR

Fixed cable: -50°C to 80°C

Moving cable: -25°C to 80°C

PVC

-25°C to 70°C

M8 3 poles

M8 4 poles

1 = brown

3 = blue

4 = black

1 = brown

2 = white

3 = blue

4 = black

M12 3 poles

M12 4 poles

M12 5 poles

1 = brown

2 = n.c.

3 = blue

4 = black

1 = brown

2 = white

3 = blue

4 = black

5 = n.c.

1 = brown

2 = white

3 = blue

4 = black

5 = green / yellow

Pin block

PBT resin (UL 94V-0)

Contacts

Brass/ nickel base, 0.4 µm gold plating

Fixture

Brass/ nickel plated

Cover

Polyester elastomer (UL 94V-O)

O-ring

Rubber

4 dia.

Straight Connectors

L-shaped Connectors

4 dia.

9 dia.

2.15

1.95 0.5

3.4

9 dia.

12.9

21.5

31.4
