Arizona Microtek, Inc.
AZP53
Low Phase Noise Sine Wave/CMOS
to LVPECL Buffer/Translator
www.azmicrotek.com
+1-480-962-5881
2
Request a Sample
Mar 2013, Rev 2.2

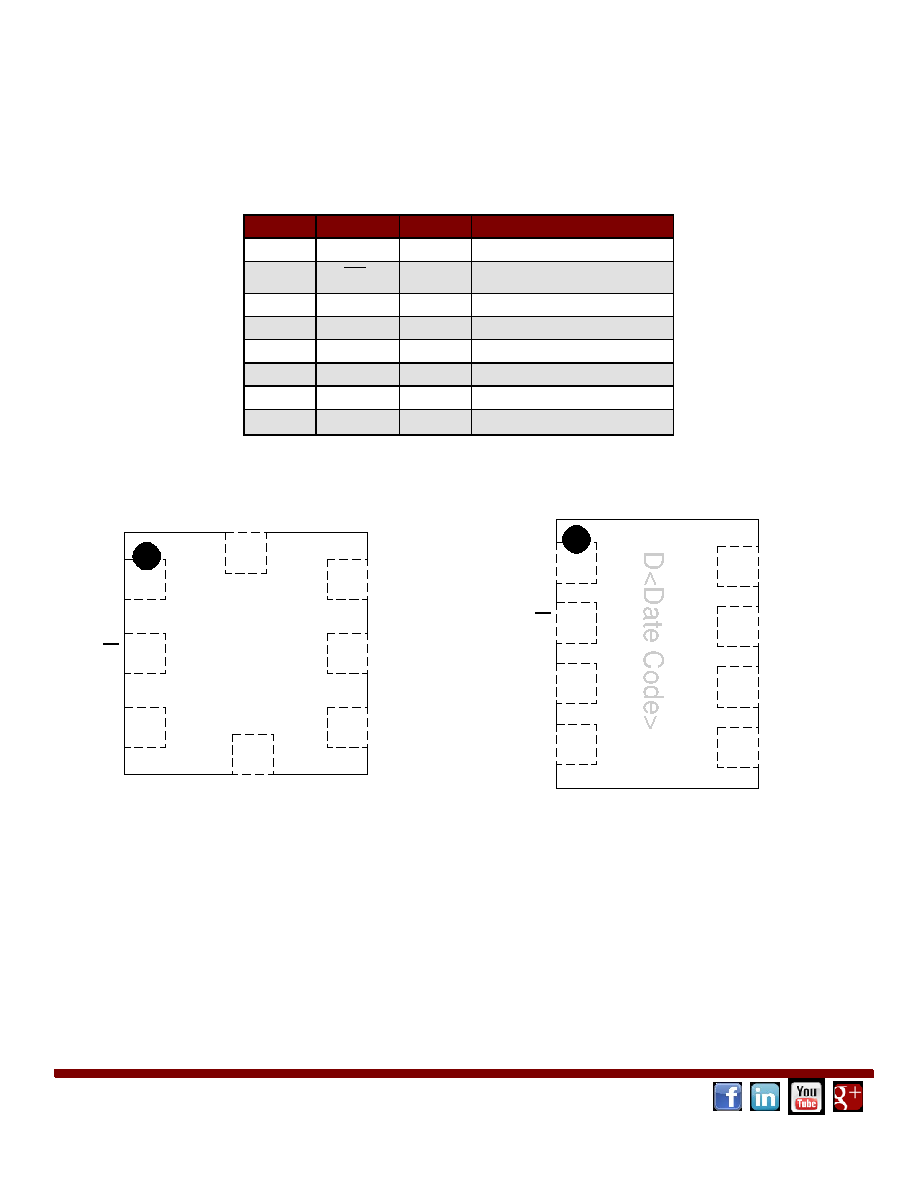

PIN DESCRIPTION AND CONFIGURATION
Table 1 - Pin Description
Pin
Name
Type
Function
1
Q
Output
LVPECL Output
2
Q
Output
LVPECL Output
3
EN
Input
Enable
4
GND
Power
Negative Supply
5
D
Input
Sine or CMOS Input
6
EN_SEL
Input
Enable Select
7
DIV_SEL
Input
Divide Select
8
VDD
Power
Positive Supply
1
Q
3
EN
2
Q
7
DIV_SEL
5
D
6
EN_SEL
D3
<Date Code>
8
VDD
4
GND
1
VDD
3
2
GND
4
8
6
7
5
Q
EN
Q
DIV_SEL
D
EN_SEL
Figure 1 - Pin Configuration for QFN8 & SON8, respectively
