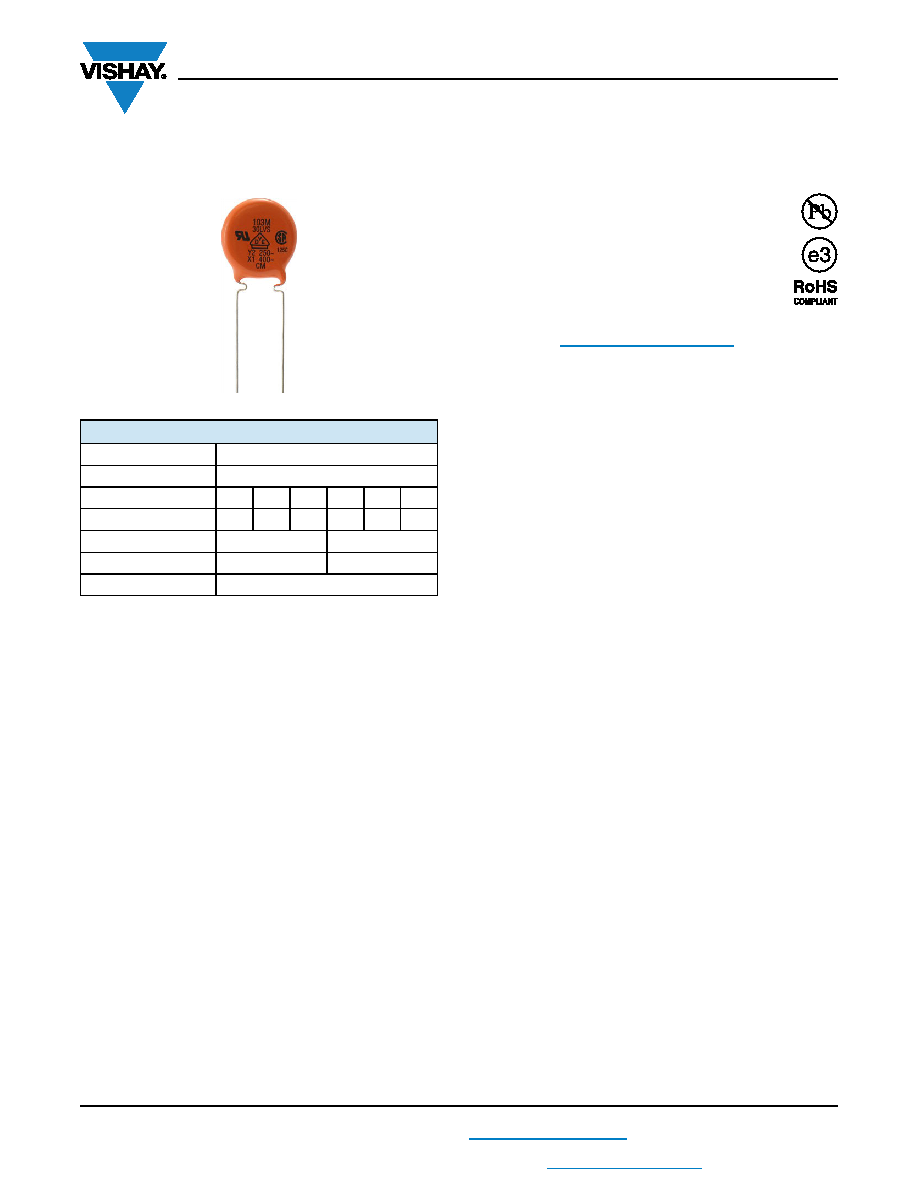

30LVS Series

www.vishay.com

Vishay Cera-Mite

Revision: 06-Jun-13

1

Document Number: 23104

For technical questions, contact: ceramitesupport@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

AC Line Rated Disc Capacitors

Class X1, 400 VAC/Class Y2, 300 VAC/250 VAC

INSULATION RESISTANCE

Min. 1000

F

TOLERANCE ON CAPACITANCE

± 20 %

DISSIPATION FACTOR

2.0 % max. at 1 kHz; 1 V

CERAMIC DIELECTRIC

Y5U, Y5V (Class 2)

CLIMATIC CATEGORY ACC. TO EN 60068-1

25/125/21

OPERATING TEMPERATURE RANGE

- 30 °C to + 125 °C

FEATURES

• Complying with IEC 60384-14 3rd edition

• High reliability

• Complete range of capacitance values

• Radial leads

• Singlelayer AC Disc capacitors

• Material categorization: For definitions of compliance

please see www.vishay.com/doc?99912

APPLICATIONS

• X1/Y2 according to IEC 60384-14.3

• Across-the-line

• Line by-pass

• Antenna coupling

DESIGN

The capacitors consist of a ceramic disc of which both sides

are silver-plated. Connection leads are made of tinned

copper having a diameter of 0.032" (0.81 mm) or 0.025"

(0.64 mm). The capacitors may be supplied with radial

kinked or straight leads having a lead spacing of 0.375"

(9.5 mm) or 0.250" (6.4 mm). The standard tolerance is

± 20 %. Coating is made of flame retardant epoxy resin in

accordance with “UL 94 V-0.”

CAPACITANCE RANGE

1.0 nF to 0.01 μF

RATED VOLTAGE

IEC 60384-14.3:

• X1:

400 VAC, 50 Hz

• Y2:

300 VAC, 50 Hz (LS  5.5 mm)

• Y2:

250 VAC, 50 Hz (LS < 5.5 mm)

DIELECTRIC STRENGTH BETWEEN LEADS

Component test:



2500 VAC, 50 Hz, 2 s

As repeated test admissible only once with:



2250 VAC, 50 Hz, 2 s

Random sampling test (destructive test):



2500 VAC, 50 Hz, 60 s

DIELECTRIC STRENGTH OF BODY INSULATION

2300 VAC, 50 Hz, 60 s (destructive test)

QUICK REFERENCE DATA

DESCRIPTION

VALUE

Ceramic Class

2

Ceramic Dielectric

Y5U

Y5V

Voltage (VAC)

250

300

400

250

300

400

Min. Capacitance (pF)

1000

4700

Max. Capacitance (pF)

10 000

Mounting

Radial
