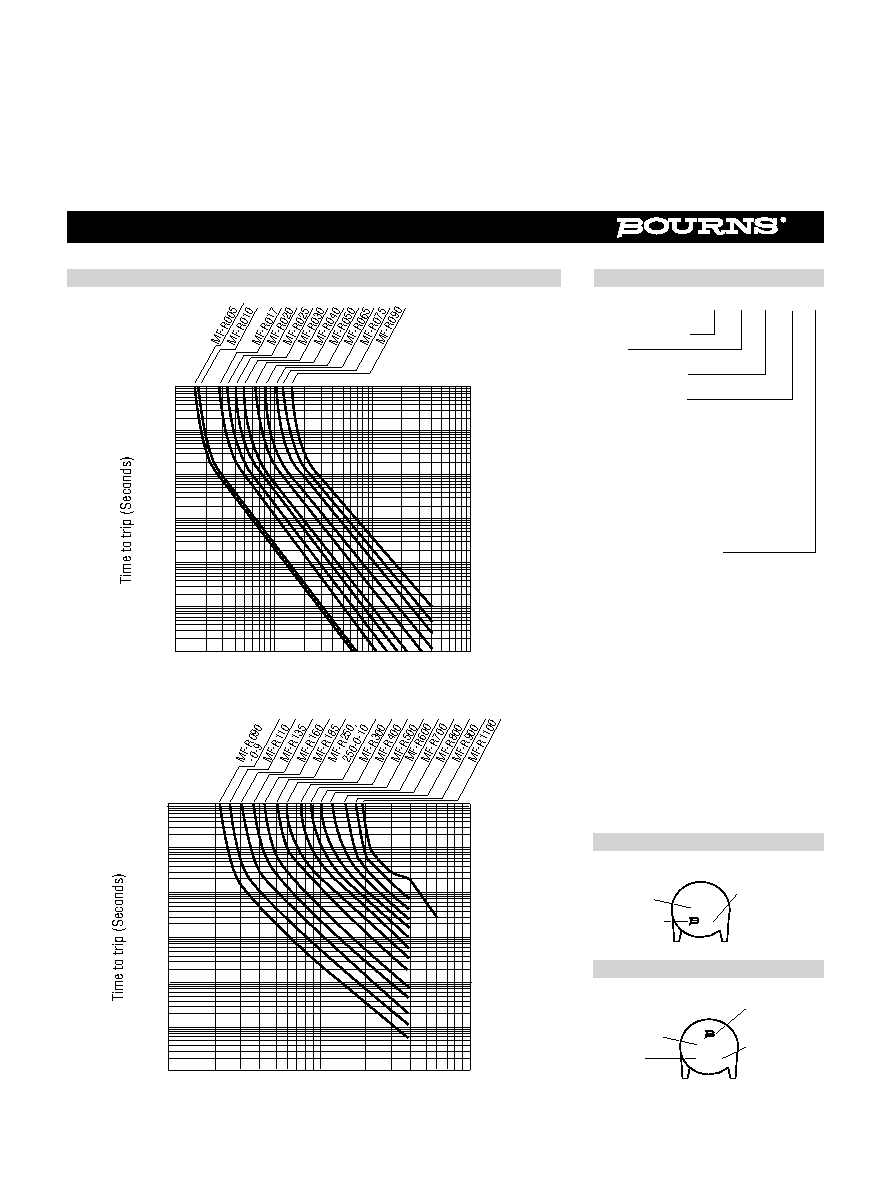

MF-R Series - PTC Resettable Fuses

Typical Time to Trip at 23 ºC

MF-R SERIES, REV. Z, 06/13

How to Order

MF - R 110 - 0 - 99

Product Designator

Series

R = Radial Leaded Component

Hold Current, Ihold

005-1100 (0.05 Amps - 11.0 Amps)

Packaging Options

- __ =

Bulk Packaging without part

number suffix option

- 0-99 =

Bulk Packaging with part

number suffix option

- 2 =

Tape and Reel without part

number suffix option*

- 2-99 =

Tape and Reel with part number

suffix option

- AP =

Ammo-Pak*

- 0-14 =

Kinked leads where straight

leads are standard

- 0-17 =

Straight leads where kinked

leads are standard

Part Number Suffix Option

- 99 =

As of date code April 1, 2005 all

MF-R models are RoHS

compliant. The suffix “-99”

can be used if a new part

number is required to reference

the RoHS compliance.

Examples:

MF-R110..................Bulk packaging

MF-R110-0-99 .........Bulk packaging

with part number

suffix option

MF-R110-2...............Tape and reel

packaging

MF-R110-2-99 .........Tape and reel

packaging with

part number

suffix option

MF-R090-0-9-99......Bulk packaging

with part number

suffix option

MF-R250-0-10-99....Bulk packaging

with part number

suffix option

*Packaged per EIA486-B

100

10

1

0.1

0.01

0.001

0.1

1

10

100

Fault Current (Amps)

100

10

1

0.1

0.01

0.001

1

10

100

Fault Current (Amps)

Typical Part Marking: MF-R005 - R025

Represents total content. Layout may vary.

025

0A

PART

IDENTIFICATION

MANUFACTURER'S

TRADEMARK

DATE CODE:

WEEK 1 OF 2000 = 0A

(YEAR & WEEK)

WEEK 27 OF 2000 = A0

(WEEK & YEAR)

Typical Part Marking: MF-R030 - R1100

Represents total content. Layout may vary.

R250

0180T

MANUFACTURER'S

TRADEMARK

PART

IDENTIFICATION

DATE CODE

(FIRST DIGIT =

LAST DIGIT OF YEAR;

NEXT THREE DIGITS =

DAY OF YEAR)

LOT NO.

(T = TAIWAN

S = CHINA)
