Regulatory Compliance

Feature

Test Method

Performance

Electrostatic Discharge (ESD) to the Electrical Pins Human Body Model

MIL-STD-883 Method 3015

Min +/- 2000V

Eye Safety

IEC 60825-1,2

Class 1

Parameter

Min

Max

Unit

Condition

Note

Link Distance with Extra Low Loss POF cable

0.1

50

meters

0°C to +85°C

5

Link Distance with Standard Loss POF cable

0.1

45

meters

0°C to +85°C

5

Notes:

1. Logic 1 input will turn the light on and the logic 0 will turn the light off.

2. TTL compatible data output.

3. Pin 5 and 8 are for mounting and retaining purposes, but are electrically connected.

4. It is recommended to connect this pin to ground to reduce coupling of electrical noise.

5. POF is HFBR-R/EXXYYYZ plastic (1 mm) optical fiber. Worst case attenuation used (0.23 dB/m for extra low loss POF and 0.27dB/m for standard loss

POF cable from 0°C to +85°C at 660 nm).

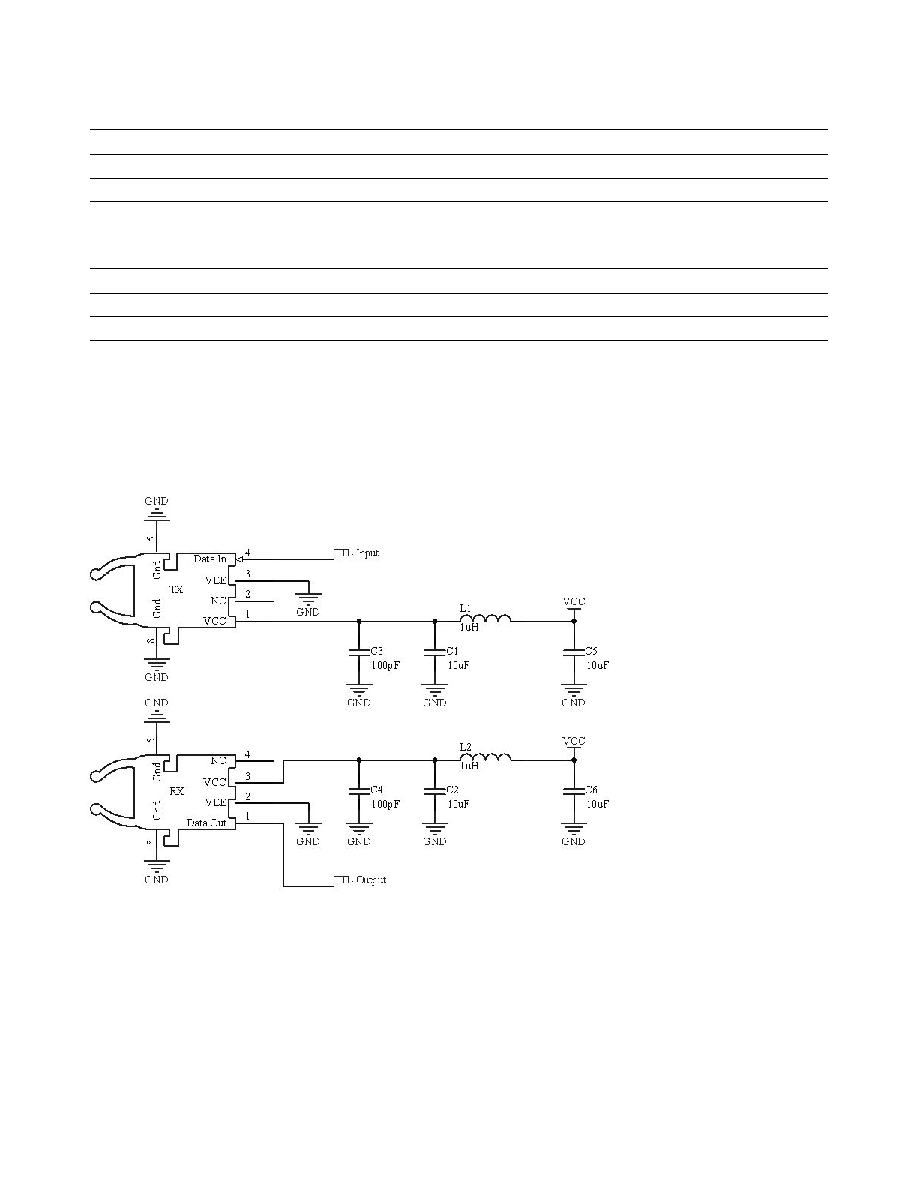

Figure 2. Recommended Transmitter and Receiver Application Circuit
