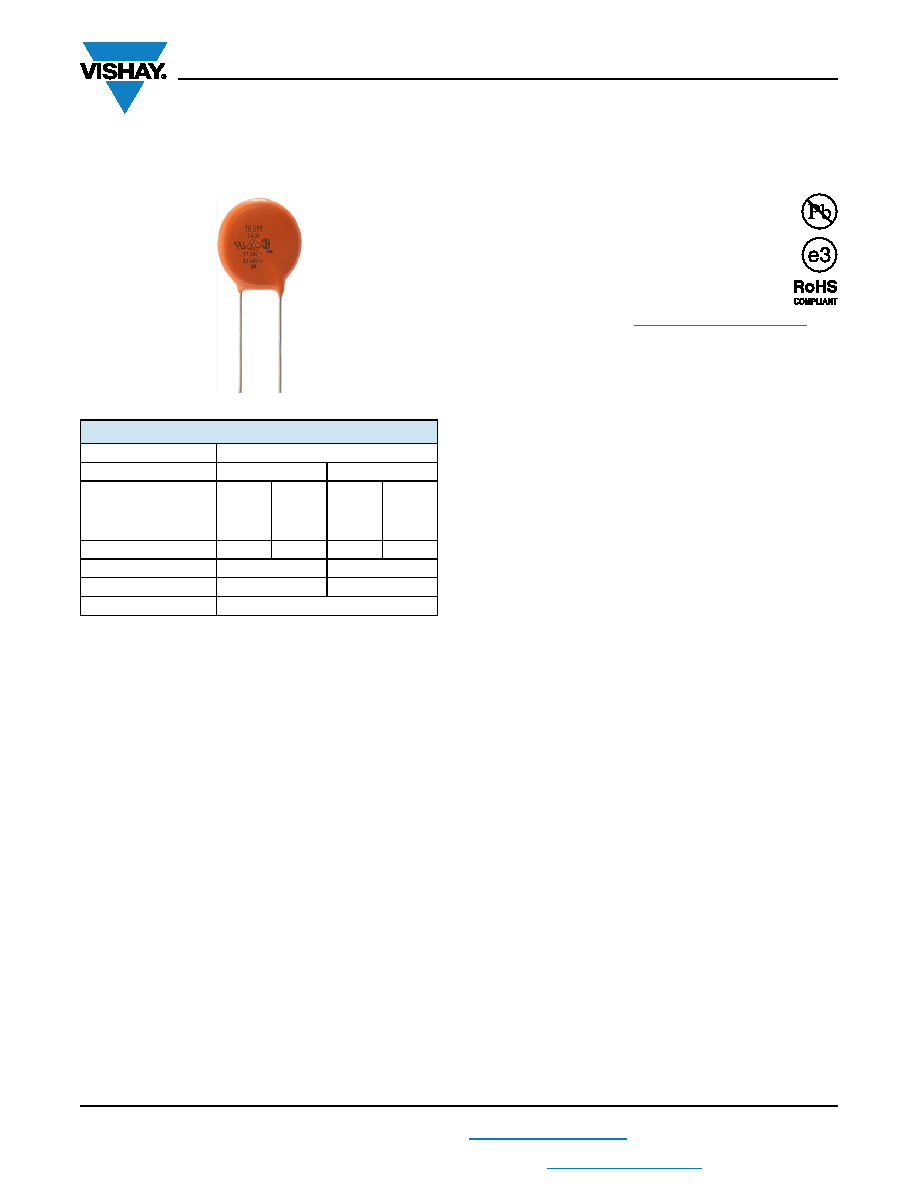

440L Series

www.vishay.com

Vishay Cera-Mite

Revision: 25-Jun-13

1

Document Number: 23102

For technical questions, contact: ceramitesupport@vishay.com

THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT

ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT www.vishay.com/doc?91000

AC Line Rated Ceramic Disc Capacitors

Class X1, 760 VAC/Class Y1, 500 VAC

INSULATION RESISTANCE

Min. 1000

F

TOLERANCE ON CAPACITANCE

± 10 %; ± 20 %

DISSIPATION FACTOR

2.0 % max. at 1 kHz; 1 V

CERAMIC DIELECTRIC

C0G, U2J, P3K, R3L (class 1)



X7R, Y5U (class 2)

OPERATING TEMPERATURE RANGE

- 30 °C to + 125 °C

CLIMATIC CATEGORY ACC. TO EN 60068-1

25/125/21

FEATURES

• Complying with IEC 60384-14 3rd edition

• High reliability

• Radial leads

• Singlelayer AC Disc capacitors

• Material

categorization:

For

definitions

of

compliance please see www.vishay.com/doc?99912

APPLICATIONS

• X1, Y1 according to IEC 60384-14.3

• Across-the-line

• Line by-pass

• Antenna coupling

DESIGN

The capacitors consist of a ceramic disc of which both sides

are silver-plated. Connection leads are made of tinned

copper having a diameter of 0.032" (0.81 mm). The

capacitors may be supplied with radial kinked or straight

leads having a lead spacing of 0.375" (9.5 mm). The

standard tolerances are ± 10 % or ± 20 %. Coating is made

of flame retardant epoxy resin in accordance with

“UL 94 V-0”.

CAPACITANCE RANGE

10 pF to 0.01 μF

RATED VOLTAGE

IEC 60384-14.3:

• X1:

760 VAC, 50 Hz

• Y1:

500 VAC, 50 Hz

DIELECTRIC STRENGTH BETWEEN LEADS

Component test:



4000 VAC, 50 Hz, 2 s

As repeated test admissible only once with:



3600 VAC, 50 Hz, 2 s

Random sampling test (destructive test):



4000 VAC, 50 Hz, 60 s

DIELECTRIC STRENGTH OF BODY

INSULATION

4000 VAC, 50 Hz, 60 s (destructive test)

QUICK REFERENCE DATA

DESCRIPTION

VALUE

Ceramic Class

1

2

Ceramic Dielectric

C0G,

U2J,

P3K,

R3L

C0G,

U2J,

P3K,

R3L

X7R,

Y5U

X7R,

Y5U

Voltage (VAC)

500

760

500

760

Min. Capacitance (pF)

10

68

Max. Capacitance (pF)

47

10 000

Mounting

Radial
