XC2404 데이터시트(PDF) 2 Page - Torex Semiconductor

부품명 XC2404
상세설명  1.6GHz Low Noise Amplifier
PDF  16 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  TOREX [Torex Semiconductor]
홈페이지  http://www.torex.co.jp
Logo TOREX - Torex Semiconductor

XC2404 데이터시트(HTML) 2 Page - Torex Semiconductor

  XC2404_12 Datasheet HTML 1Page - Torex Semiconductor XC2404_12 Datasheet HTML 2Page - Torex Semiconductor XC2404_12 Datasheet HTML 3Page - Torex Semiconductor XC2404_12 Datasheet HTML 4Page - Torex Semiconductor XC2404_12 Datasheet HTML 5Page - Torex Semiconductor XC2404_12 Datasheet HTML 6Page - Torex Semiconductor XC2404_12 Datasheet HTML 7Page - Torex Semiconductor XC2404_12 Datasheet HTML 8Page - Torex Semiconductor XC2404_12 Datasheet HTML 9Page - Torex Semiconductor Next Button
Zoom Inzoom in Zoom Outzoom out

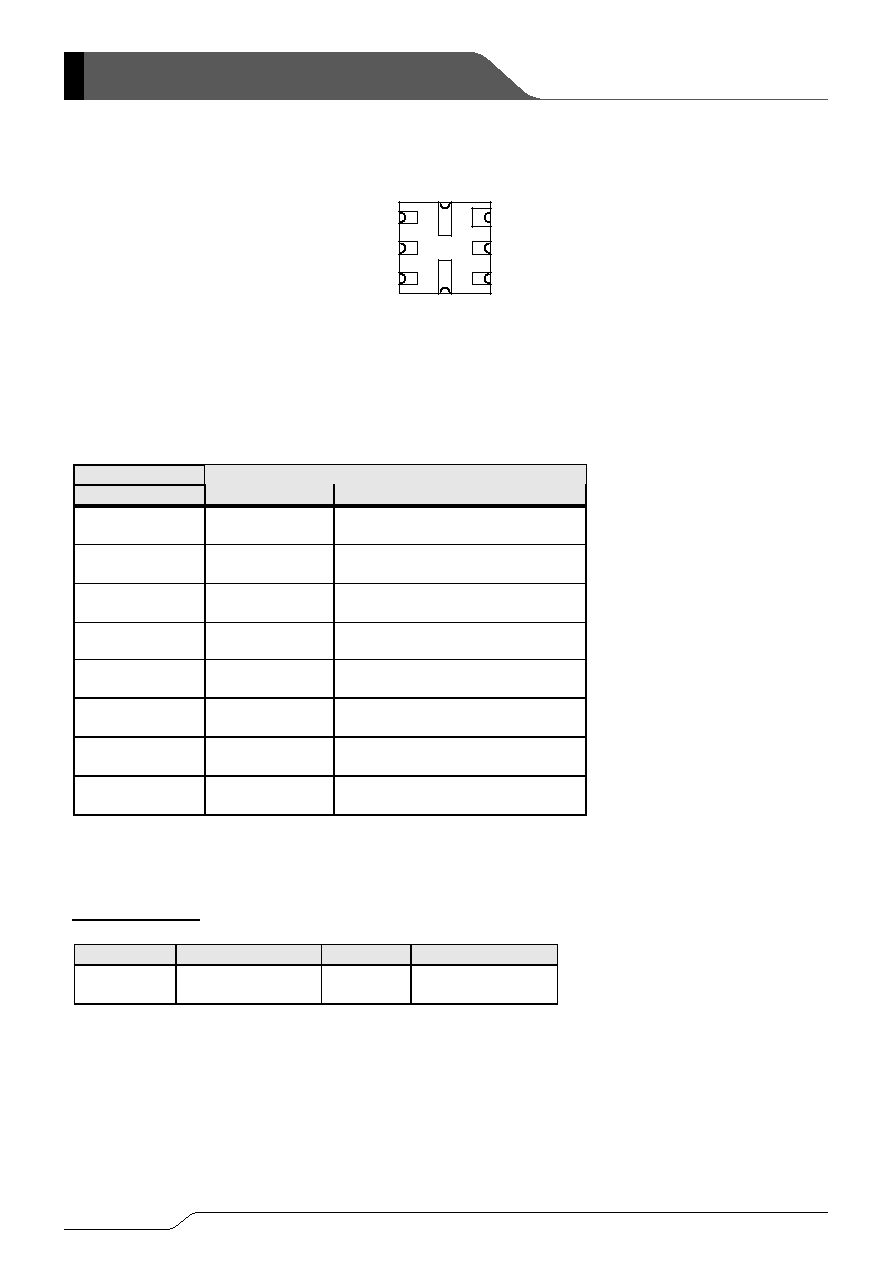

 2 / 16 page
background image
2/16
XC2404A816UR-G
DESIGNATOR
DESCRIPTION
SYMBOL
DESCRIPTON
①②-③
Packages
Taping Type
UR-G
USP-8A01
PIN NUMBER
USP-8A01
PIN NAME
FUNCTION
1
RF_IN
RF Signal Input
2
VSS1
Ground
3
VSS2
Ground
4
VSS3
Ground
5
RF_OUT
RF Signal Output
6
VDD3
Power Supply
7
VDD2
Power Supply
8
VDD1
Power Supply
■PIN CONFIGURATION
■PIN ASSIGNMENT
USP-8A01
（BOTTOM VIEW）
5
6
7
8
1
2
3
4
VDD1
VDD2
VDD3
VSS3
VSS2
VSS1
RF_OUT
RF_IN
■PRODUCT CLASSIFICATION
●Ordering Information
XC2404A816①②-③ (
*1)
(*1) The “-G” suffix indicates that the products are Halogen and Antimony free as well as being fully RoHS compliant.
