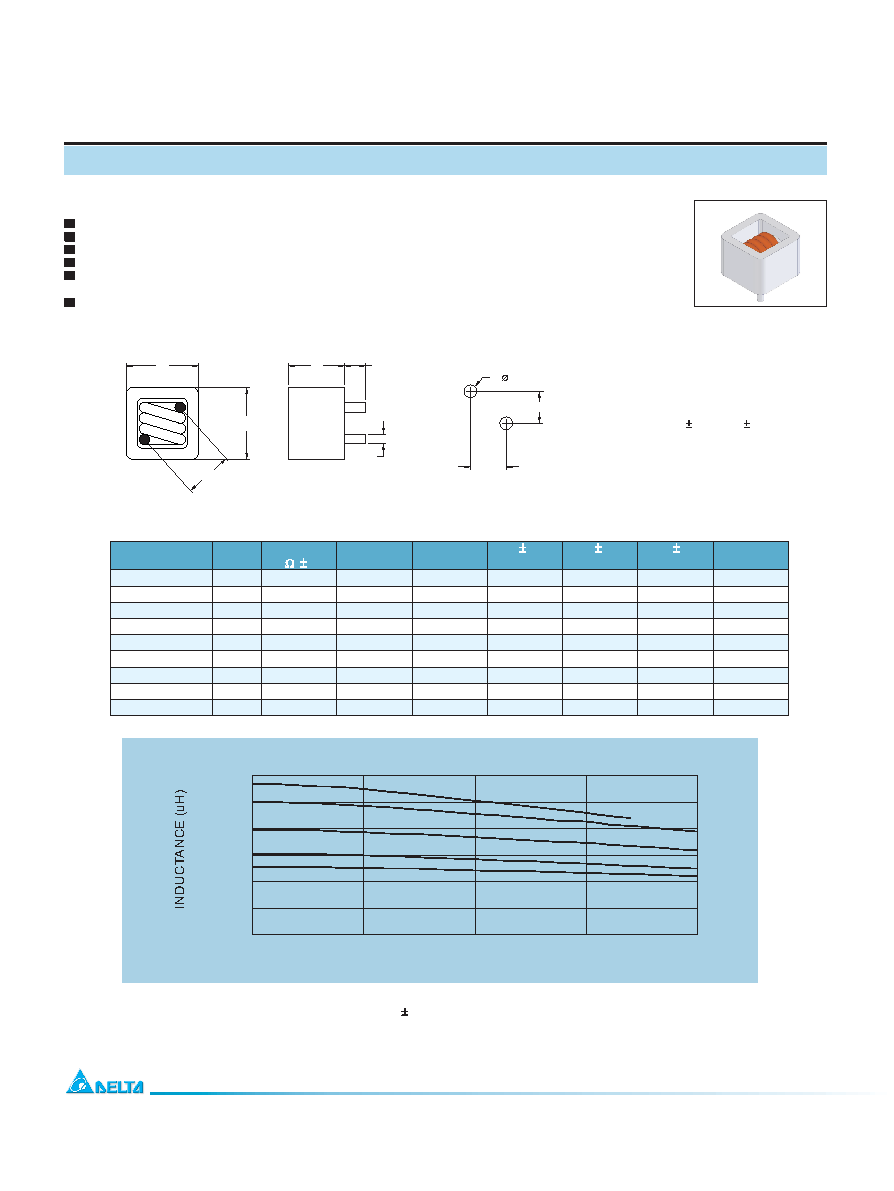

Through Hole Power Inductors

THAR0806 Type

Mechanical Dimension:

RoHS compliant.

High current ( lsat up to 40A ) though hole type.

Magnetically shielded, suitable for hight density mounting.

High energy storage and low DCR.

Ideal for power source circuits, DC-DC converter,

DC-AC inverters inductor application.

In addition to the standard versions shown here,

customized

inductors are available to meet your exact requirements.

Features

DELTA ELECTRONICS, INC.

(TAOYUAN PLANT CPBG) 252, SAN YING ROAD, KUEISAN INDUSTRIAL ZONE, TAOYUAN SHIEN, 333, TAIWAN, R.O.C.

TEL: 886-3-3591968; FAX: 886-3-3591991

http://www.deltaww.com

150

B

A

G

2x H

E

D

C

F

Electrical Characteristics : At 25 : 100KHz, 1V

oC

1. Lo is the initial inductance and the tolerance is 20%.

2. Isat is the DC current which cause the inductance drop less than 20% of its nominal inductance without current.

O

3. Irms is the DC current which cause the surface temperature of the part increase approximately 45 C.

OO

4. Operating temperature : -40 C to 125 C ( including self-temperature rise ).

RECOMMENDED PAD PATTERNS

UNIT : mm/inch

A = 8.20 / 0.323 Max.

B = 8.20 / 0.323 Max.

C = 3.50

0.5 / 0.138

0.020

D = 6.00 / 0.236 Max.

PART NO.

Isat

(Adc)

Irms

(Adc)

F 0.1

(mm/inch)

G 0.5

(mm/inch)

H Max.

(Mm/inch)

DCR

(m )

8%

(uH)

1

L

2

3

E 0.5

(mm/inch)

THAR0806-R47

0.47

2.6

34

19

6.3 / 0.248

0.8 / 0.031

4.5 / 0.177

1.2 / 0.047

THAR0806-0R6

0.60

2.6

30

19

6.3 / 0.248

0.8 / 0.031

4.5 / 0.177

1.2 / 0.047

THAR0806-0R8

0.80

3.0

27

18

6.3 / 0.248

0.8 / 0.031

4.5 / 0.177

1.2 / 0.047

THAR0806-1R0

1.00

4.7

22

15

6.3 / 0.248

0.7 / 0.028

4.5 / 0.177

1.1 / 0.043

THAR0806-1R2

1.20

4.7

21

15

6.3 / 0.248

0.7 / 0.028

4.5 / 0.177

1.1 / 0.043

THAR0806-1R5

1.50

6.0

15

12

6.8 / 0.268

0.6 / 0.024

5.0 / 0.197

1.0 / 0.039

THAR0806-1R8

1.80

10.4

14

10

6.8 / 0.268

0.5 / 0.020

5.0 / 0.197

0.9 / 0.035

THAR0806-2R0

2.00

10.4

12

9

6.8 / 0.268

0.5 / 0.020

5.0 / 0.197

0.9 / 0.035

THAR0806-2R5

2.50

11.5

10

8

6.8 / 0.268

0.5 / 0.020

5.0 / 0.197

0.9 / 0.035

0

0. 2

0. 4

0. 6

0. 8

1

1. 2

0

10

20

30

40

DC BIAS (A)
