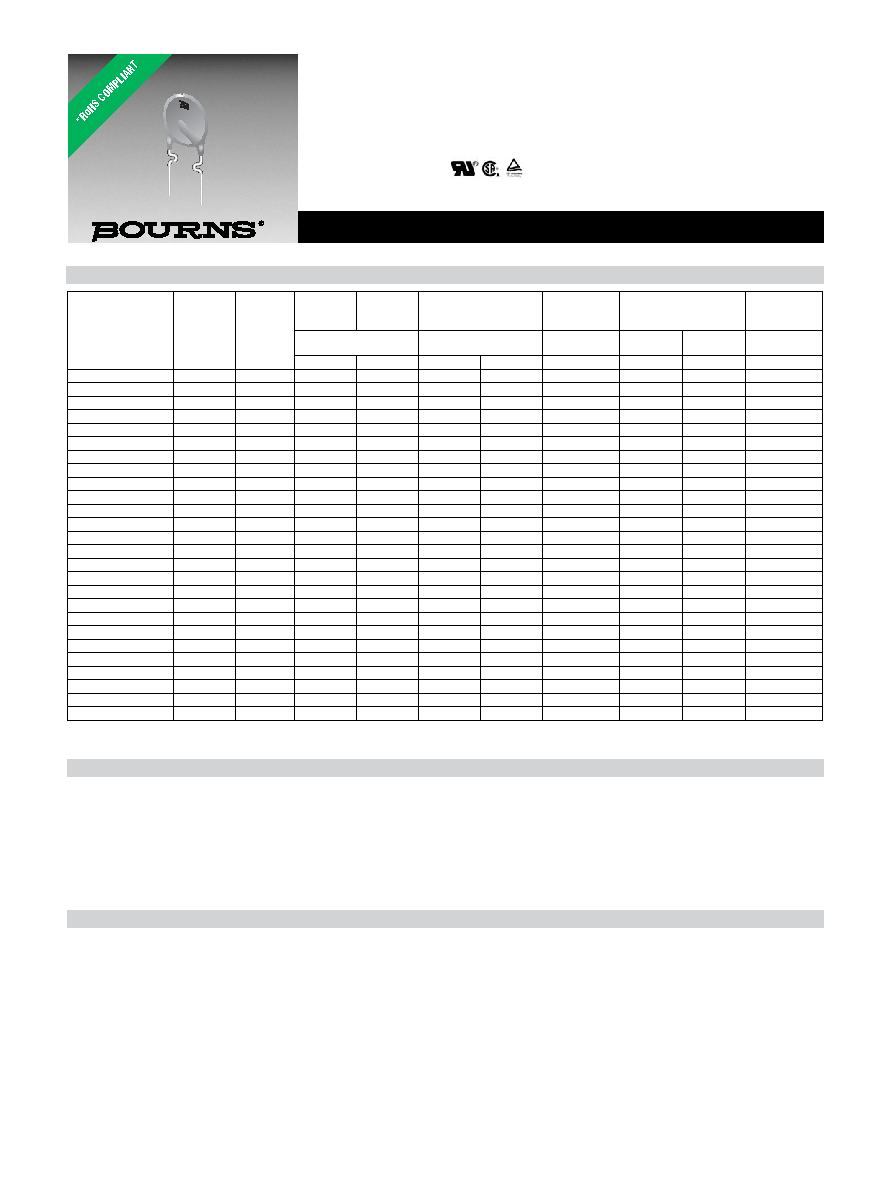

1 / 6 page  Features ■ Radial Leaded Devices ■ Cured, flame retardant epoxy polymer insulating material meets UL 94V-0 requirements ■ RoHS compliant* ■ Agency recognition: Applications Almost anywhere there is a low voltage power supply and a load to be protected, including: ■ Computers & peripherals ■ General electronics ■ Automotive applications MF-R Series - PTC Resettable Fuses *RoHS Directive 2002/95/EC Jan. 27, 2003 including annex and RoHS Recast 2011/65/EU June 8, 2011. Specifications are subject to change without notice. The device characteristics and parameters in this data sheet can and do vary in different applications and actual device performance may vary over time. Users should verify actual device performance in their specific applications. Environmental Characteristics Operating/Storage Temperature ...................... -40 °C to +85 °C Maximum Device Surface Temperature in Tripped State............................................ 125 °C Passive Aging .................................................. +85 °C, 1000 hours...........................................±5 % typical resistance change Humidity Aging................................................. +85 °C, 85 % R.H. 1000 hours .........................±5 % typical resistance change Thermal Shock ................................................ -40 °C to +85 °C, 10 times................................±10 % typical resistance change Solvent Resistance.......................................... MIL-STD-202, Method 215 ...............................No change Vibration .......................................................... MIL-STD-883C, Method 2007.1,.......................No change Condition A Test Procedures And Requirements For Model MF-R Series Test Test Conditions Accept/Reject Criteria Visual/Mech. .................................................... Verify dimensions and materials .......................Per MF physical description Resistance....................................................... In still air @ 23 °C.............................................Rmin ≤ R ≤ Rmax Time to Trip...................................................... 5 times Ihold, Vmax, 23 °C ...............................T ≤ max. time to trip (seconds) Hold Current .................................................... 30 min. at Ihold .................................................No trip Trip Cycle Life.................................................. Vmax, Imax, 100 cycles....................................No arcing or burning Trip Endurance ................................................ Vmax, 48 hours.................................................No arcing or burning UL File Number ............................................... E 174545 CSA File Number............................................. CA 110338 TÜV File Number............................................. R2057213 Electrical Characteristics Model V max. Volts I max. Amps Ihold Itrip Initial Resistance 1 Hour (R1) Post-Trip Resistance Max. Time to Trip Tripped Power Dissipation Amperes at 23 °C Ohms at 23 °C Ohms at 23 °C Amperes at 23 °C Seconds at 23 °C Watts at 23 °C Hold Trip Min. Max. Max. Typ. MF-R005** 60 40 0.05 0.10 7.3 11.1 22.0 0.5 5.0 0.22 MF-R010 60 40 0.10 0.20 2.50 4.50 7.50 0.5 4.0 0.38 MF-R017 60 40 0.17 0.34 2.00 3.20 8.00 0.85 3.0 0.48 MF-R020 60 40 0.20 0.40 1.50 2.84 4.40 1.0 2.2 0.40 MF-R025 60 40 0.25 0.50 1.00 1.95 3.00 1.25 2.5 0.45 MF-R030 60 40 0.30 0.60 0.76 1.36 2.10 1.5 3.0 0.50 MF-R040 60 40 0.40 0.80 0.52 0.86 1.29 2.0 3.8 0.55 MF-R050 60 40 0.50 1.00 0.41 0.77 1.17 2.5 4.0 0.75 MF-R065 60 40 0.65 1.30 0.27 0.48 0.72 3.25 5.3 0.90 MF-R075 60 40 0.75 1.50 0.18 0.40 0.60 3.75 6.3 0.90 MF-R090 60 40 0.90 1.80 0.14 0.31 0.47 4.5 7.2 1.00 MF-R090-0-9 30 40 0.90 1.80 0.07 0.12 0.22 4.5 5.9 0.60 MF-R110 30 40 1.10 2.20 0.10 0.18 0.27 5.5 6.6 0.70 MF-R135 30 40 1.35 2.70 0.065 0.115 0.17 6.75 7.3 0.80 MF-R160 30 40 1.60 3.20 0.055 0.105 0.15 8.0 8.0 0.90 MF-R185 30 40 1.85 3.70 0.040 0.07 0.11 9.25 8.7 1.00 MF-R250 30 40 2.50 5.00 0.025 0.048 0.07 12.5 10.3 1.20 MF-R250-0-10 30 40 2.50 5.00 0.025 0.048 0.07 12.5 10.3 1.20 MF-R300 30 40 3.00 6.00 0.020 0.05 0.08 15.0 10.8 2.00 MF-R400 30 40 4.00 8.00 0.010 0.03 0.05 20.0 12.7 2.50 MF-R500 30 40 5.00 10.00 0.010 0.03 0.05 25.0 14.5 3.00 MF-R600 30 40 6.00 12.00 0.005 0.02 0.04 30.0 16.0 3.50 MF-R700 30 40 7.00 14.00 0.005 0.02 0.03 35.0 17.5 3.80 MF-R800 30 40 8.00 16.00 0.005 0.02 0.03 40.0 18.8 4.00 MF-R900 30 40 9.00 18.00 0.005 0.01 0.02 45.0 ***20.0 4.20 MF-R1100 16 100 11.00 22.00 0.003 0.01 0.014 40.0 20.0 4.50 R 0180T 1 1 0 **CSA approval pending. ***Tested at 40 amps |
