AD8366
Rev. A | Page 23 of 28
AGILENT 34980A
MULTIFUNCTION SWITCH
(WITH 34950 AND 34921 MODULES)
AGILENT 34401A DMM
(IN DC I MODE FOR SUPPLY
CURRENT MEASUREMENT)
AGILENT E3631A POWER
SUPPLY
BAND PASS
AGILENT E8251D
SIGNAL GENERATOR
AGILENT E8251A
SIGNAL GENERATOR
AGILENT E4440A
SPECTRUM ANALYZER
COMBINER
RF SWITCH
MATRIX
KEITHLEY
RF SWITCH
MATRIX
KEITHLEY
AD8366
EVALUATION BOARD
BAND REJECT
IEEE
IEEE
CH1
RF IN
CH2
RF IN
CH1
RF OUT
CH2
RF OUT

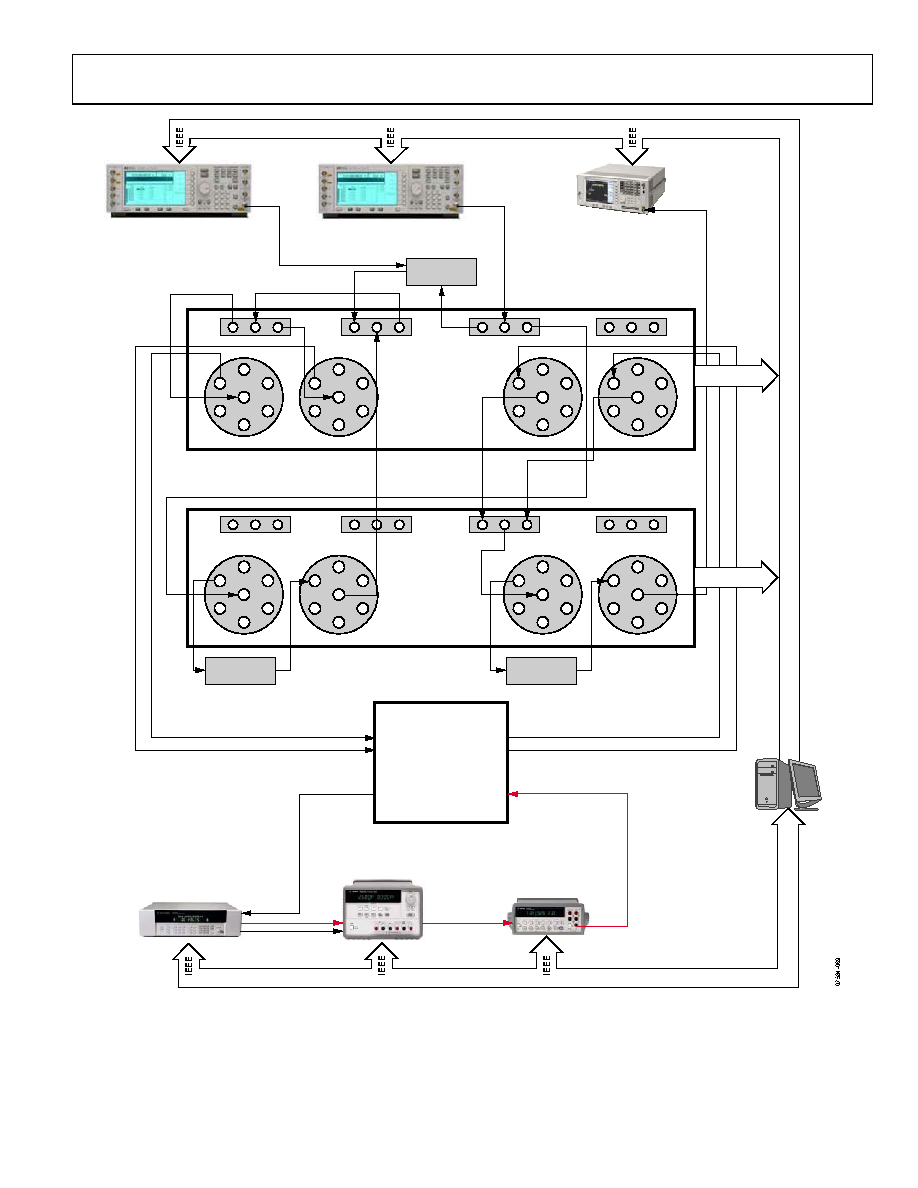

Figure 58. Characterization Setup, Single-Ended Measurements
