ST8024L

Applications

Doc ID 17709 Rev 5

27/35

7

Applications

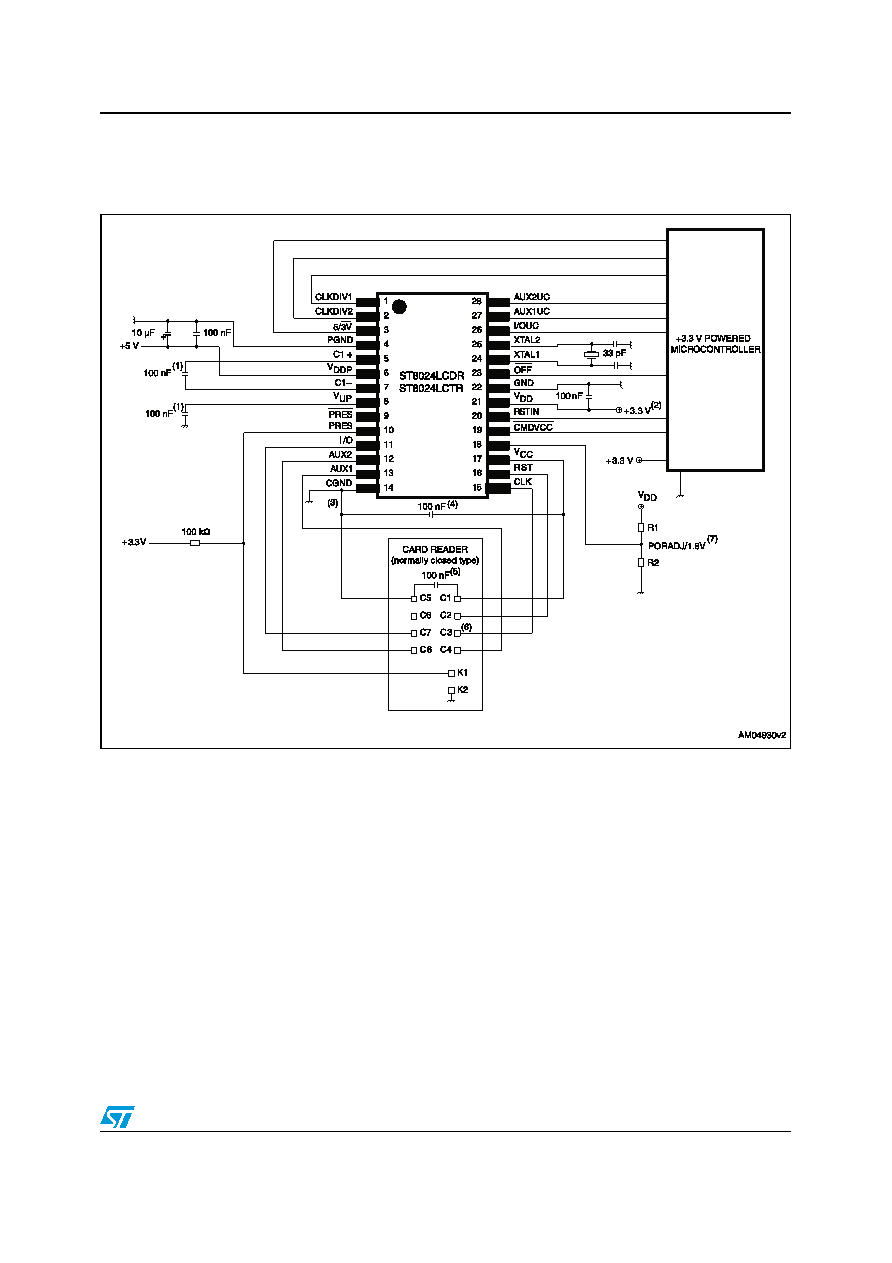

Figure 10.

Hardware hookup

1.

These capacitors must be < 350 m

Ω ESR and be placed near the IC (within 10 mm).

2.

3.

Make short, straight connections between CGND, C5, and the ground connection to the capacitor.

4.

Mount one ESR-type (< 350 m

5.

Mount one ESR-type (< 350 m

Ω) 100 nF capacitor close to C1 contact.

6.

The connection to C3 should be routed as far as possible from C2, C7, C4, and C8 and, if possible, surrounded by

grounded tracks.

7.

required, pin 18 should be connected to ground.
