STATEK CORPORATION 512 N. MAIN ST., ORANGE, CA 92868 714-639-7810 FAX: 714-997-1256 www.statek.com

10215 - Rev B

DESCRIPTION

An increasing number of high temperature applications

require the use of leaded (through hole) packaged oscillators.

For these applications, Statek offers the SQXO2ATHG

oscillator. These oscillators are designed to operate at

temperatures up to 200ºC with high shock survivability.

FEATURES

High temperature operation up to 200ºC

Excellent stability over temperature

High shock resistance

CMOS output

Through-hole leaded package

Reduces mechanical and thermal mounting stresses

Robust TO-39 package

32.768 kHz option available

Low current (500 µA at 25ºC)

Fast start-up (0.8 ms typical)

RoHS compliant

APPLICATIONS

Industrial, Computer & Communications

Downhole instrumentation

Rotary shaft sensors

Underground boring tools

Avionics applications

PIN CONNECTIONS

1.

2. Output

3. Ground

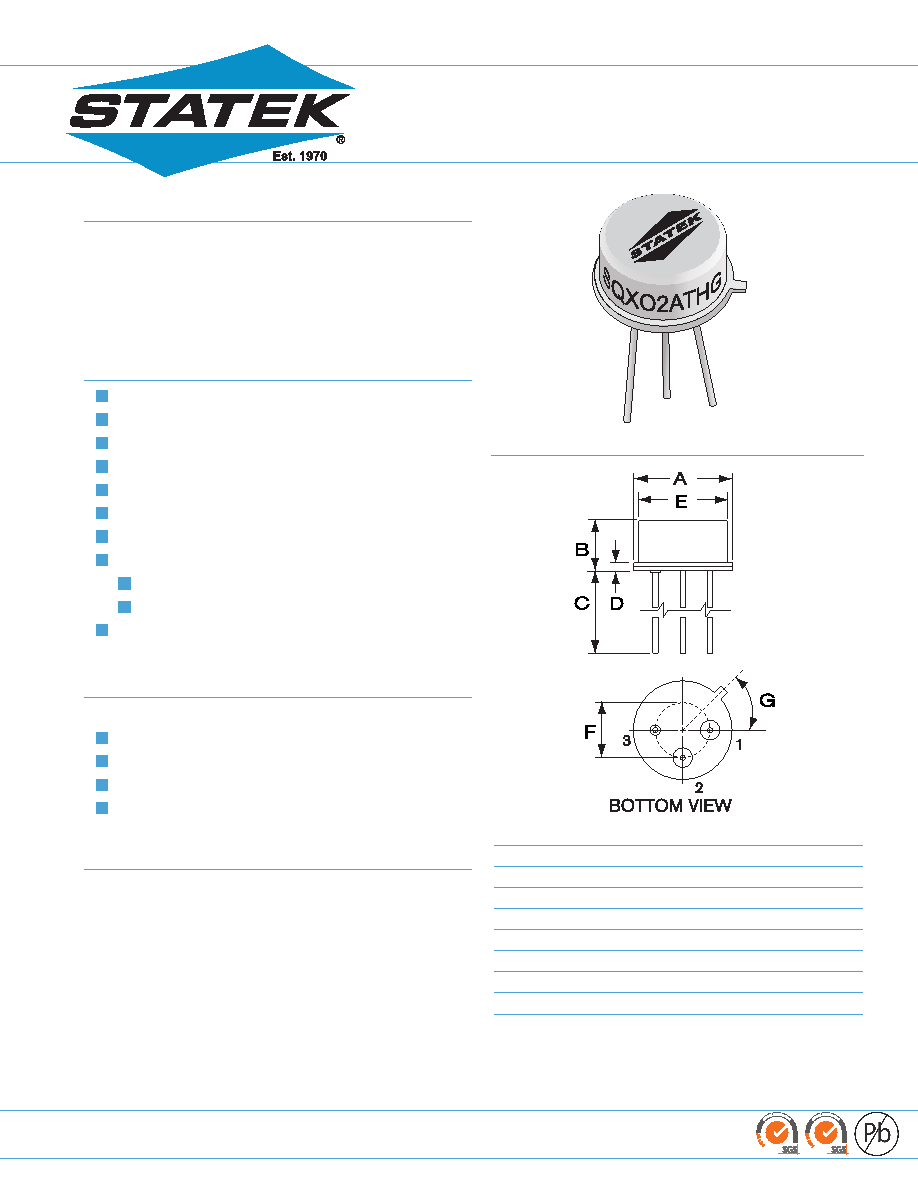

SQXO2ATHG OSCILLATOR

32.768 kHz to 50 MHz

DIM

inches

mm

A0.380 MAX.

9.65 MAX.

B0.185 MAX.

4.70 MAX.

C0.500 MIN.

12.70 MIN.

D0.029

0.74

E0.326 MAX.

8.28 MAX

F0.200 REF.

5.08 REF.

Note:

1. All metal parts gold plated

2. Leads are 0.019 in.[0.48mm] MAX.

3. Leads are gold plated (SM1 termination)

PACKAGE DIMENSIONS

TOP VIEW
