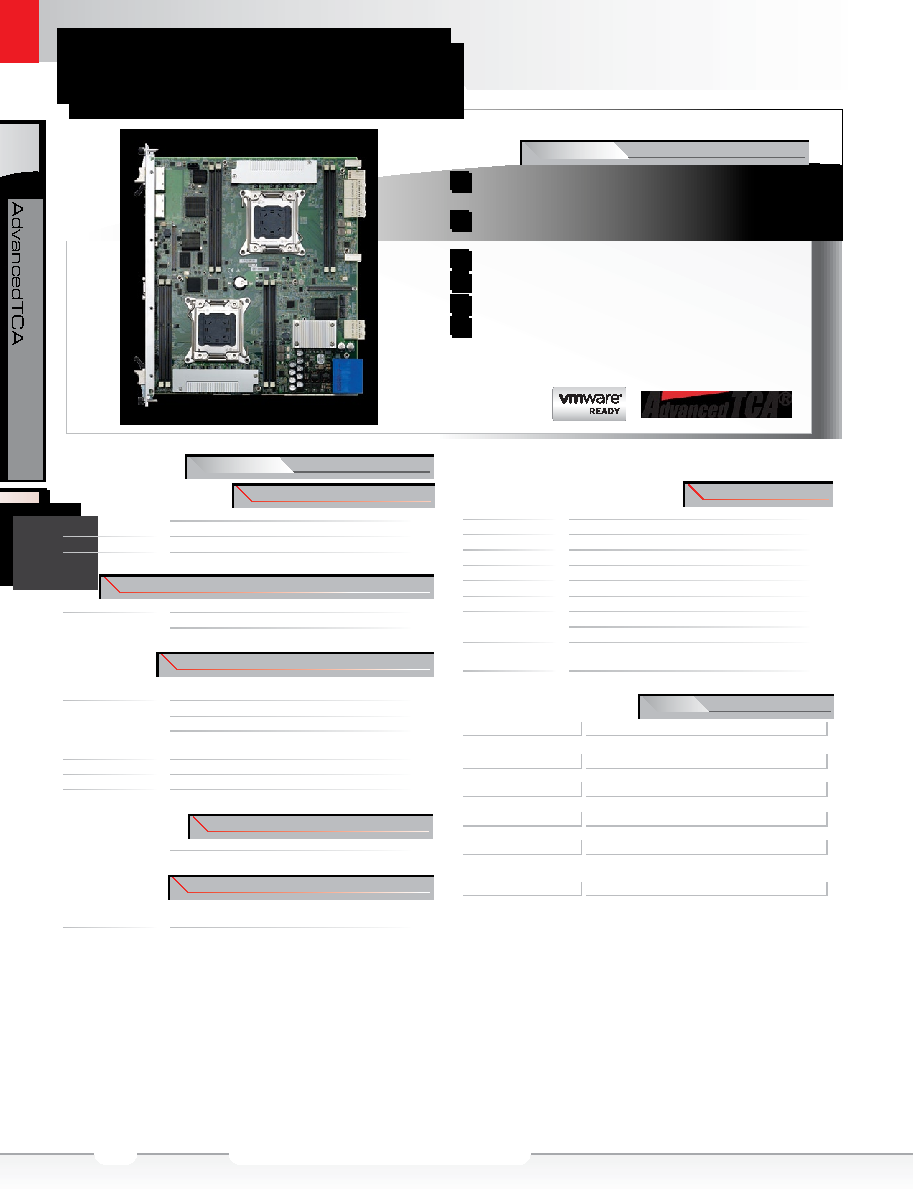

aTCA-6250

Specifications

CPU / Chipset / Memory

CPU

Two Intel® Xeon® E5-2658 (8C/16T) (Socket R)

Two Intel® Xeon® E5-2648L (8C/16T) (Socket R)

Chipset

Intel® C604 PCH

Memory

Eight DDR3-1600 240-pin VLP RDIMM sockets, up to 128 GB

BIOS

Chip

AMI BIOS on SPI flash memory

Features

Intel® PXE pre-boot

Remote Console

I/O Interfaces

Graphics

Silicon Motion SM750, PCI-E x1, up to 1920 x 1440

resolution

Ethernet

Dual 10/100/1000BASE-T Base Interface channels

Dual 10GBASE-KX4 Fabric Interface channels

Quad 10/1001000BASE-T Egress Ports or Quad SFP GbE

Egress ports (optional)

Storage

On-board bootable 16GB SATA DOM, up to 32G

USB

Two USB 2.0 ports on front panel

Front Panel I/O

VGA, USB1/2, LAN1/2/3/4, COM1/2 (mini-USB)

PICMG Standards

AdvancedTCA

PICMG 3.0 R3.0

PICMG 3.1 Ethernet Over PICMG 3.0, Option 9

Other Features

Packet Processing

Optional hardware offload for packet processing acceleration

Acceleration daughter card

Operating System

Server 2008 R2, Red Hat Enterprise Linux 6.2

Mechanical and Environmental

Form Factor

PICMG 3.0 R3.0 AdvancedTCA

Dimension

322.25mm x 280mm x 6HP (L x W x H)

Weight

3.85KG

Operating Temp.

0°C to 55°C

Storage Temp.

-40°C to 70°C

Humidity

5% to 95%, non-condensing

Shock

20G peak-to-peak, 11ms duration, non-operating

Vibration

Non-operating: 1.88Grms, 5-500Hz each axis

Operating: 0.5Grms, 5-500Hz each axis

Power Consumption

Max. 300W with dual Intel® E5-2658 CPU/250W with dual

Intel® E5-2648L CPU

Certification

FCC, CE, UL, NEBS Level 3 (design)

Dual Intel® Xeon® E5-2658/2648L

10 Gigabit Ethernet AdvancedTCA® Processor Blade

Features

Two Intel® Xeon® E5-2658/ 2648L (8C/16T)

processors

Eight memory sockets support VLP DDR3-1600

REG/ECC up to 128 GB

Intel® C604 PCH

Dual 10GBASE-KX4 Fabric Interface channels

Intel® Hyper-Threading Technology

Intel® QuickPath Interconnect

Ordering Information

Model Number

Description/Configuration

aTCA-6250/S2658

Single 8-core Intel® Xeon® E5-2658 2.1GHz 10GbE

processor blade

aTCA-6250/S2658/M8G

Single 8-core Intel® Xeon® E5-2658 2.1GHz 10GbE

processor blade, DDR3-1600 VLP RDIMM 8GB x1

aTCA-6250/D2658

Dual 8-core Intel® Xeon® E5-2658 2.1GHz 10GbE

processor blade

aTCA-6250/D2658/M32G

Dual 8-core Intel® Xeon® E5-2658 2.1GHz 10GbE

processor blade, DDR3-1600 VLP RDIMM 8GB x4

aTCA-R6270

aTCA-R6270 RTM with 1x RJ45 Serial Port, 2x USB 2.0

Port, 2x SFP+ 10GbE Port and 2x SAS/SATA HDD Bay

(Hot Swappable)
