http://www.adlinktech.com/cPCI/

3-17

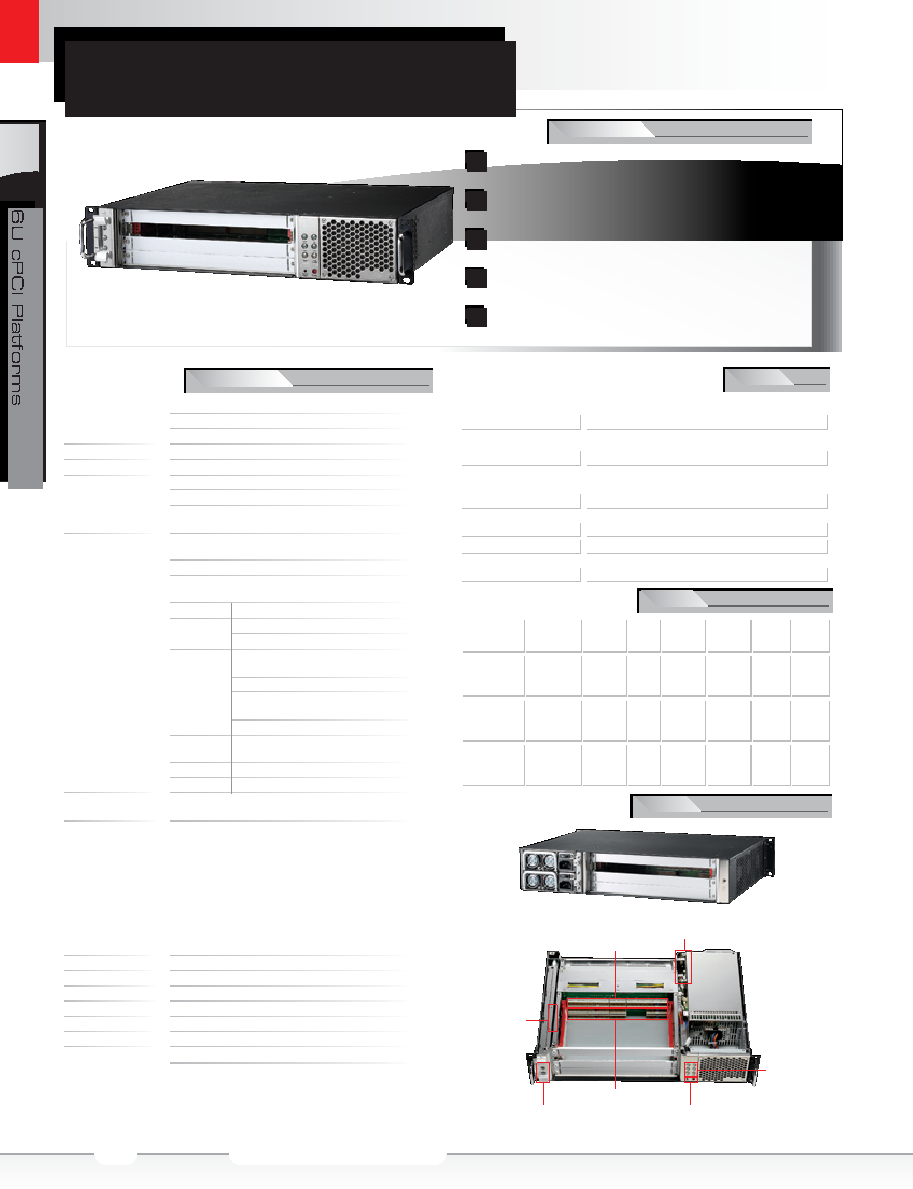

Specifications

Enclosure

EIA RS-310C 19” 2U high Rackmount enclosure

Coated metal plate outer covering

Guarded power switch and alarm reset button

CompactPCI® Standards 2.0 R3.0, 2.1 R2.0, 2.5 R1.0

Form Factor

6U CompactPCI® with 80 mm depth rear I/O

Backplane

cBP-6103R: 3-slot 32-bit 6U cPCI CT bus backplane

cBP-6403R: 3-slot 64-bit 6U cPCI CT bus backplane

cBP-6403R/N110: 3-slot 64-bit 6U cPCI without CT bus

backplane

Power Supply

300 W +300 W dual AC-input mini redundant power supplies

with cooling fan

Active PFC (full range), meets IEC-1000-3-2 CLASS D

Dual-AC inlet with EMI noise filter: FCC Class B, CISPR22

Class B

Cooling

Two 40 mm DC fans per module

AC Input

Full Range, 100~220 VAC (±10%)

Frequency Range: 47-63 Hz

DC Output

32 A @ +5 V, 20 A @ +3.3 V, 16 A @ +12 V,

0.8 A @ -12 V, 0.5 A @ -5 V, 1.5 A @ +5 Vsb

Maximum Total Output for +5 V and +3.3 V: 35 A

Maximum Total Output for +5 V, +3.3 V and

+12 V: 285 W

Efficiency: 63% at 115 V, full load

Temperature Operating 0˚C to 40˚C, Storage -20˚C to 80˚C

Range

Certifications UL 1950, CSA 22.2 NO/ 950, TÜV IEC 950

Dimensions

220 x 120 x 85 (mm, H x W x D)

LED Indicators

Six LEDs indicate power voltage status on +3.3 V, +5 V,

+12 V and -12 V, fan status and temperature alarm

Cooling System

Front access hot swappable fan tray with three fan modules

for exhaust

•Fantype:12VDCbrushless

•Ratedspeed:4000RPM

•Ratedcurrent:0.22A(Max0.33A)

•Maxairflow:48.2CFM

•Acousticalnoise:41dBA

•MTBF:70,000hrs

•ThreeLEDsindicatefanstatus

Dimensions

484.1 x 88.1 x 358.8 (mm, W x H x D, w/ handle)

Weight

17.1 kg/38 lbs

Operating Temp.

0˚C to 40˚C

Storage Temp.

-20˚C to 80˚C

Humidity

5% to 95%, non-condensing

Shock

15 G peak to peak, 11 ms duration, non-operation

Vibration

Non-operation: 1.88 Grms, 5-500 Hz,each axis

Operation: 0.50Grms, 5-500Hz, each axis, tested with

2.5” HDD

2U Rackmount Chassis with Dual AC-Input

Mini Redundant Power Supplies

Features

19” Rackmount, 2U height for 6U cPCI boards

with 80 mm rear I/O

Standard 6U CompactPCI® and PICMG® 2.5

H.110 CT Bus

PICMG® 2.1 Hot Swap compliant 32/64-bit 3-slot

CompactPCI® backplane with P3 & P5 rear I/O

Built-in 300 W + 300 W Dual AC-input

mini redundant power supply units

LED indicators for power status, fan status,

temperature alarm

Ordering Information

Mechanical Layout

cPCIS-6235R Series

Rear View

Alarm Module

Top-side

System Slot

Two Peripheral Slots

Guarded Power Switch and Alarm

Reset Button

Voltages and

Alarm LEDs

Hot Swappable Fan Tray

Module with LEDs

Thermal Sensor

Recommended Configurations

CPU Board

(System slot)

Rear I/O Board

cPCIS-6235R

cPCI-6615, cPCI-6615D

cPCI-R6002

cPCIS-6235R/64

cPCI-6510, cPCI-6510V

cPCI-R6002(D), cPCI-R6100, cPCI-R6110,

cPCI-R6210, cPCI-R6200, cPCI-R6700(D)

cPCI-6880, cPCI-6880P

cPCI-R6000P, cPCI-R6002(D), cPCI-R6100,

cPCI-R6110, cPCI-R6200, cPCI-R6700

cPCI-6870

cPCI-R6101, cPCI-R6111

cPCI-6210, cPCI-6210D

cPCI-R6002(D), cPCI-R6100, cPCI-R6110,

cPCI-R6200, cPCI-R6700D

Model Number

cPCI Bus

PSU Type

CMM

PSU MAX

AC-

INPUT

H.110

Alarm

Board

cPCIS-6235R

32-bit/33MHz ATX

--

300W

2

Y

Basic

Alarm

Module

cPCIS-6235-

R/64

64-bit/66MHz ATX

--

300W

2

Y

Basic

Alarm

Module

cPCIS-6235-

R/64/N110

64-bit/66MHz ATX

--

300W

2

N

Basic

Alarm

Module
