API840 데이터시트(PDF) 10 Page - Aplus Intergrated Circuits

부품명 API840
상세설명  32 to 40 SEC INSTANT VOICE ROM
PDF  10 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
제조업체  APLUS [Aplus Intergrated Circuits]
홈페이지  http://www.aplusinc.com.tw
Logo APLUS - Aplus Intergrated Circuits

API840 데이터시트(HTML) 10 Page - Aplus Intergrated Circuits

Back Button API840 Datasheet HTML 2Page - Aplus Intergrated Circuits API840 Datasheet HTML 3Page - Aplus Intergrated Circuits API840 Datasheet HTML 4Page - Aplus Intergrated Circuits API840 Datasheet HTML 5Page - Aplus Intergrated Circuits API840 Datasheet HTML 6Page - Aplus Intergrated Circuits API840 Datasheet HTML 7Page - Aplus Intergrated Circuits API840 Datasheet HTML 8Page - Aplus Intergrated Circuits API840 Datasheet HTML 9Page - Aplus Intergrated Circuits API840 Datasheet HTML 10Page - Aplus Intergrated Circuits
Zoom Inzoom in Zoom Outzoom out
 10 / 10 page
background image
10
Notes:
The following are typical values:
1. R
OSC = 2.0 M OHM.
2. B for N (NPN transistor) > 130.
3. SP = 8 OHM 1/4W.
4. Piezo buzzer resonant frequency = 1 KHz.
APPLICATION CIRCUITS
Vcc
GND
TG1
TG2
TG3
TG4
OSC
COUT
SP
ROSC
ROSC
Vcc
GND
OSC
CDS
IRP
SBT
COUT
SP
SW4
SW3
SW7
SW6
SW5
SW8
SW2
SW1

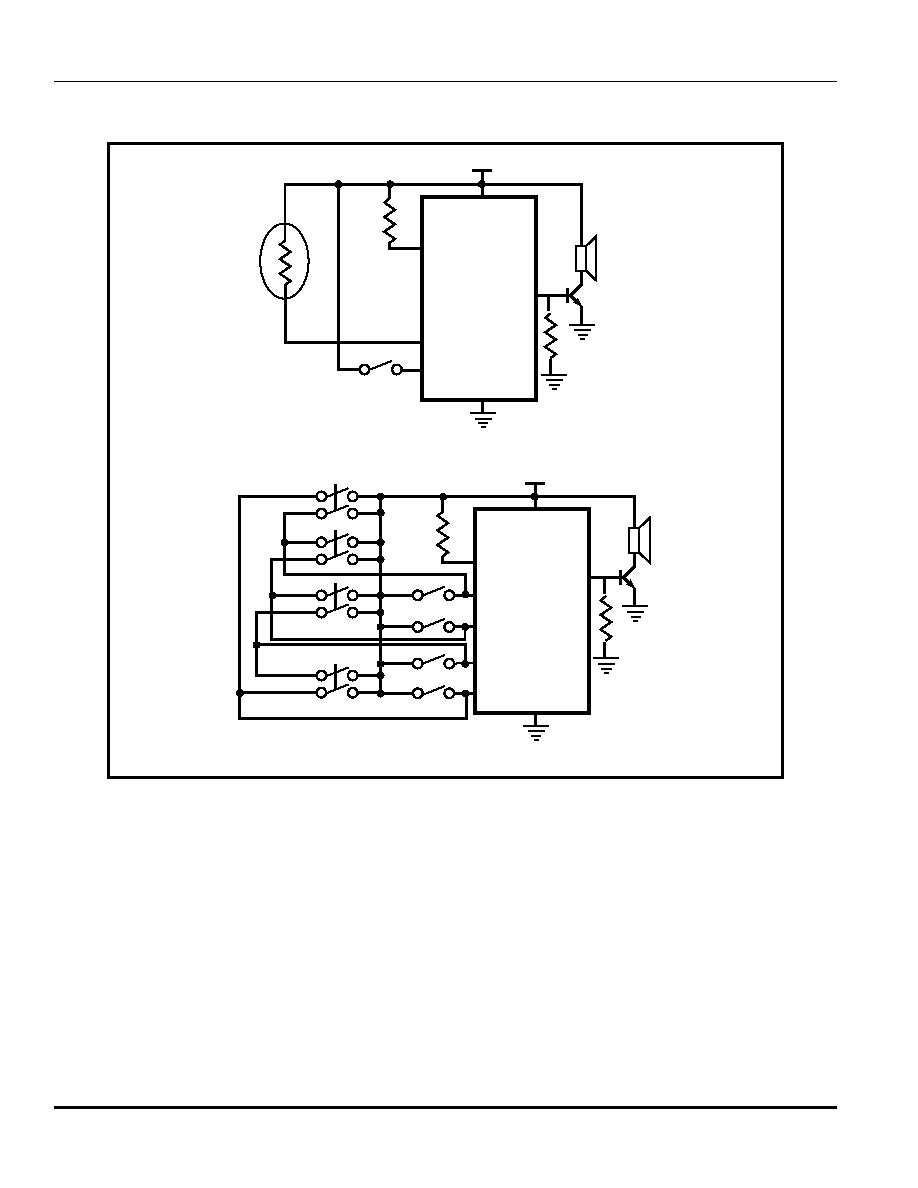

Figure 6. CDS Application and Additional Trigger
APLUS
API840N
R
R



Html Pages

1 2 3 4 5 6 7 8 9 10
