3

Application Circuit Examples

The application circuits contain external components, which are needed for overvoltage, reverse polarity, and

short circuit protection.

Note:

Check also the available 'ZSC31150 Application Notes' for application examples and board layout.

Table 3.1:

Application Circuit Parameters

Symbol

Parameter

Min

Typ

Max

Unit

Notes

C1

C

100

470

nF

C2

C

100

nF

C3

18, 2

C

4

47

160

nF

The value of C3 is the sum of the load

capacitor and the cable capacitance

C4, C5

19

C

0

10

nF

Recommended to increase EMC immunity.

The value of C4, C5 is the sum of the load

capacitor and the cable capacitance

R1

10

kΩ

R

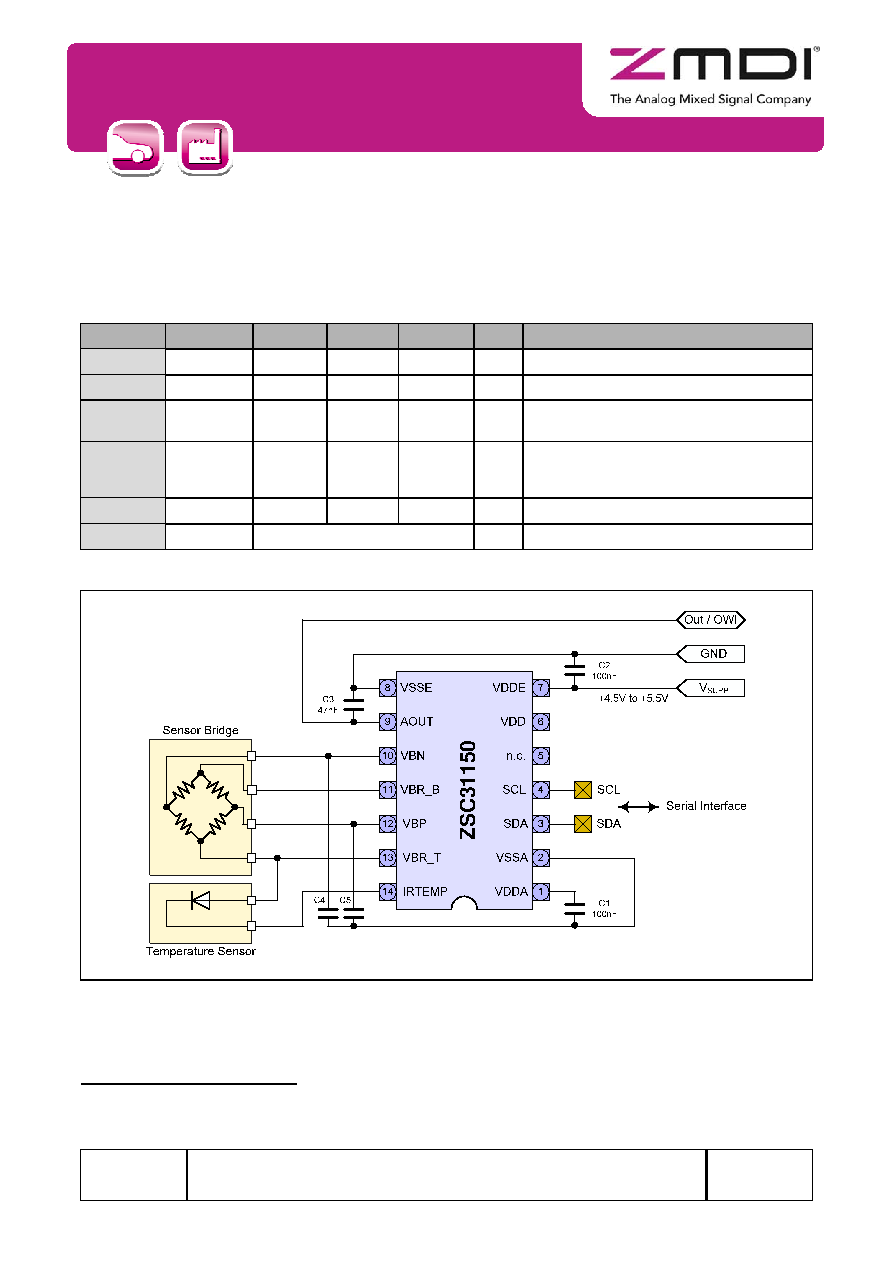

Figure 3.1:

Bridge in Voltage Mode, External Diode Temperature Sensor

Refer to chapter 1.2

Ω

18

value of C3 summarizes load capacitor and cable capacity

19

higher values for C3, C4 and C5 increase EMC immunity
