ADM6821/ADM6822/ADM6823/ADM6824/ADM6825
Rev. 0 | Page 7 of 12
TYPICAL PERFORMANCE CHARACTERISTICS
TEMPERATURE (°C)
120
–40
–20
0
20
40
60
80
100
10.0
9.5
7.5
7.0
6.5
9.0
8.5
8.0
6.0
5.5
5.0
4.5
4.0
3.5
VCC = 5V
VCC = 3.3V
VCC = 1.5V

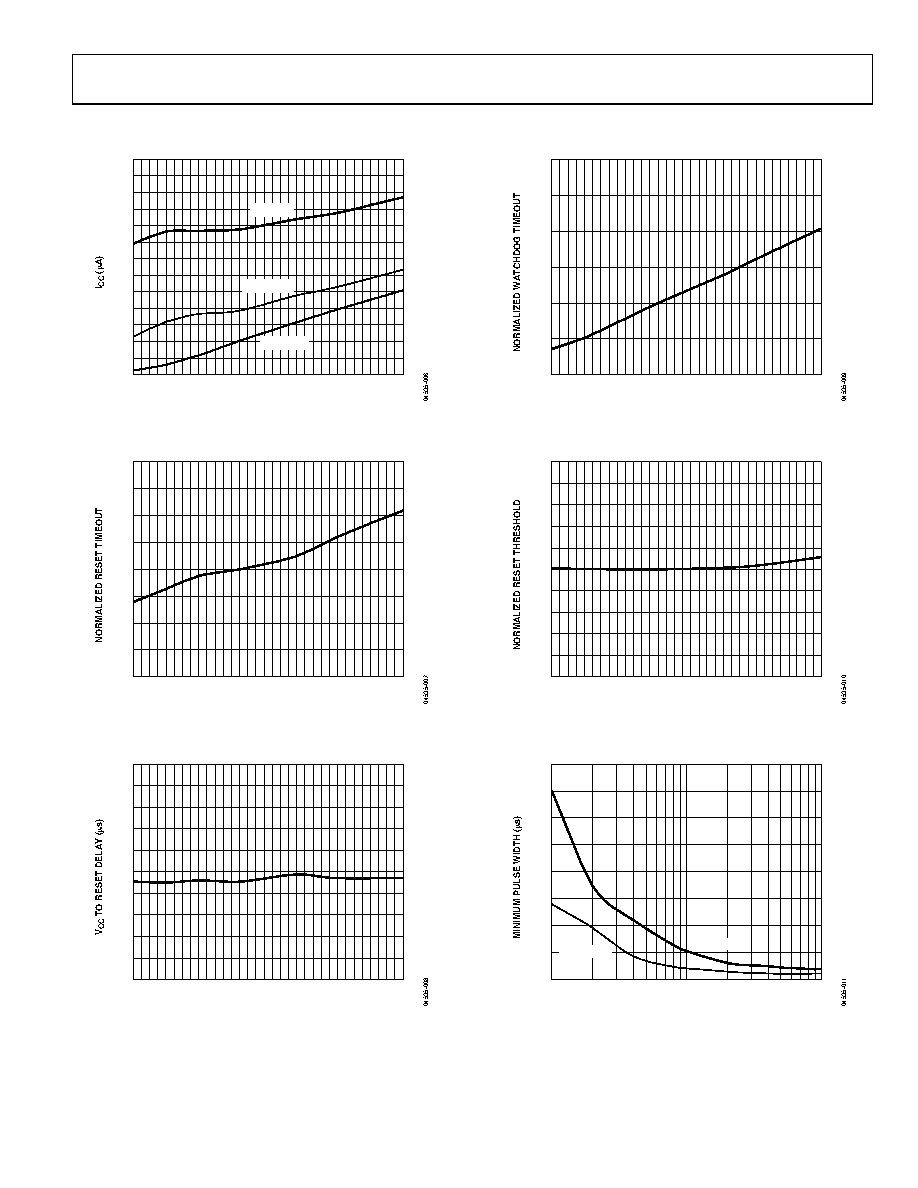

Figure 6. Supply Current vs. Temperature
TEMPERATURE (°C)
120
–40
0
–20
40
20
100
80
60
1.20
1.15
1.10
1.05
0.95
1.00
0.90
0.85
0.80
Figure 7. Normalized RESET Timeout Period vs. Temperature
TEMPERATURE (°C)
120
–40
0
–20
40
20
100
80
60
100
90
80
60
70
40
50
20
10
30
0
Figure 8. VCC to RESET Output Delay vs. Temperature
TEMPERATURE (°C)
120
–40
0
–20
40
20
100
80
60
1.20
1.15
1.10
1.05
1.00
0.95
0.90
Figure 9. Normalized Watchdog Timeout Period vs. Temperature
TEMPERATURE (°C)
120
–40
0
–20
40
20
100
80
60
1.05
1.03
1.04
1.01
1.02
0.99
1.00
0.97
0.98
0.95
0.96
Figure 10. Normalized RESET Threshold vs. Temperature
RESET THRESHOLD OVERDRIVE (mV)
1000
10
100
160
120
140
100
60
80
20
40
0
VCC = 4.63V
VCC = 2.93V
Figure 11. Maximum VCC Transient Duration vs. RESET Threshold Overdrive
