TS3420
2A, 1.25MHz Synchronous Buck Converter
8/9
Version: A12

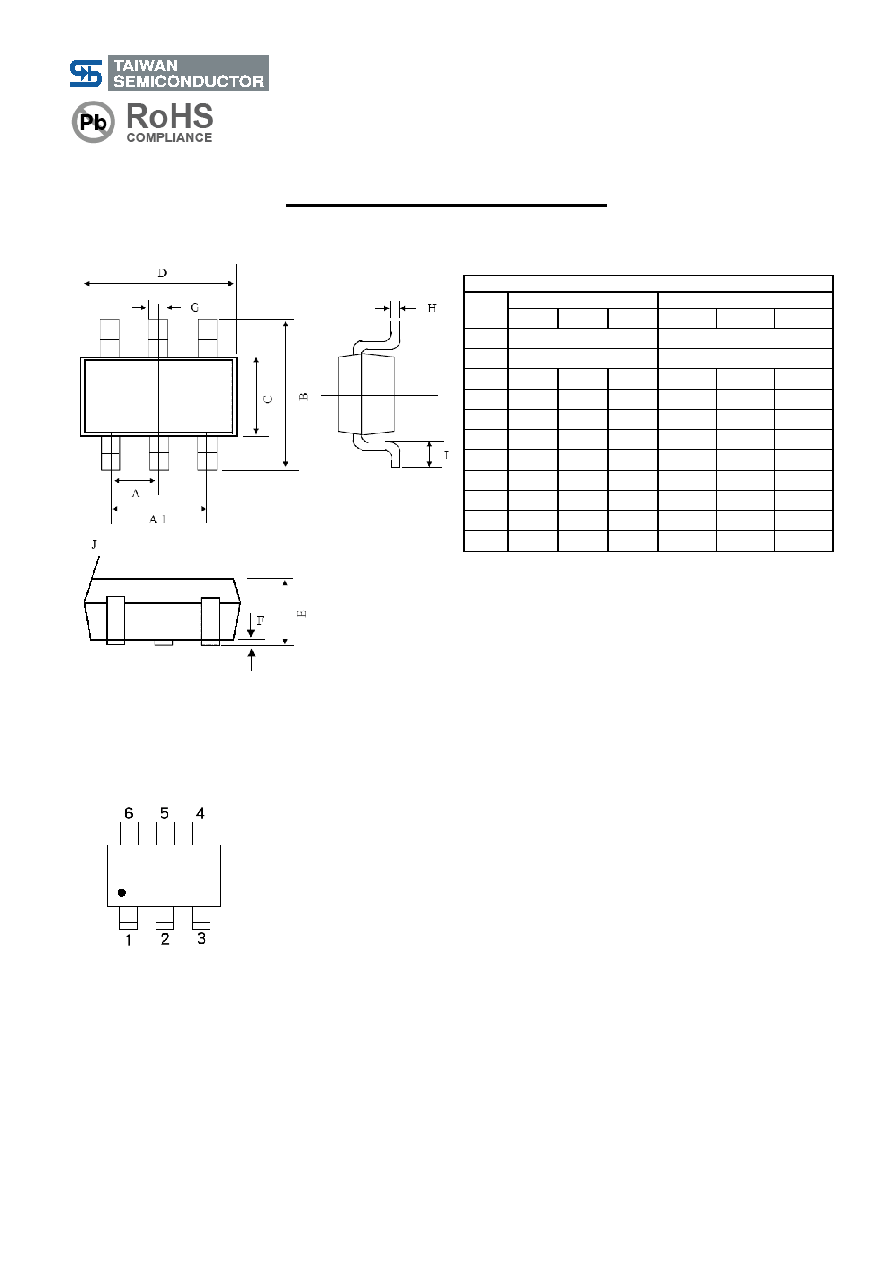

SOT-26 Mechanical Drawing
arking Diagram
GG = Device Code
Y
= Year Code
2 = 2012
3 = 2013
W
= Week Code
01 ~ 26 (A~Z)
27 ~ 52 (a~z)
X
= Internal ID Code
SOT-26 DIMENSION
DIM
MILLIMETERS
INCHES
MIN
TYP
MAX
MIN
TYP
MAX
A
0.95 BSC
0.0374 BSC
A1
1.9 BSC
0.0748 BSC
B
2.60
2.80
3.00
0.1024
0.1102
0.1181
C
1.40
1.50
1.70
0.0551
0.0591
0.0669
D
2.80
2.90
3.10
0.1101
0.1142
0.1220
E
1.00
1.10
1.20
0.0394
0.0433
0.0472
F
0.00
--
0.10
0.00
0.0039
G
0.35
0.40
0.50
0.0138
0.0157
0.0197
H
0.10
0.15
0.20
0.0039
0.0059
0.0079
I
0.30
--
0.60
0.0118
--
0.0236
J
5º
--
10º
5º
--
10º
GGYWX
