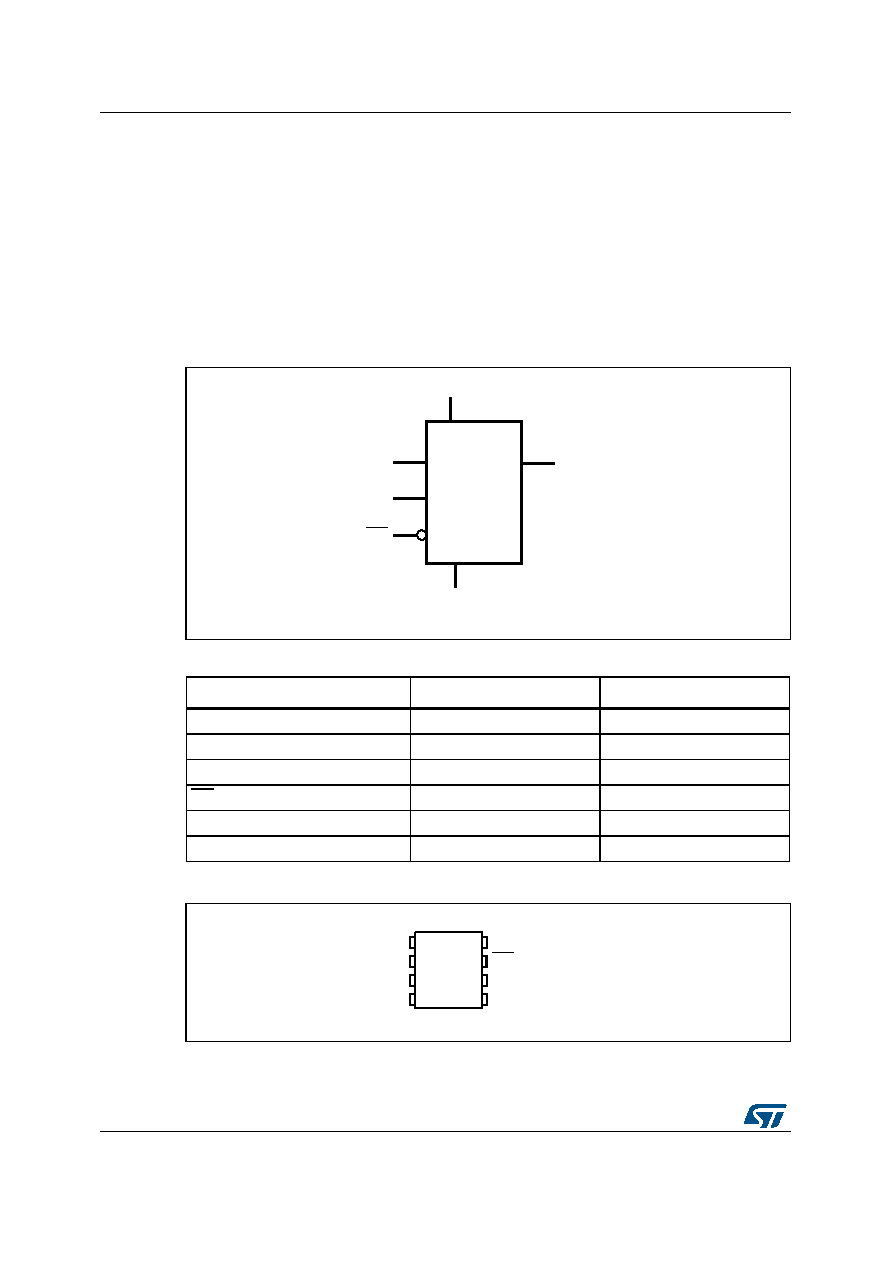

Description
M24C08-W M24C08-R M24C08-F
6/40
DocID023924 Rev 3
1
Description
The M24C08 is an 8-Kbit I2C-compatible EEPROM (Electrically Erasable PROgrammable
Memory) organized as 1 K × 8 bits.
The M24C08-W can be accessed with a supply voltage from 2.5 V to 5.5 V, the M24C08-R
can be accessed with a supply voltage from 1.8 V to 5.5 V, and the M24C08-F can be
accessed either with a supply voltage from 1.7 V to 5.5 V (over the full temperature range)
or with an extended supply voltage from 1.6 V to 1.7 V. All these devices operate with a
clock frequency of 400 kHz.
Figure 1. Logic diagram
Figure 2. 8-pin package connections, top view
1. NC: not connected.
2. See Section 9: Package mechanical data for package dimensions, and how to identify pin 1.
Table 1. Signal names
Signal name
Function
Direction
E2
Chip Enable
Input
SDA
Serial Data
I/O
SCL
Serial Clock
Input
WC
Write Control
Input
VCC
Supply voltage
-
VSS
Ground
-
