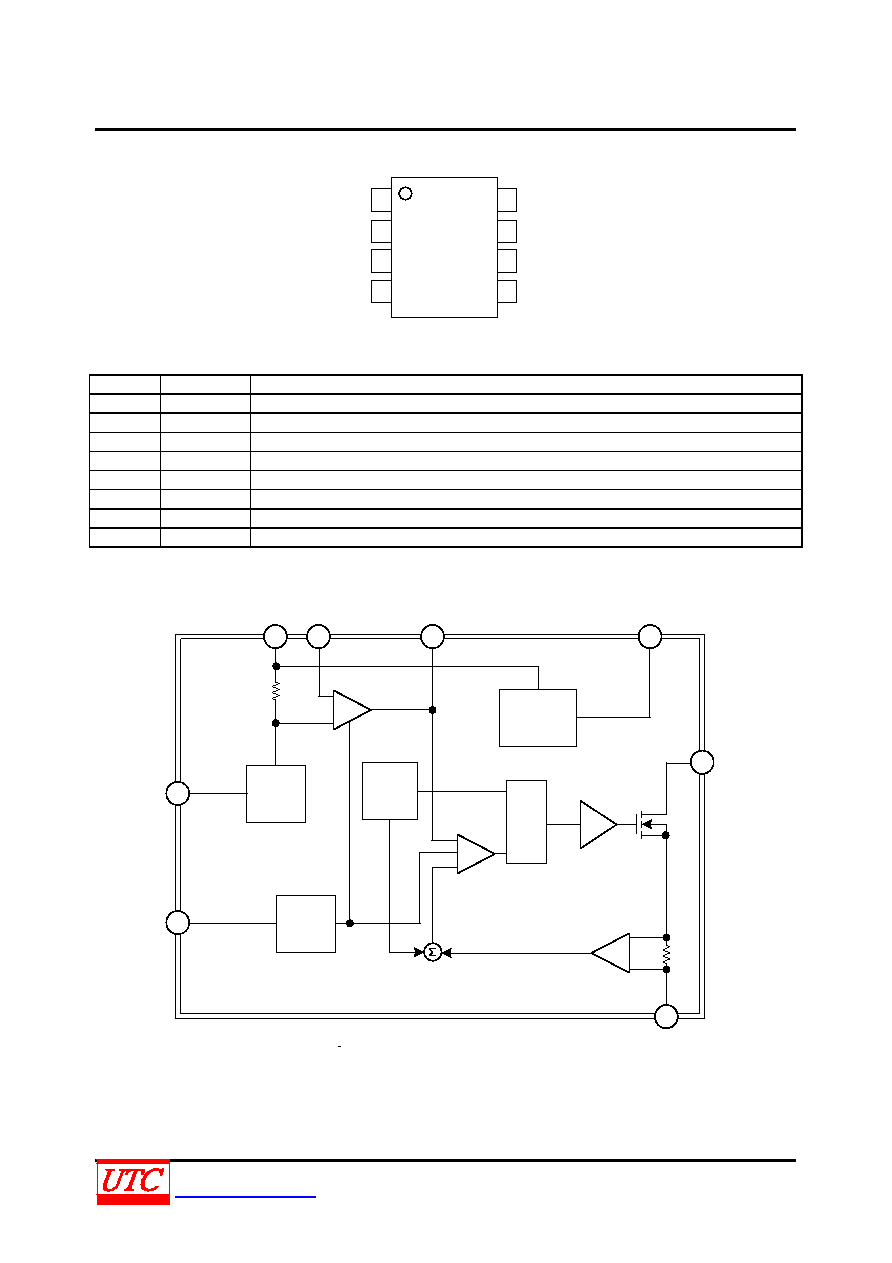

background image
L3012
Preliminary
LINEAR INTEGRATED CIRCUIT
UNISONICTECHNOLOGIESCO.,LTD
2 of 5
www.unisonic.com.tw
QW-R125-025. b
PIN CONFIGURATION
1
2
3
4
8
7
6
5
SW
GND
SENSE
VIN
ADJ
VDD
PWM
COMP
PIN DESCRIPTION
PIN NO.
PIN NAME
DESCRIPTION
1
SW
Power Switch output.
2
GND
Ground.
3
SENSE
Current sense pin.
4
VIN
Input supply voltage.
5
COMP
Compensation pin, connects to external capacitor.
6
PWM
PWM dimming pin.
7
VDD
5V LDO output
8
ADJ
Thermal compensation pin or linear dimming pin.
BLOCK DIAGRAM
4
VIN
3
SENSE
5
COMP
7
VDD
8
ADJ
6
PWM
3
GND
1 SW
S
Q
R
+
-
Current
comparator
Osc
+
-
Current
setting
Internal
reference
Driver
Vgate
M1
+
-
PWM
Control
OSC
Vsense
Slope
compensation
