UB264A
Preliminary
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
8 of 10
www.unisonic.com.tw
QW-R502-832.A

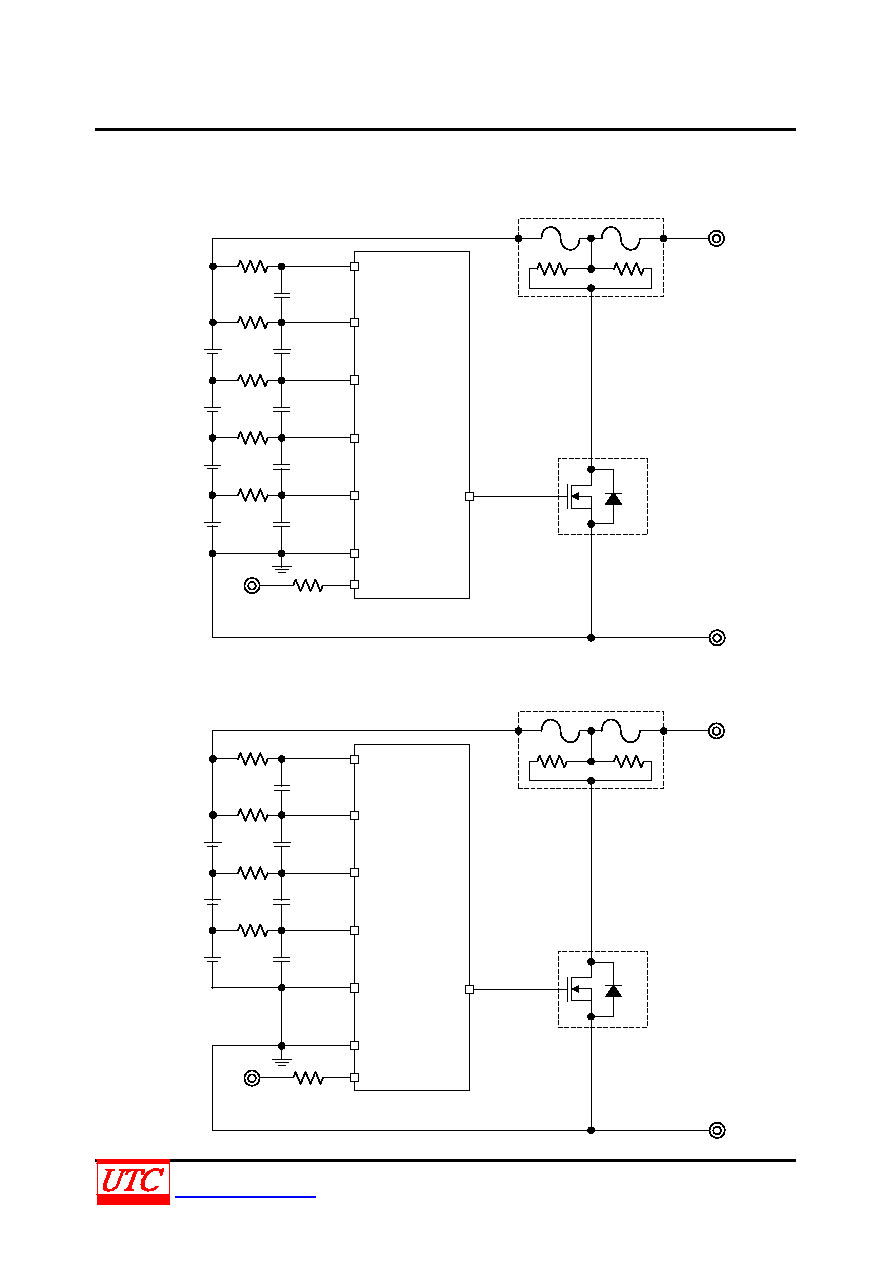

TYPICAL APPLICATION CIRCUIT
(1) 4-serial cell
BAT1
BAT2
BAT3
BAT4
R4
C4
C3
R3
R2
R1
C1
C2
RVDD
CVDD
VDD
SENSE
VC1
VC2
VC3
VSS
CTL
CO
UTC
UB264A
Series
External
input
RCTL
EB+
EB-
FET
DP
SC Protector
(2) 3-serial cell
BAT1
BAT2
BAT3
C3
R3
R2
R1
C1
C2
RVDD
CVDD
VDD
SENSE
VC1
VC2
VC3
VSS
CTL
CO
UTC
UB264A
Series
External
input
RCTL
EB+
EB-
FET
DP
SC Protector
