CCVGA7C9

Preliminary

TVS

UNISONICTECHNOLOGIESCO.,LTD

6 of 6

www.unisonic.com.tw

QW-R223-015.a



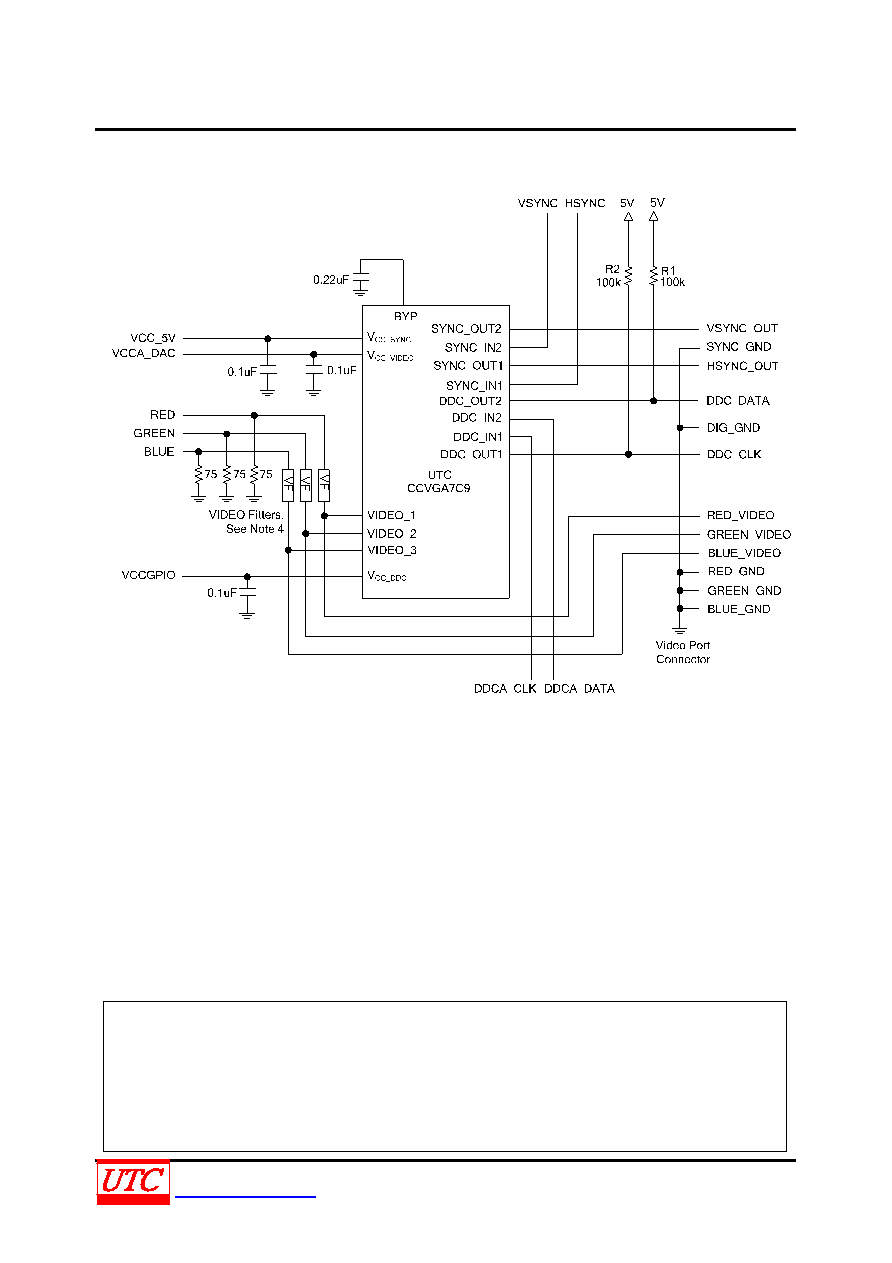

TYPICAL APPLICATION CIRCUIT

Notes:

1. The UTC CCVGA7C9 should be placed as close to the VGA or DVI−I connector as possible.

2. The ESD protection channels VIDEO_1, VIDEO_2, VIDEO_3 may be used interchangeably between the R, G, B

signals.

3. If differential video signal routing is used, the RED, BLUE, and GREEN signal lines should be terminated with

external 37.5Ω resistors.

4. “VF” are external video filters for the RGB signals.

5. The DDC level shifters DDC_IN, DDC_OUT, may be used interchangeably between DDCA_CLK and

DDCA_DATA.

6. The SYNC buffers may be used interchangeably between HSYNC and VSYNC.
