UNISONIC TECHNOLOGIES CO., LTD

13003ADG

Preliminary

NPN SILICON TRANSISTOR

www.unisonic.com.tw

1 of 5

Copyright © 2014 Unisonic Technologies Co., Ltd

QW-R223-023.b

NPN SILICON POWER

TRANSISTOR



DESCRIPTION

These devices are designed for high-voltage, high-speed

power switching inductive circuits where fall time is critical. They

are particularly suited for 115 and 220V applications in switch

mode.



FEATURES

* Inductive switching matrix 0.5 ~ 1.5 Amp, 25 and 100°C

* 700V blocking capability



APPLICATIONS

* Switching regulator’s, inverters

* Motor controls

* Solenoid/relay drivers

* Deflection circuits



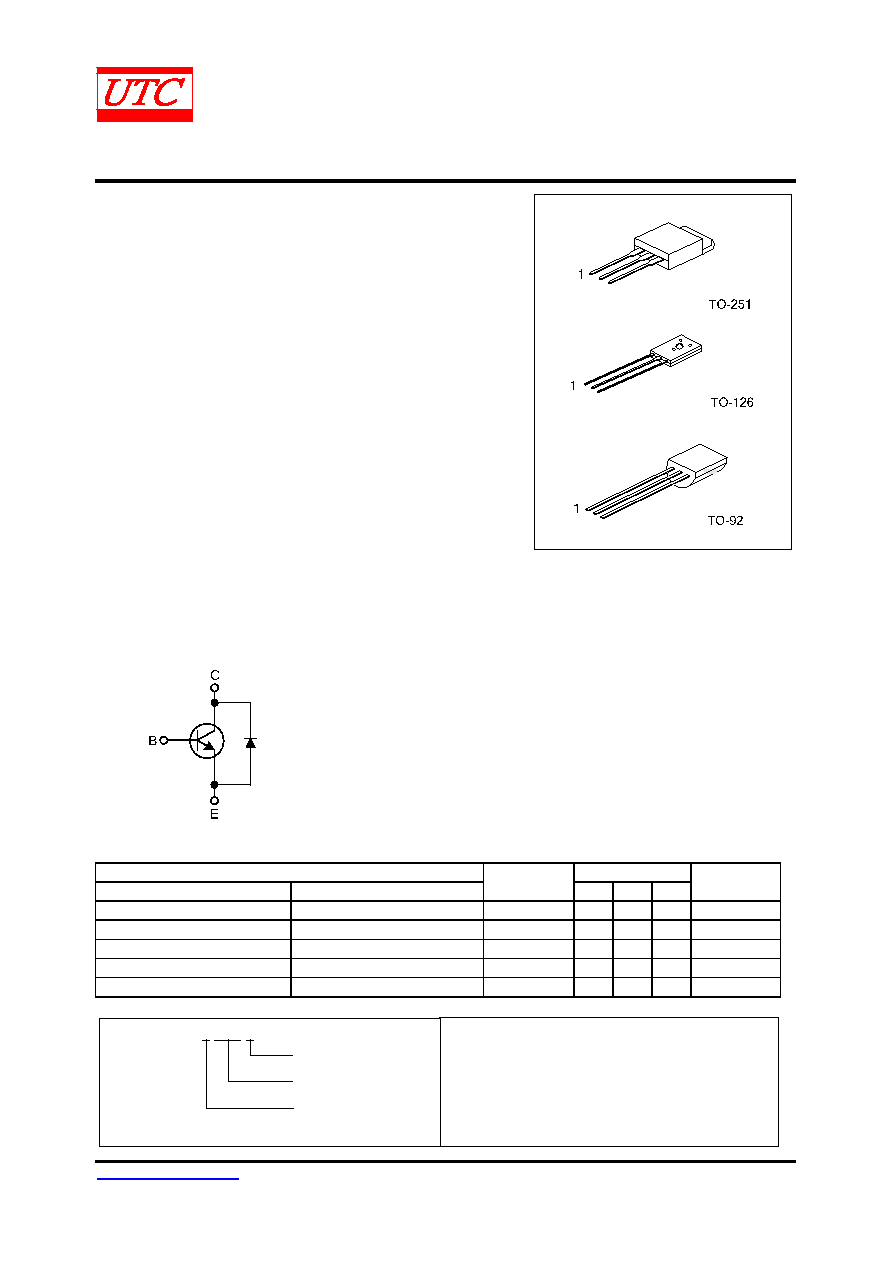

EQUIVALENT CIRCUIT



ORDERING INFORMATION

Ordering Number

Package

Pin Assignment

Packing

Lead Free

Halogen Free

1

2

3

13003ADGL-TM3-T

13003ADGP-TM3-T

TO-251

B

C

E

Tube

13003ADGL-T60-K

13003ADGP-T60-K

TO-126

B

C

E

Bulk

13003ADGL-T92-B

13003ADGP-T92-B

TO-92

B

C

E

Tape Box

13003ADGL-T92-K

13003ADGP-T92-K

TO-92

B

C

E

Bulk

13003ADGL-T92-R

13003ADGP-T92-R

TO-92

B

C

E

Tape Reel

Note: Pin Assignment: B: Base

C: Collector

E: Emitter

(1) T: Tube, B: Bluk, K: Bulk, R: Tape Reel

(2) TM3: TO-251, T60: TO-126, T92: TO-92

(3) L: Lead Free, P: Halogen Free

13003ADGL-TM3-T

(1)Packing Type

(2)Package Type

(3)Lead Free
