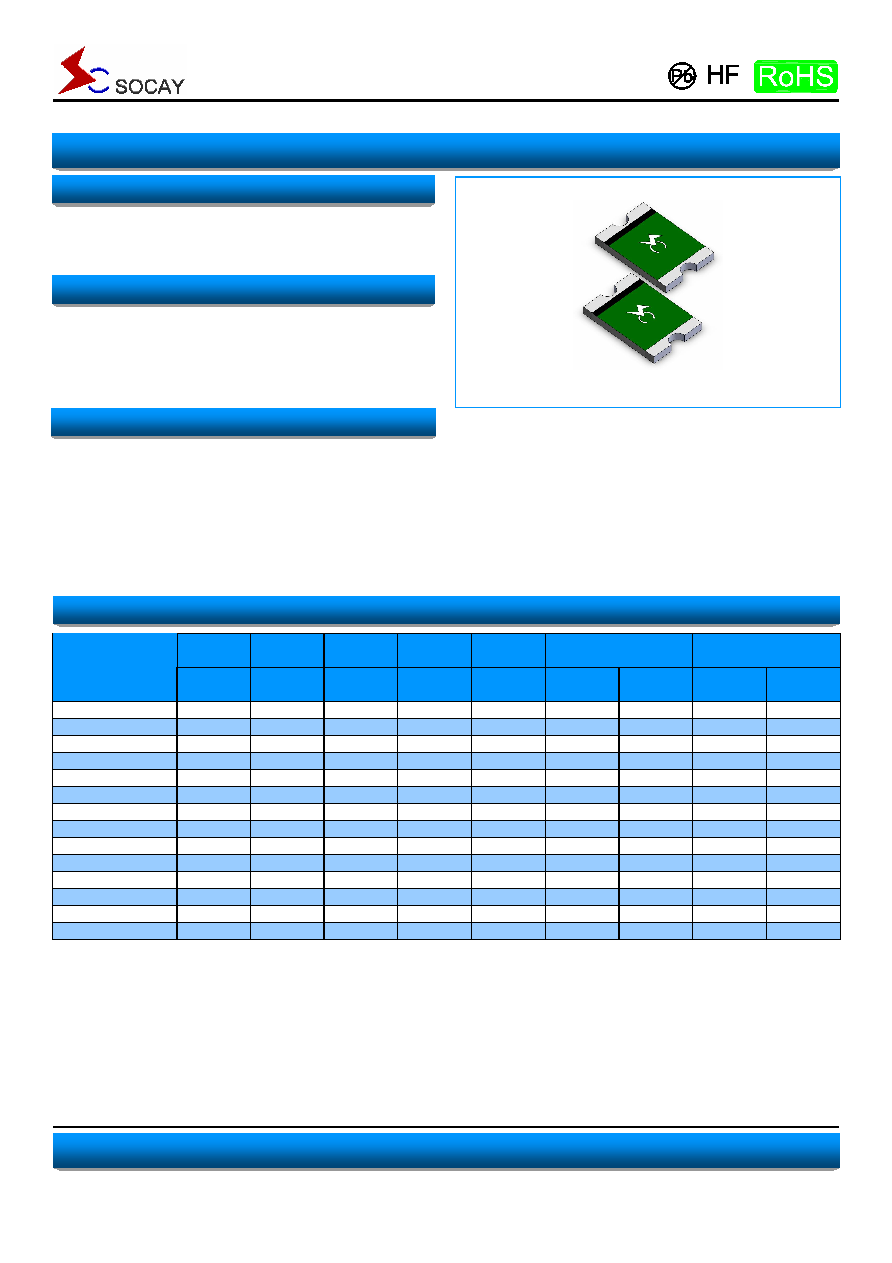

1 / 4 page  Surface Mount Resettable PTCs Revision September 12, 2013 1 / 4 @ SOCAY Electronics Co., Ltd. 2013 Specifications are subject to change without notice. Please refer to www.socay.com for current information. SCF2920 Series SOCAY Electronics Co., Ltd. www.socay.com The SCF2920 Series PTC provides surface mount over-current protection for applications where space is at a premium and resettable protection is desired. u RoHS compliant, Lead-Free and Halogen-Free u Fast time-to-trip u Compact design saves board space u Low resistance u Low-profile u PC motherboard - plug and play protection u Mobile phones - battery and port protection u Game console port protection u USB peripherals u Disk drive u PDAS / digital cameras u Power ports u General electronics Hold Current Trip Current Rated Voltage Max Current Typical Power Maximum Time To Trip Resistance Part Number I hold (A) I trip (A) V max (Vdc) I max (A) P dtyp. (W) Current (A) Time (Sec.) R min ( Ω) R 1max ( Ω) SCF030-2920-R 0.30 0.60 60 100 1.5 1.5 3.0 1.000 4.800 SCF050-2920-R 0.50 1.00 60 100 1.5 2.5 4.0 0.300 1.400 SCF075-2920-R 0.75 1.50 33 100 1.5 8.0 0.3 0.180 1.000 SCF075-60-2920-R 0.75 1.50 60 10 1.5 8.0 0.3 0.180 1.000 SCF100-2920-R 1.10 2.20 33 100 1.5 8.0 0.5 0.090 0.410 SCF125-2920-R 1.25 2.50 33 100 1.5 8.0 2.0 0.050 0.250 SCF150-2920-R 1.50 3.00 33 40 1.5 8.0 2.0 0.050 0.230 SCF185-2920-R 1.85 3.70 33 40 1.5 8.0 2.5 0.040 0.150 SCF200-2920-R 2.00 4.00 16 100 1.5 8.0 4.5 0.035 0.120 SCF200-24-2920-R 2.00 4.00 24 40 1.5 8.0 5.0 0.035 0.120 SCF250-2920-R 2.50 5.00 16 100 1.5 8.0 16.0 0.025 0.085 SCF260-2920-R 2.60 5.20 6 100 1.5 8.0 20.0 0.020 0.075 SCF300-2920-R 3.00 5.20 6 100 1.5 8.0 25.0 0.010 0.048 SCF300-15-2920R 3.00 5.20 15 40 1.5 8.0 25.0 0.010 0.048 I hold= Hold current: maximum current device will pass without tripping in 23°C still air. I trip= Trip current: minimum current at which the device will trip in 23°C still air. V max= Maximum voltage device can withstand without damage at rated current (Imax) I max= Maximum fault current device can withstand without damage at rated voltage (Vmax) Pdtyp.= Power dissipated from device when in the tripped state at 23°C still air. R min= Minimum resistance of device in initial (un-soldered) state. R 1max= Maximum resistance of device at 23°C measured one hour after tripping. Caution: Operation beyond the speci fied rating may result in damage and possible arcing and flame. Electrical Parameters Applicable Description Features |
