Memory organization
The M93Cx6 memory is organized either as bytes (x8) or as words (x16). If Organization
Select (ORG) is left unconnected (or connected to VCC) the x16 organization is selected;
when Organization Select (ORG) is connected to Ground (VSS) the x8 organization is
selected. When the M93Cx6 is in Standby mode, Organization Select (ORG) should be set
either to VSS or VCC to reach the device minimum power consumption (as any voltage
between VSS and VCC applied to ORG input may increase the device Standby current).

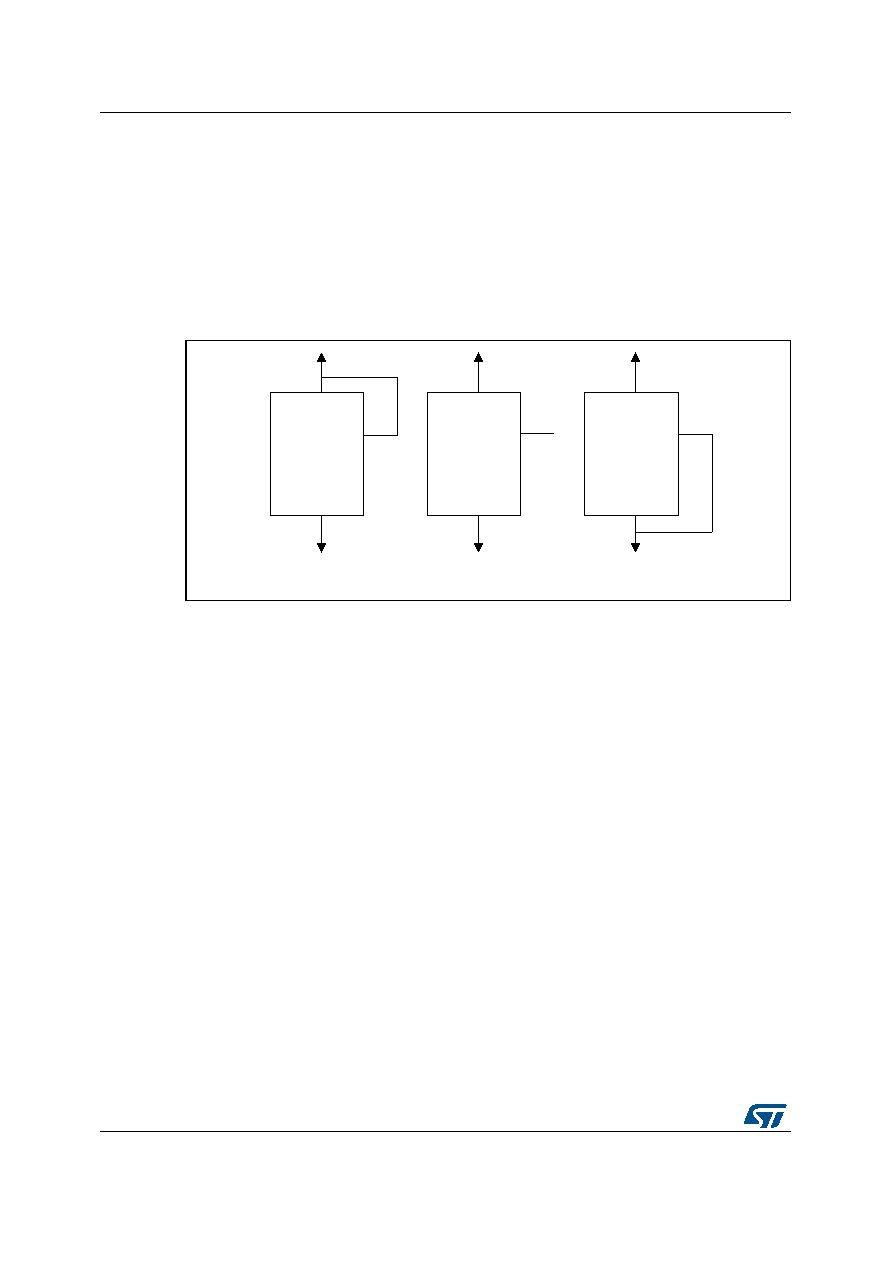

Figure 4. M93Cx6 ORG input connection
MSv31690V1
Vcc
ORG
Vss
Vcc
ORG
Vss
Vcc
ORG
Vss
Not
connected
x16 organization
x16 organization
x8 organization
