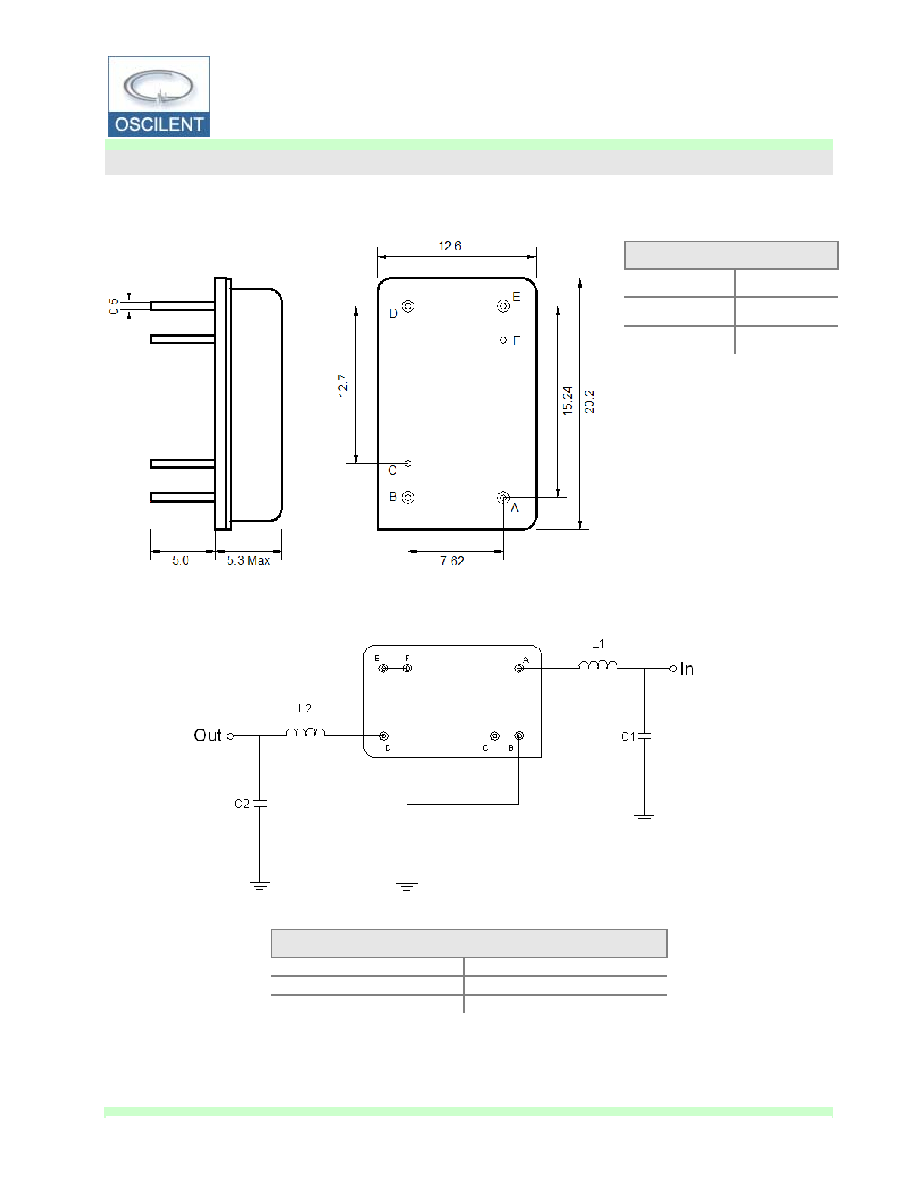

Oscilent Part Number
820-IF70.0M-R
January 2011 Rev A
70.0MHz IF SAW Filter 0.3 MHz Bandwidth
Product Specification
P. 1
www.oscilent.com
Mechanical Dimensions (mm)
Test Circuit
Pin Description
B, C, E, F Ground
A Input
D Output
Test Fixture & Values
Input L1 = 180 nH, C1 = 62pF
Output L2 = 180 nH, C2 = 62pF
Source/Load Impedance 50 Ω
