부품명	SMS-1308MS-2-R

상세설명	ALL DIMENSIONS ARE IN MILLIMETERS

PDF	1 Pages

Scroll/Zoom	100%

제조업체	PUI [Projects Unlimited, Inc.]

홈페이지	http://www.pui.com

Logo

1 / 1 page

Speaker

SMS-1308MS-2-R

J.D.

M.L.

B.R.

8/9/2011

-

Designed by

Checked by

Approved by

Drawn Date

1 / 1

Edition

Sheet

Date

8/9/2011

Date

8/10/2011

Date

8/10/2011

UNLESS OTHERWISE

SPECIFIED:

DIMENSIONS ARE IN

MILLIMETERS,

TOLERANCES

ARE ±0.5 AND

ANGLES ARE ±3°.

SMS-1308MS-2-R.idw

A3

SIZE

REVISION HISTORY

LTR

DESCRIPTION

DATE APPROVED

-

RELEASED FROM ENGINEERING

8/9/2011

A

REVISED FREQUENCY RANGE

4/27/2012

B.R.

SPECIFICATIONS

PARAMETERS

VALUES

UNITS

RATED INPUT POWER

0.7

W

MAX INPUT POWER

1

W

IMPEDANCE

8 ± 15%

OHM

OUTPUT SPL @ 0.7W/0.1M

(AT 1.0, 1.6, 2.0, 3.2 kHz)

88 ± 3

dBA

DISTORTION (MAX.)

5%

-

RESONANT FREQUENCY

850 ± 20%

Hz

FREQUENCY RANGE

400 ~ 20,000

Hz

HOUSING MATERIAL

LCP

-

CONE MATERIAL

KAPTON

-

MAGNET MATERIAL

SmCo

-

OPERATING TEMPERATURE

-30 ~ +85

°C

WEIGHT

1.2

grams

THIS DOCUMENT CONTAINS DATA PROPRIETARY TO

PROJECTS UNLIMITED, INC. ANY USE OR

REPRODUCTION, IN ANY FORM, WITHOUT PRIOR

WRITTEN PERMISSION OF PROJECTS UNLIMITED,

INC. IS PROHIBITED.

NOTES:

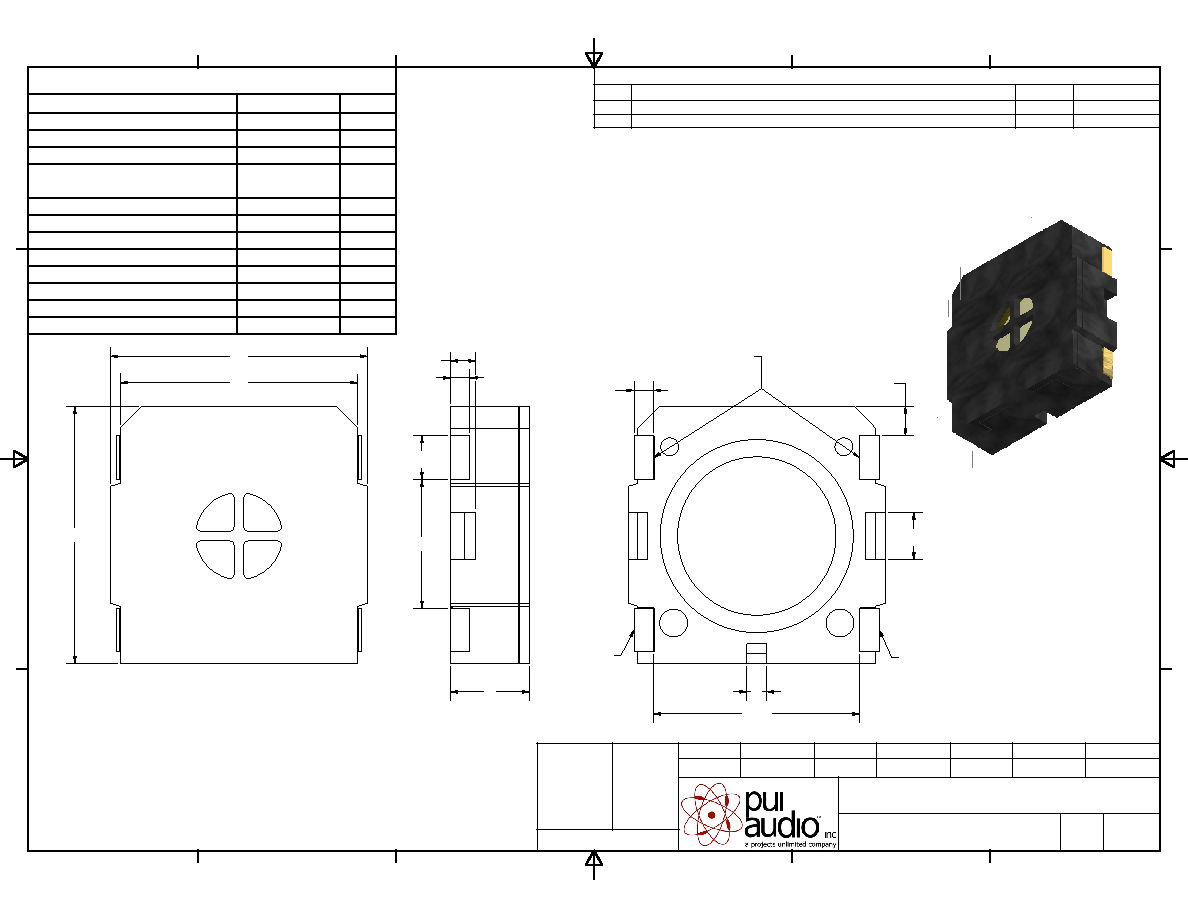

1. ALL DIMENSIONS ARE IN MILLIMETERS.

2. SPECIFICATIONS SUBJECT TO CHANGE OR WITHDRAWL

WITHOUT NOTICE.

3. THIS PART IS RoHS 2002/95/EC COMPLIANT.

12

13

1

1.3

2.2 (4)

6.5

4

1 (4)

1.5

2.4 (2)

1

10.4

LEAD (+)

LEAD (-)

DUMMY LEADS
