BEZELS

Page 5

Specifications may be changed without

prior notice. Printing error reserved

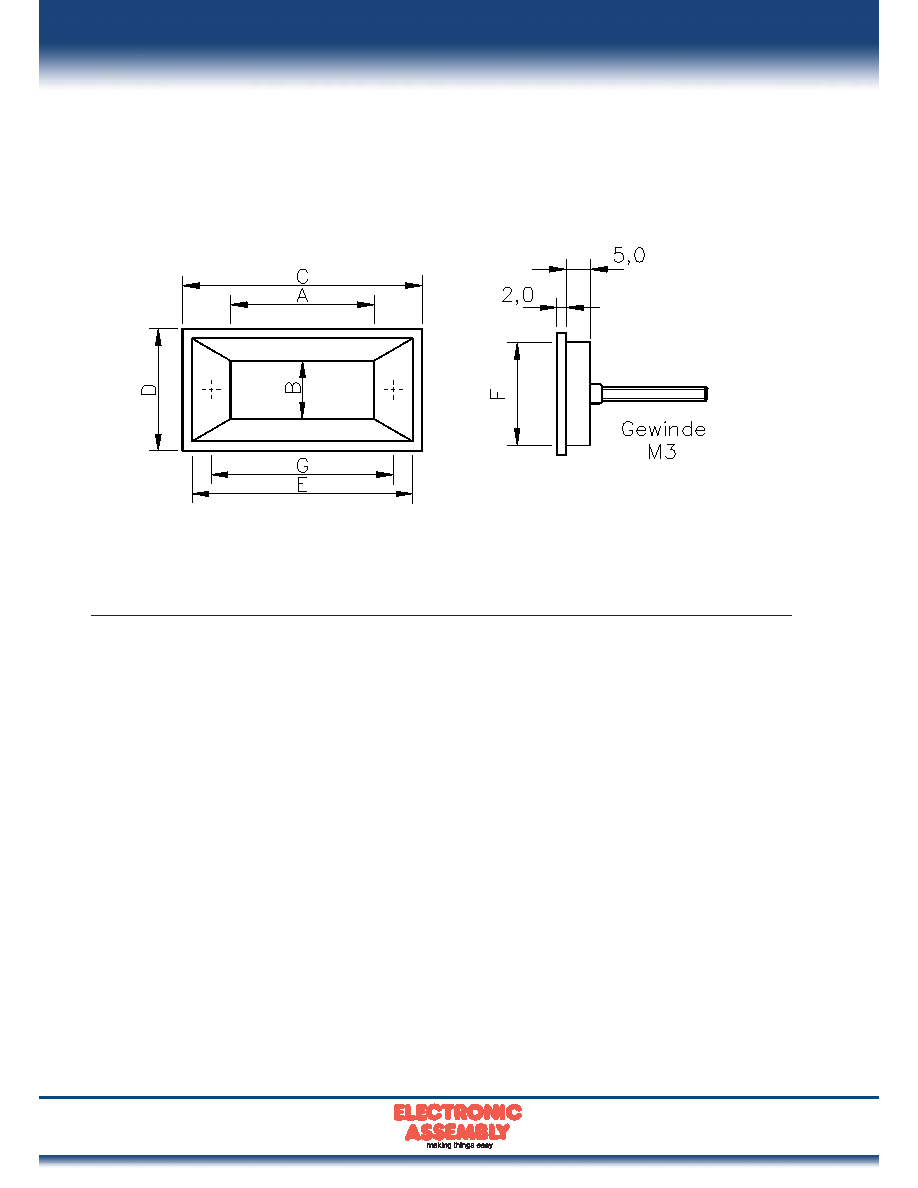

FRONTPANEL AND MOUNTING

BEZELS FOR LED-MODULES

WITH 12, 19, 25mm DIGIT HEIGHT

Ordering

viewing area

bezel size

cutout

mounting

matching

information

A

B

C

D

E

F

G

module

EA 074-R

42,7

12,2

63,0

25,5

59,0

21,5

48,5/ M3

4 Digit (LED)

EA 079-R

106,0

12,2

125,5

25,5

121,5

21,5

114,5/ M3

9 Digit (LED)

EA 083-R

43,0

25,0

62,5

38,0

58,5

34,0

50 / M3

3 Digit (LED)

EA 087-K/-R

93,0

25,0

114,0

38,0

110,0

34,0

101

8 Digit (LED)

EA 093-R

38,0

19,5

59,0

32,0

55,0

28,0

45 / M3

3 Digit (LED)

EA 094-R

50,0

19,5

70,5

32,0

66,5

28,0

58 / M3

4 Digit (LED)

EA 096-R

77,0

19,5

97,0

32,0

93,0

28,0

84 / M3

6 Digit (LED)

These bezels are usually delivered with a red acrylicglass window. Alternatively you can order a clear

acrylicglass window. The ordering information is now e.g: EA 096-K insted of EA 096-R.

(all dimensions in mm)
