Fuse Holder

441-R372-GR

Available from Mouser Electronics

1-800-346-6873

www.mouser.com

EPD-200777

Date Last Revised: 4-10-09

Specifications are subject to change without notice. No liability or warranty implied by this information. Environmental compliance based on producer documentation.

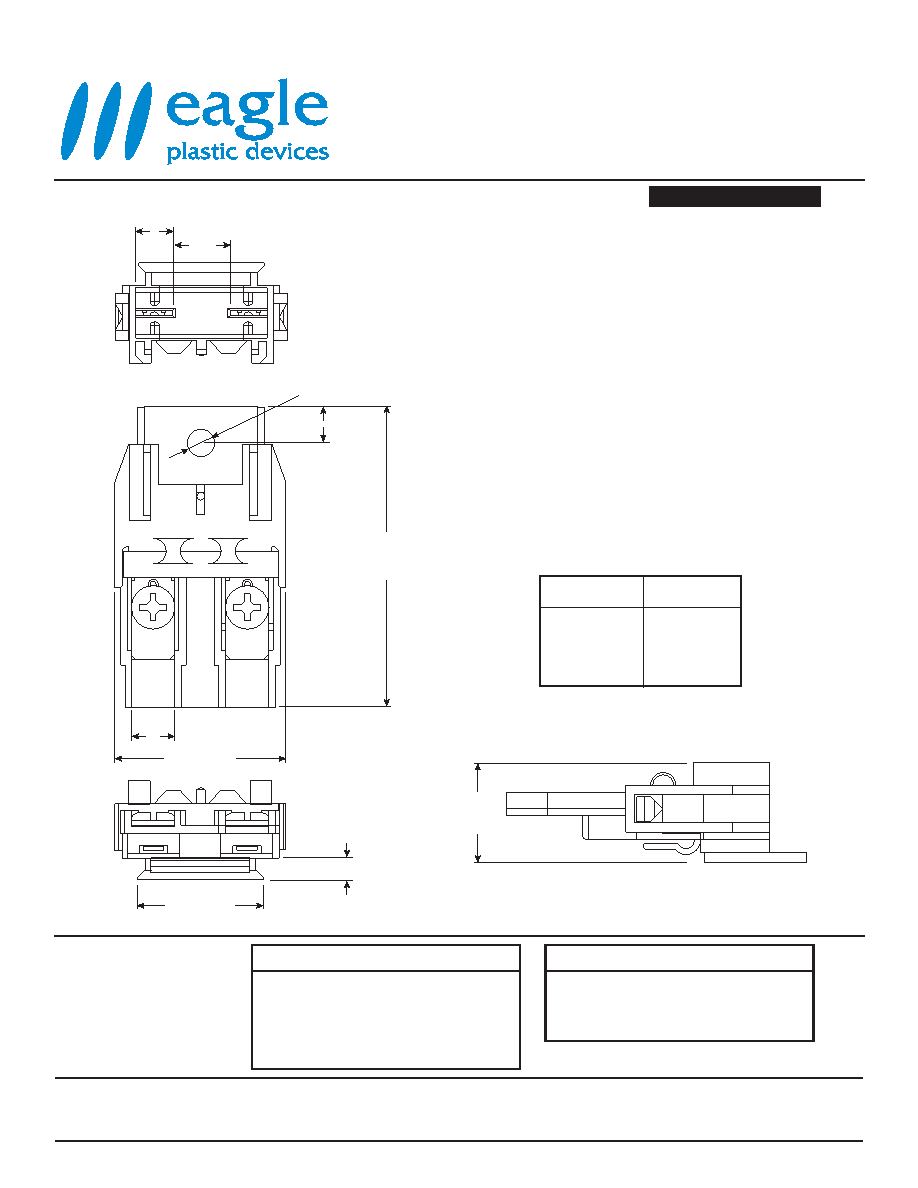

8.4±.20

(.33±.008) 12.8±.20

(.504±.008)

67.6±.30

(2.66±.012)

8.1±.20

(.318±.008)

ø6±.20

(ø.236±.008)

5±.20

(.197±.008)

22.3±.20

(.878±.008)

28.9±.30

(1.14±.012)

38.7±.30

(1.52±.012)

9±.20

(.354±.008)

SPECIFICATIONS

• Rating: 60A max 12/24/32 VDC

• Insulation Resistance: 500VDC 100MΩ Min.

• Dielectric Strength: 1000VAC 1 min.

• Operating Temperature: -25°~85°C

• Fuse Type: Maxi Fuse

• RoHS Compliant

MATERIALS

• Frame: Nylon 66 FR7025, Black

• Terminal: Copper

• Nut: NIckel Plated Metal

• Screw: M5x0.8 L=5.8mm

Dimensions: mm (in.)

20A (Yellow)

12AWG

30A (Green)

10AWG

40A (Orange)

8AWG

50A (Red)

8AWG

60A (Blue)

6AWG

Fuse Rating

(Colors)

MAXI Fuse Rating

Wire

(AWG
