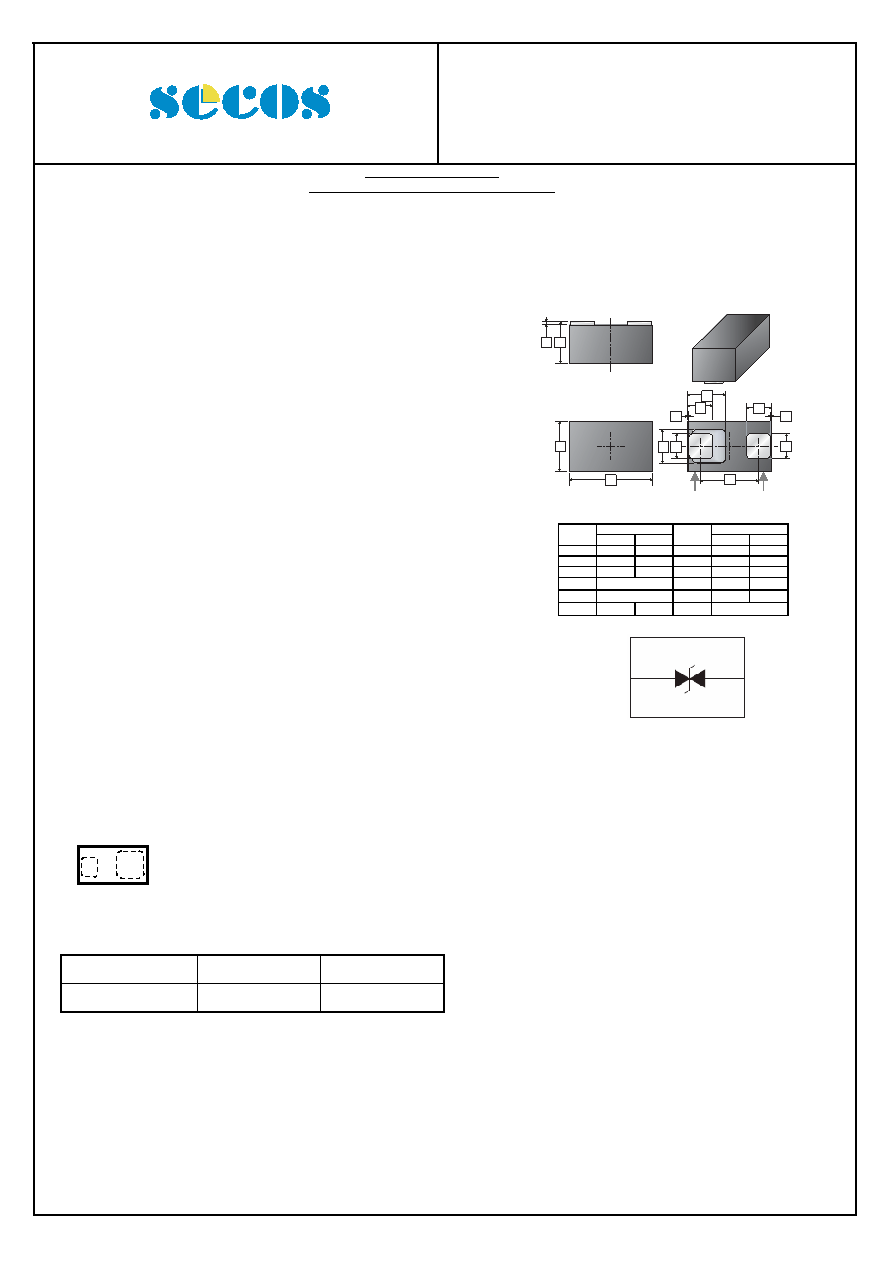

1 / 3 page

Elektronische Bauelemente

STESD05CL

40W, 5V

Low Capacitance ESD Protection (Bi-directional)

15-May-2014 Rev. B

Page 1 of 3

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

RoHS Compliant Product

A suffix of “-C” specifies halogen and lead-free

DESCRIPTION

Designed to protect voltage sensitive electronic

components from ESD and other transients. Excellent

clamping capability, low leakage, low capacitance, and fast

response time provide best in class protection on designs

that are exposed to ESD. The combination of small size,

low capacitance, and high level of ESD protection makes

them a flexible solution for applications such as HDMI,

Display Port TM, and MDDI interfaces. It is designed to

replace multiplayer varistors (MLV) in consumer equipments

applications such as mobile phone, notebook, PAD, STB,

LCD TV etc.

APPLICATIONS



Computers and peripherals



High speed data lines



Audio and video equipment



Cellular handsets and accessories



Subscriber identity module(SIM) card protection

FEATURES



Bi-directional ESD protection of one line



Low capacitance: 12pF(Typ.)



Low reverse stand−off voltage: 5.0V



Low reverse clamping voltage



Low leakage current



Excellent package:1.0mm×0.6mm×0.5mm



Fast response time



JESD22-A114-B ESD Rating of class 3B per human body model



IEC 61000-4-2 Level 4 ESD protection

MARKING





PACKAGE INFORMATION

Package

MPQ

Leader Size

WBFBP-02C

10K

7 inch

WBFBP-02C

Bi-direction





A

C

B

F

M

G

J

H

K

E

D

L

Millimeter

REF.

Min.

Max.

REF.

Min.

Max.

A

0.950

1.050

G

0.275

0.325

B

0.550

0.650

H

0.275

0.325

C

0.450

0.550

J

0.275

0.325

D

0.450 REF.

K

0.675

0.725

E

0.400 REF.

L

0.010

0.070

F

0.275

0.325

M

0.010 REF.

H

Top View
