PTB20249 datasheet(2/3 Pages) ERICSSON

2 / 3 page

PTB 20249

Z Source

Z Load

Electrical Characteristics (100% Tested)

Characteristic

Conditions

Symbol

Min

Typ

Max

Units

Breakdown Voltage C to E

IB = 0 A, IC = 5 mA, RBE = 22 Ω

V(BR)CER

—

Volts

Breakdown Voltage C to E

VBE = 0 V, IC = 5 mA

V(BR)CES

—

Volts

Breakdown Voltage E to B

IC = 0 A, IE = 5 mA

V(BR)EBO

—

Volts

DC Current Gain

VCE = 5 V, IC = 250 mA

hFE

—

RF Specifications (100% Tested)

Characteristic

Symbol

Min

Typ

Max

Units

Gain

(VCC = 26 Vdc, Pout = 1 W, ICQ = 25 mA, f = 1513 MHz)

Gpe

9.5

11.5

—

Power Output at 1 dB Compression

(VCC = 26 Vdc, ICQ = 25 mA, f = 1513 MHz)

P-1dB

2.5

3.5

—

Watts

Load Mismatch Tolerance

(VCC = 26 Vdc, Pout = 5 W, ICQ = 25 mA,

—

5:1

—

f = 1513 MHz—all phase angles at frequency of test)

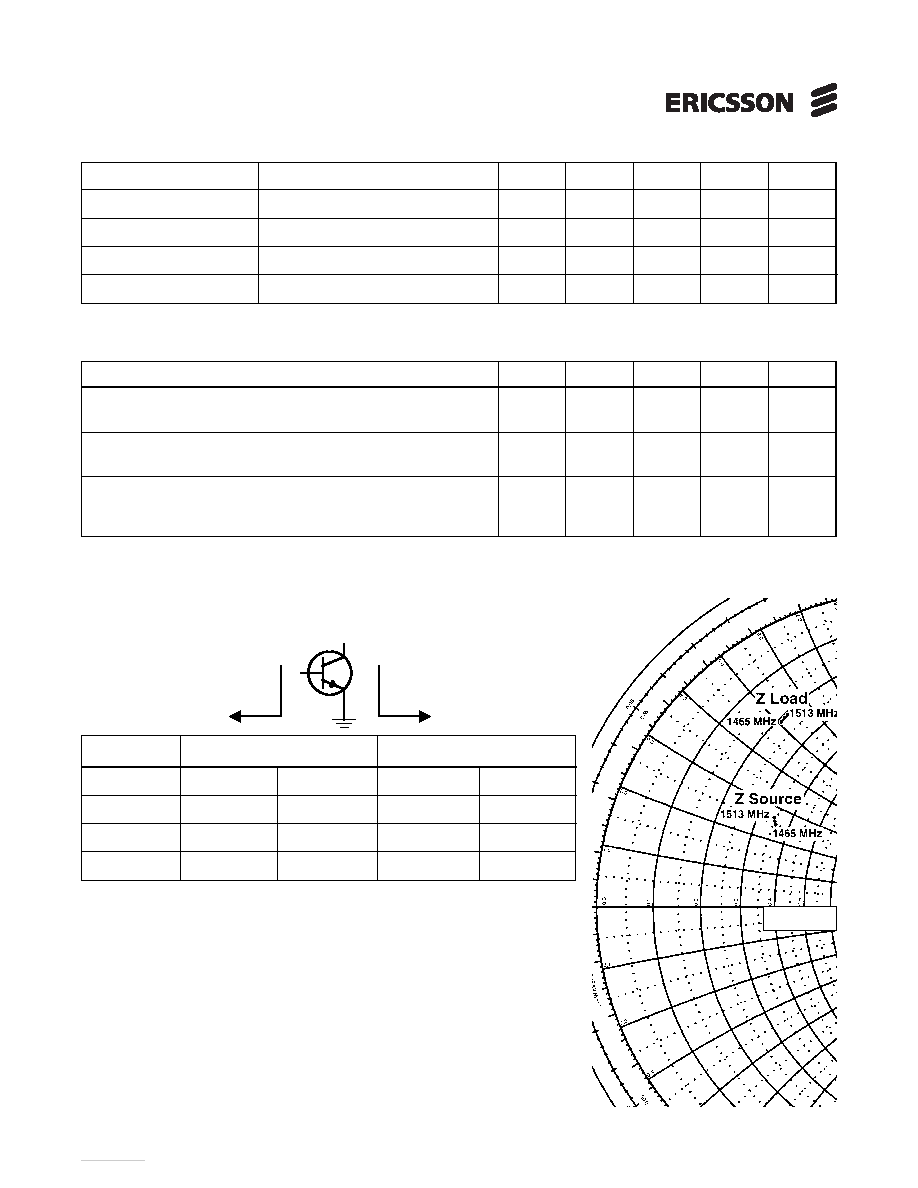

Impedance Data (data shown for fixed-tuned broadband circuit)

(VCC = 26 Vdc, Pout = 2.5 W, ICQ = 25 mA)

Frequency

Z Source

Z Load

MHz

1465

17.90

12.50

10.50

25.40

1489

17.60

12.90

10.40

26.10

1513

17.30

13.40

10.40

26.70

Z0 = 50 Ω

5 /1 9/98
