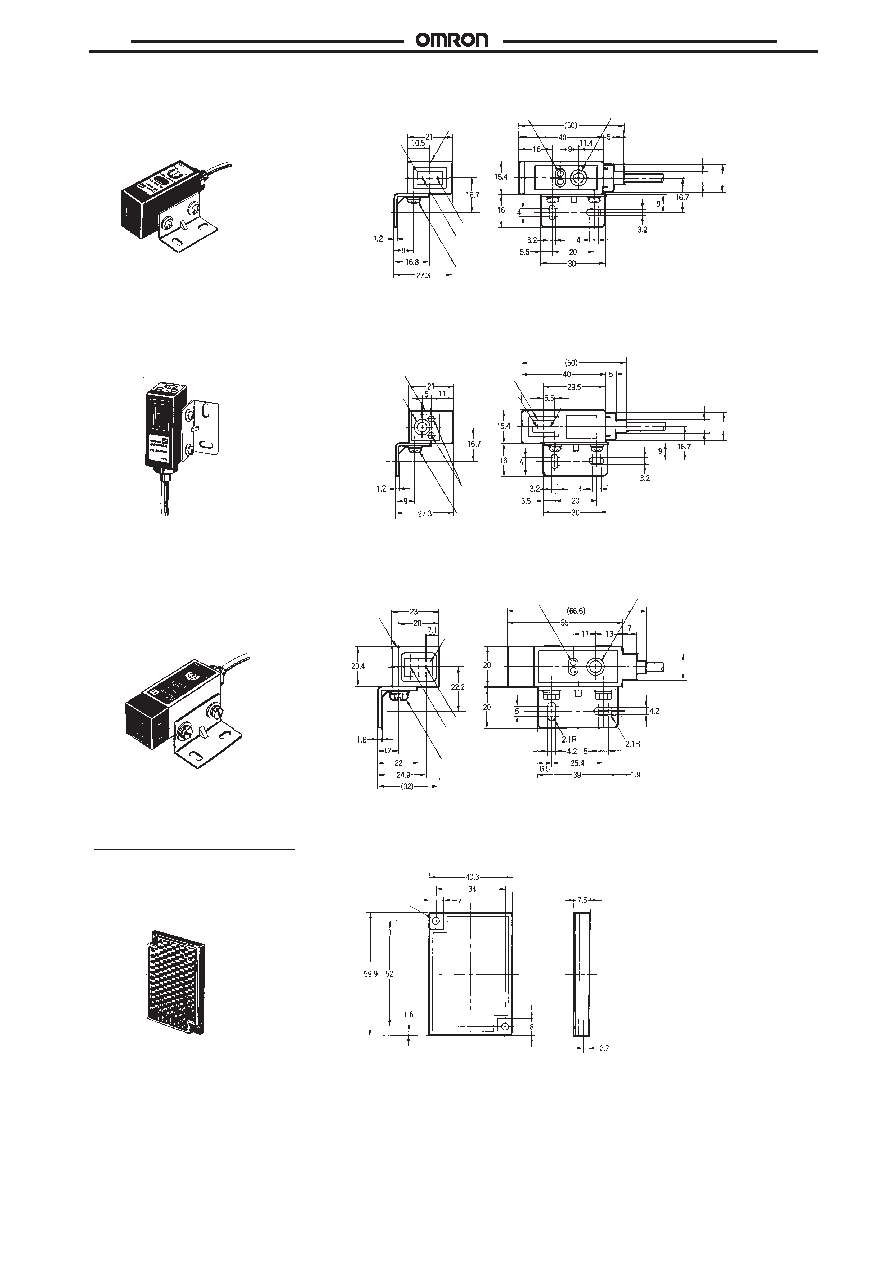

E3S

E3S-DS10E(B)4

Cord:

4-mm dia., 18/0.12, 3-conductor

Standard length: 2 m

Weight: approx. 80 g

Note:

A mounting bracket can be attached to side A.

E3S-DS10E(B)41

Cord:

4.5-mm dia., 18/0.12, 3-conductor

Standard length: 2 m

Weight: approx. 80 g

Note:

A mounting bracket can be attached to side A.

E3S-R2E(B)4

E3S-DS30E(B)4

Cord:

4-mm dia., 18/0.12, 3-conductor

Standard length: 2 m

Weight: approx. 165 g

Note:

A mounting bracket can be attached to side A.

Indicator

Sensitivity adjustor

Emitter

Receiver

(A) (see note)

Lens (7 x 13)

6 dia. 12.8 dia.

Indicator

Sensitivity adjustor

Emitter

Receiver

(A) (see note)

Lens (7 x 13)

6 dia. 12.8 dia.

Two, M3

(A) (see note)

Lens (10 x 15)

Indicator

Sensitivity adjustor

Receiver

Emitter

Two, M4 slotted

hexagonal bolts

13 dia.

Accessories (Order Separately)

E39-R1 Retroreflector

(Supplied with E3S-R2E(B)4(1))

Two, 3.5 dia.
