1:1 Net-Ready Platform

1:1 NET-Ready Optical Protection Switch

S**** - R01. 2011.07.01

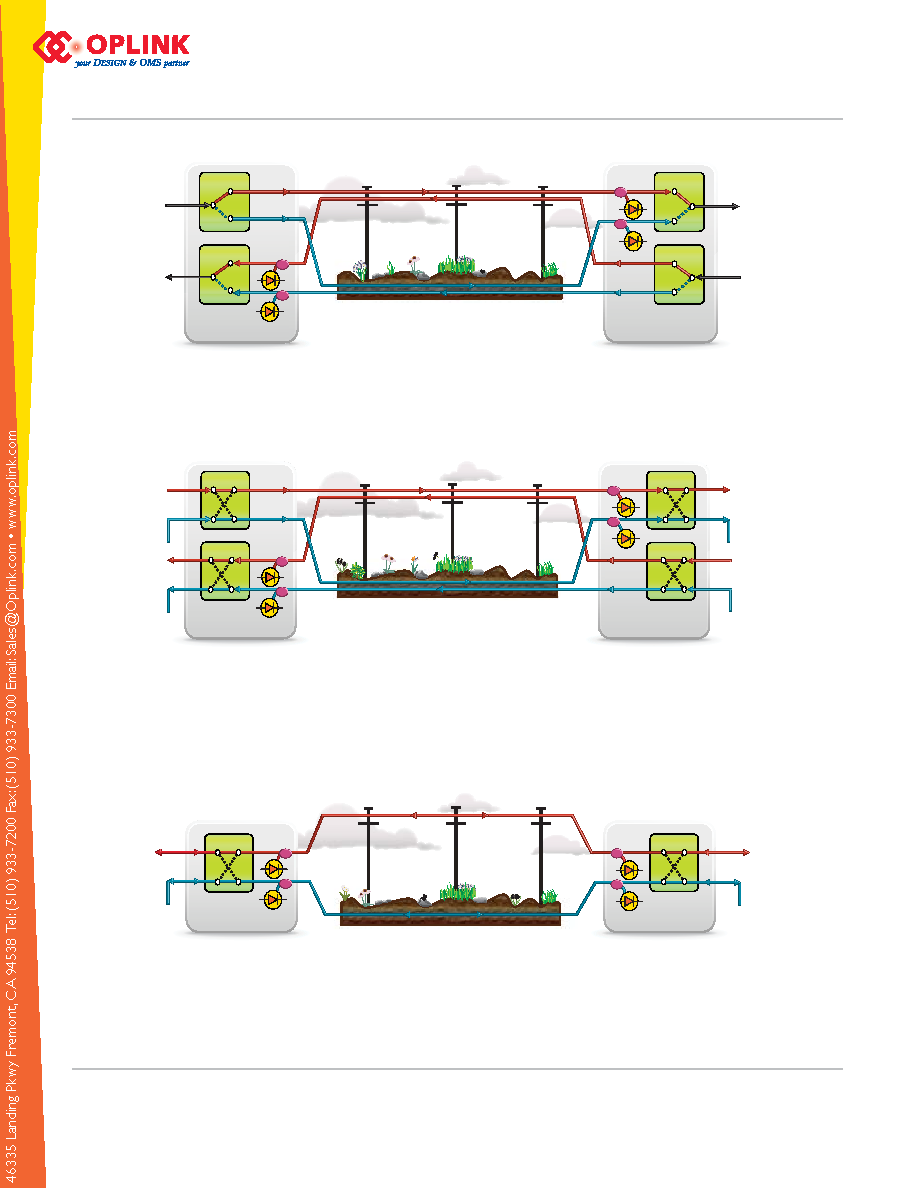

Application Example

Ordering Information

Oplink can provide a remarkable range of customized optical solutions. For detail, please contact Oplink’s OEM

design team or account manager for your requirements and ordering information (510) 933-7200.

Protection Switch Card

Protection Switch Card

Protection Line (Secondary)

Working Line (Primary)

2x2 Switch

2x2 Switch

Low

priority

tra c

Protection Switch Card

Protection Switch Card

Protection Line (Secondary)

Working Line (Primary)

Protection Line (Secondary)

1x2 Switch

1x2 Switch

1x2 Switch

1x2 Switch

Protection Switch Card

Protection Switch Card

Protection Line (Secondary)

Working Line (Primary)

2x2 Switch

2x2 Switch

2x2 Switch

2x2 Switch

Low

priority

tra c



Bi-directional (1:1) protection using bi-directional 2x2 switch



Uni-directional tap monitors designed to monitor the only the in-coming power to detect failure such as fiber cut



Designed to work for bi-directional communication using the same wavelength (duplex working) or different wave-

length (diplex working)



(1:1) point-to-point dedicated protection



1x2 optical latching switch is used as the switch to route the optical path



Photodiodes monitor the signals from both path



Signaling channel is needed to realize auto-revertive function



(1:1) point-to-point dedicated protection or O-BLSR ring protection



2x2 optical latching switch is used as the switch to route the optical path



Protection line is used for low priority traffic. Low priority traffic is interrupted during failure



Photodiodes monitor the signals from both path



External signaling channel is needed to trigger transmitter end switching and auto-reveritve function

(1:1) Protection using 1x2 switches

(1:1) Protection using 2x2 switches

Bi-directional (1:1) Protection
